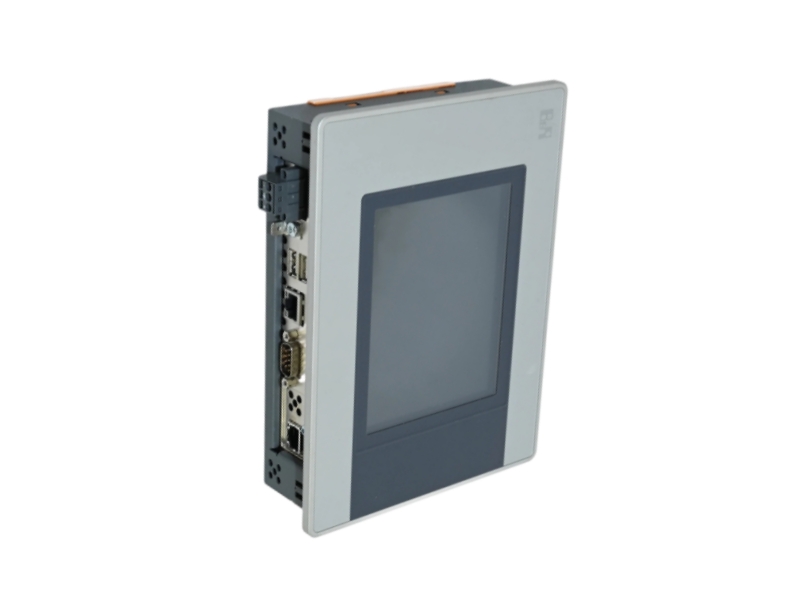

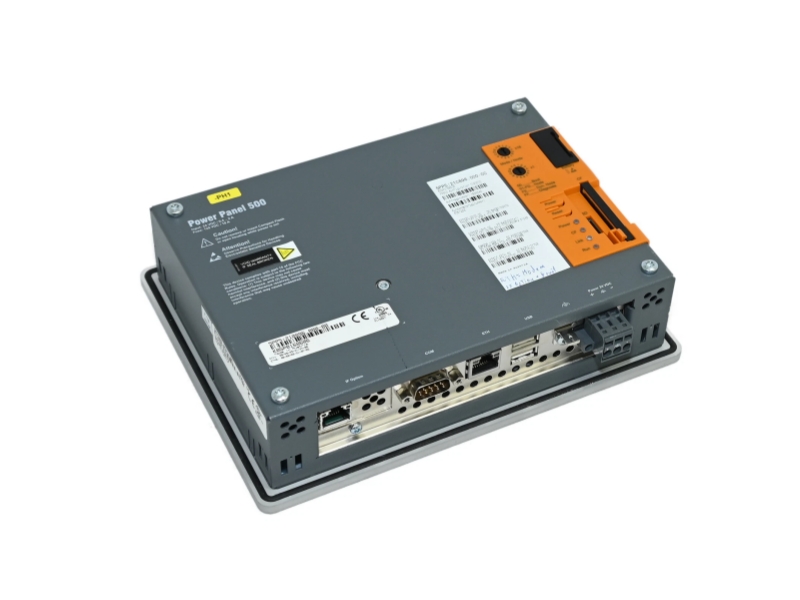

Name: B&R 5PP520.0573-00 5.7-inch Power Panel 520
Availability: InStock

B&R 5PP520.0573-00 5.7-inch Power Panel 520

B&R / POWER PANELPP520 SYSTEM UNIT

5.7-INCH VGA TOUCH PANEL

5PP520.0573-00

B&R 5PP520.0573-00 is a fanless Power Panel 520 system unit with a 5.7-inch VGA resistive touchscreen, Ethernet, RS232, USB and expandable CPU/interface hardware.

ORDERING NOTEConfirm the complete panel number, CPU board, DDR2 memory, interface board, storage media, 24 VDC connector, cabinet cutout and operating-system image before replacement.

Brand New Original Fast Delivery Worldwide Shipping

INQUIRE NOW

OFFICIAL PANEL DATA

5PP520.0573-00 display, interface and mechanical profile

Official B&R HMI characteristics arranged for panel cutout, electrical and connectivity review.

DISPLAY & INTERFACES

POWER & MECHANICAL

Display typeTFT color

Nominal supply24 VDC ±25%, SELV

Screen diagonal5.7 inches (144 mm)

Nominal current1 A

ResolutionVGA, 640 x 480 pixels

Power consumption23 W with CPU board and without interface board

Color depth262,144 colors

CoolingFanless

Contrast ratio850:1

Maximum memory2 GB DDR2 SDRAM

Touch technologyAnalog resistive

ProtectionFront IP65; rear IP20 under specified conditions

Touch controllerB&R serial, 12-bit

Operating temperature0 to 55°C

Backlight brightnessTyp. 20 to 400 cd/m², dimmable

Panel width212 mm

Backlight half-brightness50,000 h

Panel height156 mm

COM1 interfaceRS232, 9-pin male DSUB, 115 kbit/s maximum

Installation depth55 mm

USB connectivity2x USB 2.0 Type A; max. 1 A per port

Weight1287 g

Ethernet interface1x shielded RJ45, 10/100/1000 Mbit/s

Housing constructionGalvanized plate with anodized aluminum frame

USE 01

Present machine graphics

The 5.7-inch VGA TFT displays operator screens within the documented viewing and brightness range.

USE 02

Accept touch commands

The analog resistive surface and serial touch controller convert local operator input for the HMI application.

USE 03

Host the control image

The selected CPU board and DDR2 memory execute the installed B&R software and visualization project.

USE 04

Store runtime data

CompactFlash and SD card slots support the storage arrangement defined for the machine.

USE 05

Connect service devices

RS232, USB and Gigabit Ethernet interfaces provide local and network access for commissioning and operation.

USE 06

Seal the panel front

The IP65 front and flat gasket support installation in a correctly prepared control-panel cutout.

HMI REPLACEMENT DECISIONS

B&R 5PP520.0573-00 panel integration FAQ

Clear purchasing guidance for maintaining legacy Power Panel installations.

What display assembly is built into B&R 5PP520.0573-00?

It uses a 5.7-inch 640 x 480 TFT color display with an analog resistive touchscreen and a front protection rating of IP65.

Which internal options must be matched for B&R 5PP520.0573-00?

Match the separately selected CPU board, DDR2 SO-DIMM, interface board, CompactFlash or SD media and 24 VDC terminal connector.

Which machine functions can B&R 5PP520.0573-00 combine?

With the required CPU and software, the panel can provide local HMI operation together with serial, USB and Ethernet communication.

How is B&R 5PP520.0573-00 availability quoted?

The official product page and Power Panel 500 resources remain available; quotation confirms the complete assembled configuration, condition and delivery date.

What dimensional checks matter when replacing B&R 5PP520.0573-00?

Verify the 212 x 156 x 55 mm unit envelope, panel cutout, gasket, rear clearance, connector access and the installed CPU/interface hardware.

Which files and photos should accompany a B&R 5PP520.0573-00 inquiry?

Request the Power Panel 500 User's Manual and send front and rear labels, CPU and memory details, storage image, interface-board label, cutout data, quantity and destination.
