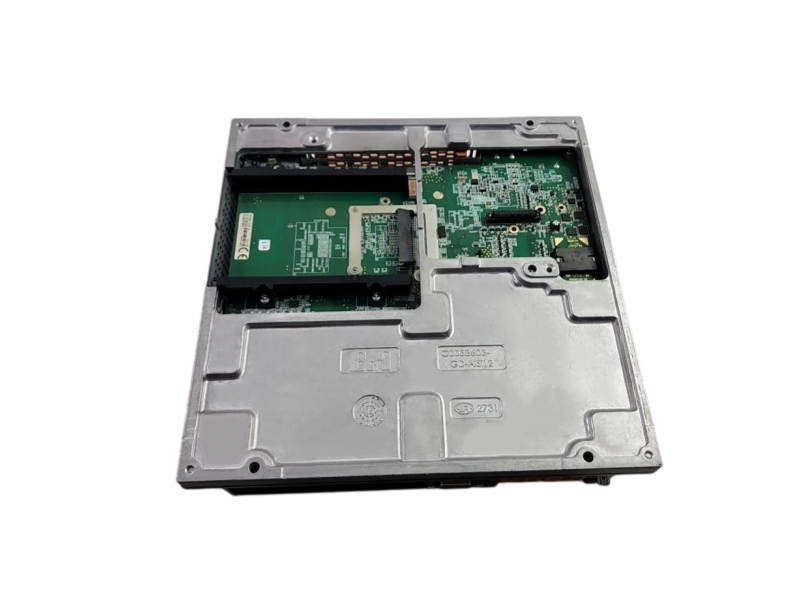

B&R 5PC901.TS77-10 Panel PC 900 CPU Board view 1

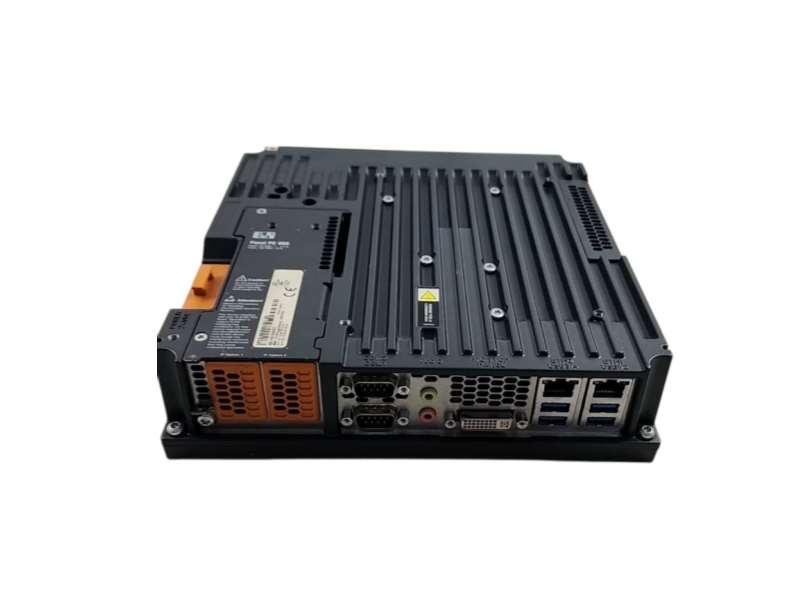

B&R 5PC901.TS77-10 Panel PC 900 CPU Board view 2
B&R 5PC901.TS77-10 Panel PC 900 CPU Board view 3

B&R 5PC901.TS77-10 Panel PC 900 CPU Board

B&R · PANEL PC 900
COMPUTE BOARD PROFILE / TS77CELERON DUAL CORE
HM76 PANEL PC PROCESSING

5PC901.TS77-10

B&R 5PC901.TS77-10 is a Panel PC 900 CPU board with a dual-core Intel Celeron 1047UE, HM76 chipset and expandable DDR3 memory.

1.4 GHZ2 CORESDDR3
PLATFORM NOTEMatch the CPU board, Panel PC unit and memory
DISPLAY UNITCPU BOARDSTORAGE
VERIFY BEFORE ORDERConfirm system unit, memory, cooling and BIOS generation
Brand New OriginalOne Year WarrantyFast DeliveryINQUIRE NOW
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer B&R
Item number 5PC901.TS77-10
Country of Origin Austria
Lead Time 2-3 DAYS
After-Sales Support One Year Warranty
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
ENGINEERING DOSSIER

CPU, memory and interface data

Official B&R values grouped for Panel PC performance, integration and replacement planning.

PROCESSOR & MEMORY
ProcessorIntel Celeron 1047UE
Clock frequency1400 MHz
Processor coresDual-core
Process technology22 nm
Intel Smart Cache2 MB
External busDMI, 5 GT/s
Intel 6464-bit capable
Intel VT-xVirtualization available
Intel SpeedStepDynamic frequency control
ChipsetIntel HM76
Memory channelsDual-channel
Memory typeDDR3
GRAPHICS & INTERFACES
Maximum memory16 GB
Memory bandwidth25.6 GB/s maximum
Graphics controllerIntel HD Graphics 2500
Graphics frequency900 MHz maximum
DVI resolutionUp to 1920 × 1200
RGB resolutionUp to 2048 × 1536 at 75 Hz
Mass storage3 × SATA
CFast slot1 × SATA III
Serial interfaces2 × RS232
Serial baud rate115 kbit/s maximum
CoolingPassive heat sink
B&R ID code0xE1AD
02
FUNCTION MAP

How 5PC901.TS77-10 forms the Panel PC compute layer

The board coordinates processor, memory, graphics, storage and service interfaces inside the system unit.

DISPLAY → COMPUTE → MACHINE5PC901.TS77-10Run the HMI
process application data
connect storage and I/O
1Industrial HMI computing

Run the operating environment and visualization software of a compatible Panel PC 900.

2Machine supervision

Process operator commands, status data and local service tools in the installed machine panel.

3Multi-display service

Drive the supported digital or analog display path defined by the complete Panel PC assembly.

4Local data storage

Connect the approved SATA or CFast media used by the system image and application.

5Serial equipment support

Maintain communication with legacy service or machine devices attached to the established ports.

6Field replacement

Restore the compute layer after recording memory, storage, BIOS, drivers and system-unit cooling.

03
BUYER QUESTIONS

FAQ for 5PC901.TS77-10 selection and replacement

Make confident purchasing decisions with clear, product-focused answers.

01
Is B&R 5PC901.TS77-10 a complete Panel PC or only the CPU board?

B&R 5PC901.TS77-10 is the CPU board for Panel PC 900. A compatible system unit, main memory, storage, display assembly and any required interface options are separate parts of the finished Panel PC.

02
Which memory modules are mandatory for B&R 5PC901.TS77-10?

B&R lists compatible 5MMDDR DDR3 SO-DIMM modules in 1 GB, 2 GB, 4 GB and 8 GB capacities. Confirm the installed memory population and operating-system requirements before ordering a replacement board.

03
What system-unit compatibility must be checked for B&R 5PC901.TS77-10?

Verify that the target Panel PC 900 system unit lists this CPU board, then compare cooling arrangement, display assembly, memory, storage, interface options and firmware. The board is not intended as a generic PC motherboard.

04
Where does B&R 5PC901.TS77-10 fit inside a Panel PC 900 installation?

The board provides the compute platform for compatible Panel PC 900 operator and machine-control installations, including local visualization, data handling, storage access and legacy serial communication.

05
Is B&R 5PC901.TS77-10 discontinued, and is a faster TS77 board a direct replacement?

B&R maintains the official record, BIOS, drivers and Panel PC 900 documentation without a product-page discontinuation notice. Other TS77 processor variants are not automatically drop-in replacements because cooling, software image and performance qualification can differ.

06
Which CPU-board identifiers are needed to quote B&R 5PC901.TS77-10 accurately?

Send the CPU-board label, Panel PC system-unit number, display unit, memory modules, CFast or SATA device, BIOS version, operating system, required quantity, condition requirement and destination.
