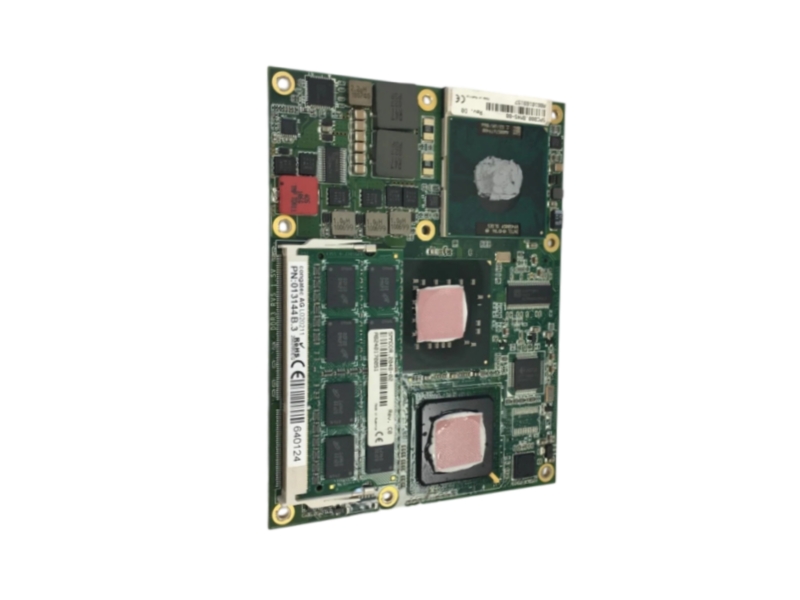

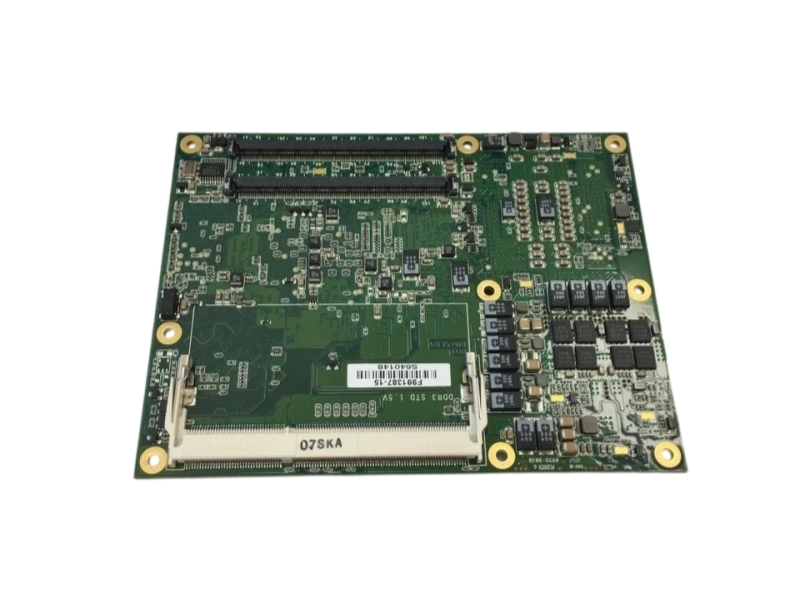

Name: B&R 5PC800.BM45-00 Intel Core 2 Duo CPU Board
Availability: InStock

VERIFIED PRODUCT DATA

Product specifications

Official B&R processor, memory, graphics, chipset, storage and firmware data for 5PC800.BM45-00.

PARAMETEROFFICIAL VALUEPARAMETEROFFICIAL VALUE

ProcessorIntel Core 2 Duo T9400Graphics controllerIntel GMA 4500MHD

Clock frequency2530 MHzGraphics memoryUp to 384 MB

Processor cores2Color depth32-bit max.

Process architecture45 nmDVI path2 Intel-compatible SDVO ports

L1 cache32 kBRGB output300 MHz RAMDAC

L2 cache6 MBMaximum RGB resolution2048 x 1536 at 70 Hz

External bus1066 MHzBootloaderEmbedded AMI BIOS

Intel 64 architectureIntel 64 enabledNorthbridge chipsetIntel GM45

Intel VT-xHardware virtualization enabledSouthbridgeIntel 82801 ICH9M-E

Enhanced SpeedStepDynamic performance scaling enabledMass-storage interfaces4 SATA

Instruction extensionsSSE, SSE2 and SSE3Power managementACPI 3.0 with battery support

Memory technologyDDR3RTC accuracy at 25°CTypical 12 ppm

Memory sockets2 SO-DIMM slotsRTC backupBattery-backed

Maximum memory8 GBRequired memory module5MMDDR.2048-02 or 5MMDDR.4096-02

B&R does not publish standalone shipping dimensions or weight on the product page; those fields remain blank.

02FUNCTION
& APPLICATION

Industrial PC upgrade map

Treat the board as part of a validated host assembly with matching cooling, memory, BIOS and display hardware.

01 / INVENTORY

Identify the full PC build

Record the APC or PPC system-unit number, cooling assembly, installed memory, storage and expansion hardware before removing the CPU board.

02 / BIOS

Align firmware and settings

Use the B&R GM45 BIOS package intended for the board and preserve validated boot, display, storage and power-management settings.

03 / RECOMMISSION

Restore the machine image

Reinstall or restore the approved operating-system image, device drivers and application while checking the real-time clock and field interfaces.

PROJECT PLANNING CHECKPOINTS

HOST

Verify the exact APC810 or PPC800 system-unit compatibility list.

COOLER

Use the heat sink or fan assembly specified for the processor option.

MEMORY

Install supported B&R DDR3 SO-DIMM modules in a validated capacity.


Back up storage and licensing before board exchange or BIOS update.

SYSTEM NOTE

The board remains documented by B&R, but successful replacement depends on the complete industrial-PC assembly and software image.

TECHNICAL & ORDER SUPPORT

Product FAQ & Buying Guide

Find practical answers for purchasing, compatibility, documentation and replacement planning.

Which processor architecture is built into B&R 5PC800.BM45-00?

The board uses the specified Intel Core 2 Duo T9400 platform with 64-bit support, virtualization capability and the GM45 mobile chipset architecture.

What memory should be paired with B&R 5PC800.BM45-00?

Use the B&R-listed PC3-8500 SO-DIMM modules and verify the host manual's population rules before changing the installed capacity.

In which industrial computers is B&R 5PC800.BM45-00 normally installed?

B&R documents the board for compatible Automation PC 810 and Panel PC 800 systems that provide the required cooling, power and mechanical carrier.

How should the condition of a replacement B&R 5PC800.BM45-00 be assessed?

Ask for clear connector and board photos, BIOS power-up evidence and memory-test results, while confirming whether heat sink, RAM and storage are included.

What can go wrong if B&R 5PC800.BM45-00 is exchanged without checking the BIOS?

Display initialization, storage detection, interrupt routing, resume behavior or boot timing can differ, so the approved BIOS and saved setup values must be restored deliberately.

Which information makes a B&R 5PC800.BM45-00 quotation technically complete?

Send the complete host-PC label, current board revision, BIOS screen, cooling part, memory and storage details, fault symptoms, quantity and delivery address.
