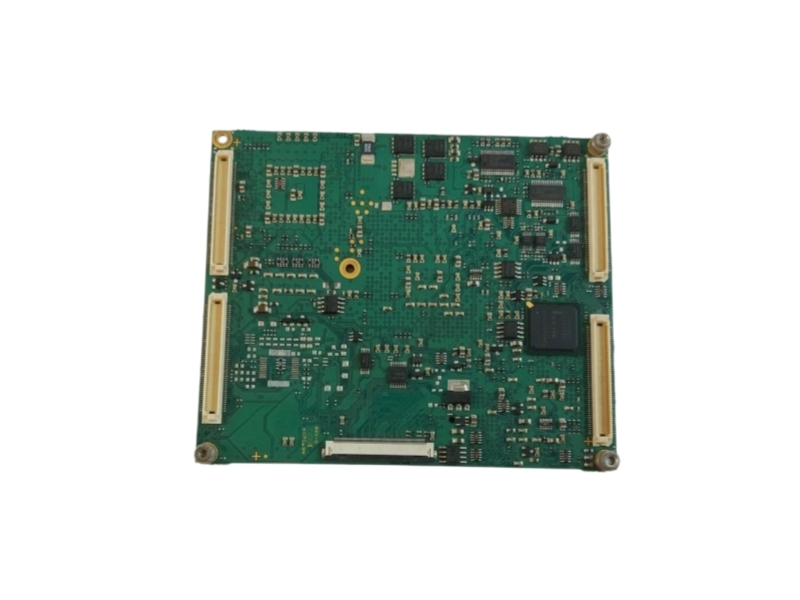

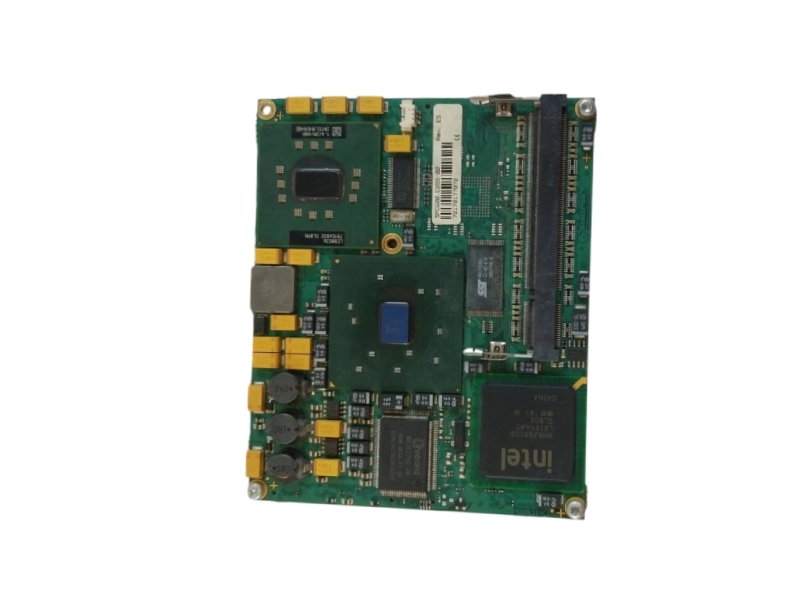

Name: B&R 5PC600.E855-02 Intel Pentium M CPU Board
Availability: InStock

B&R 5PC600.E855-02 Intel Pentium M CPU Board

B&R / INDUSTRIAL PCAPC600 PROCESSOR BOARD

PENTIUM M / 855GME PLATFORM

5PC600.E855-02

B&R 5PC600.E855-02 is an Automation PC CPU board built around a 1.4 GHz Intel Pentium M processor, the 855GME chipset and a single DDR memory socket.

ORDERING NOTEConfirm the complete APC600 system, CPU-board label, installed SO-DIMM, heat sink, BIOS revision, storage connections and connector condition before exchanging the board.

Brand New Original Fast Delivery Worldwide Shipping

INQUIRE NOW

OFFICIAL CONTROLLER DATA

5PC600.E855-02 processor, memory and graphics profile

B&R board-level characteristics organized for legacy industrial PC identification and replacement review.

PROCESSOR & MEMORY

GRAPHICS & PLATFORM

Processor typeIntel Pentium M

Real-time clock accuracyAt 25°C: typ. 12 ppm (1 second per day)

Clock frequency1400 MHz

Clock retentionBattery-backed

Processor architecture90 nm

RGB output350 MHz RAMDAC; up to 2048 x 1536 at 60 Hz

L1 cache32 kB

GE1 display link2x 112 MHz LVDS transmitter; 640 x 480 to 1600 x 1200

L2 cache2 MB

GE2 digital videoIntel-compliant DVO 2.0 port, 12-bit DDR

External bus400 MHz

Graphics controllerIntel Extreme Graphics 2 integrated in chipset

Expanded command setMMX technology, Streaming SIMD Extension 2

Shared graphics memoryUp to 64 MB

Floating point unitSupported

Maximum color depth32-bit

Memory technologyDDRAM

BootloaderPhoenix BIOS

Maximum memory size1 GB

Mass memory management2 IDE ports, UDMA 100

USE 01

Execute machine software

The 1.4 GHz processor provides the central computing resource for the installed industrial PC application.

USE 02

Coordinate core logic

The 855GME and ICH4 chipset pair manages processor, memory, graphics and peripheral traffic on the board.

USE 03

Accept modular memory

One DDR socket supports the approved SO-DIMM capacity required by the target installation.

USE 04

Drive local displays

Integrated RGB, LVDS and DVO paths cover the display connections documented for the platform.

USE 05

Manage legacy storage

Two UDMA 100 IDE ports connect the mass-storage devices used by the original APC600 configuration.

USE 06

Preserve timed operation

A battery-backed real-time clock maintains system time when the PC is not operating.

LEGACY BOARD DECISIONS

B&R 5PC600.E855-02 buyer FAQ

Practical guidance for confident legacy APC600 board purchasing decisions.

Which processor configuration identifies B&R 5PC600.E855-02?

The official B&R record identifies a 1.4 GHz Intel Pentium M CPU board using the 855GME chipset and one DDR memory socket.

Which memory parts belong with B&R 5PC600.E855-02?

B&R lists 256 MB, 512 MB and 1024 MB PC2700 SO-DIMM modules for this board; the installed capacity and module condition should be checked before ordering.

What machine role does B&R 5PC600.E855-02 perform?

It supplies the processor, chipset, graphics and storage-control functions for the compatible B&R industrial PC assembly.

Can B&R 5PC600.E855-02 still be quoted for a legacy repair?

Yes. B&R retains the official product record and BIOS information, while actual stock, hardware revision and condition are verified during quotation.

What evidence is needed to replace B&R 5PC600.E855-02 safely?

Provide the complete PC label, CPU-board label, installed memory, heat-sink arrangement, storage type, BIOS version and clear connector photos so the replacement can be matched.

Which documents should accompany a B&R 5PC600.E855-02 inquiry?

Ask for the official product data and 855GME BIOS upgrade information, and include quantity, required condition, destination and any machine downtime deadline.
