Name: B&R 5LS189.6 POWERLINK and X2X Link PCI Logic Scanner Module
Availability: InStock

B&R 5LS189.6 POWERLINK and X2X Link PCI Logic Scanner Module

B&R / POWERLINK

REAL-TIME NETWORK COORDINATION

PCI LOGIC SCANNER

INDUSTRIAL PC NETWORK / X2X LINK

5LS189.6

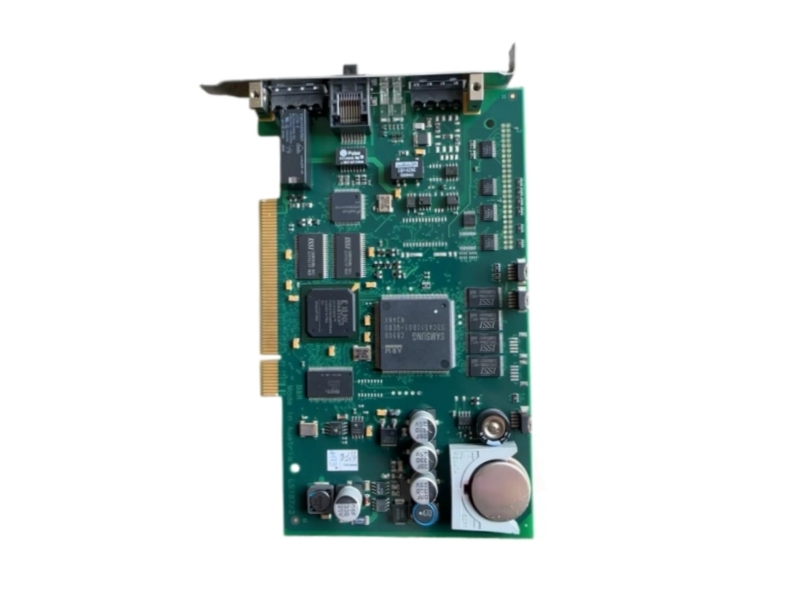

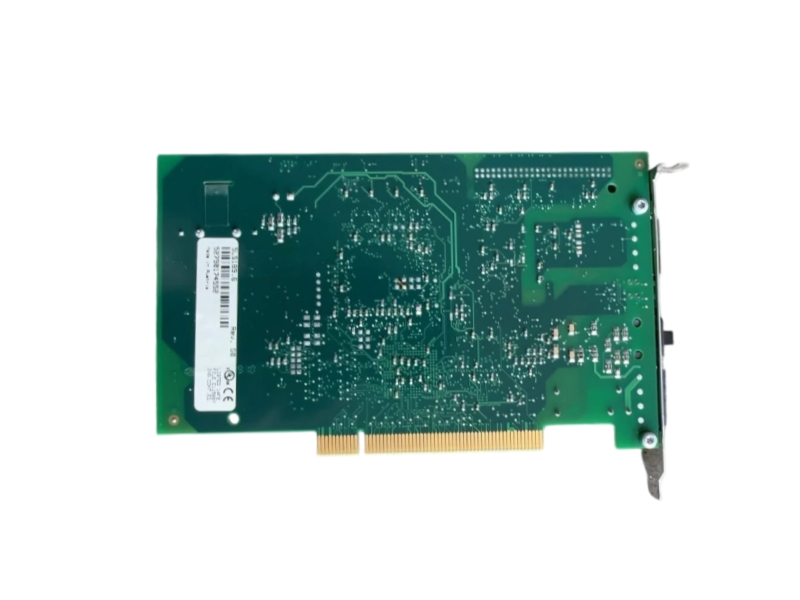

B&R 5LS189.6 is a PCI half-size logic scanner that links a compatible industrial PC to POWERLINK and X2X Link networks.

MATCH BEFORE ORDERING Confirm host PCI compatibility, node role, POWERLINK generation, X2X topology, Automation Runtime and two required TB704 terminal blocks before ordering.

NETWORK ROLE Managing / controlled node

FIELD INTERFACES POWERLINK + X2X Link

REMANENT MEMORY 1 MB battery-backed SRAM

Brand New Original One Year Warranty Rapid response

INQUIRE NOW

OFFICIAL NETWORK DATA

5LS189.6 interface, memory and host-installation profile

B&R communication, electrical, environmental and accessory data for PCI-based real-time network integration.

NETWORK & CONTROLLERA / 10

01Module formatStandard PCI half-size, Plug & Play

02POWERLINK roleManaging or controlled node

03IF1 functionX2X Link master

04IF1 connector4-pin male multipoint

05IF2 fieldbusEthernet POWERLINK

06IF2 network standard100BASE-T per ANSI/IEEE 802.3

07IF2 connectorShielded RJ45

08Segment length100 m maximum between stations

09Transfer rate100 Mbit/s

10Controller memory1 MB battery-backed SRAM

HOST & OPERATING LIMITSB / 10

11Ready relayNO and NC contacts, maximum 30 VDC / 10 A

12Bus diagnosticsPOWERLINK status by LED and software

13Data-transfer diagnosticsX2X Link status by software

14Interface isolationIF1 isolated from IF2 and PC

15Power consumption4.0 W

16Installed protectionIP20

17Operating temperature0 to 55°C

18Storage temperature-25 to 70°C

19Operating humidity0 to 95%

20Required terminalsTwo 0TB704.91 or 0TB704.9 blocks

FROM PC RUNTIME TO FIELDBUS

How 5LS189.6 coordinates POWERLINK and X2X Link data

The module bridges host runtime execution, deterministic Ethernet exchange and local X2X I/O communication.

01PC RUNTIME

02LOGIC SCANNER

03POWERLINK STATION

04X2X I/O

FUNCTION 01

Join the industrial PC to the network

The PCI module gives a compatible host direct access to deterministic field communication.

FUNCTION 02

Select the station responsibility

Project configuration determines whether the installed card manages network timing or follows another manager.

FUNCTION 03

Coordinate local distributed I/O

The separate X2X master path connects supported B&R I/O devices to the runtime data image.

FUNCTION 04

Retain selected runtime information

Battery-supported memory keeps configured process variables and data objects available across power cycles.

FUNCTION 05

Expose network condition locally

Status indications and software diagnostics support commissioning and link troubleshooting.

FUNCTION 06

Signal host readiness

The relay contact can be incorporated into the machine's readiness or supervision logic where documented.

BUYER REFERENCE

B&R 5LS189.6 buyer FAQ

Practical guidance for confident selection, replacement and purchasing decisions.

Which node-role decision is required for B&R 5LS189.6 commissioning?

Define whether the card will control POWERLINK timing or join as a controlled station, then match that choice in the Automation Runtime and network configuration.

Which host platforms are listed for B&R 5LS189.6?

B&R lists APC6xx systems, B&R Panel PCs and compatible desktop PCs; the exact PCI slot, BIOS and runtime support must be verified for the installed host.

How is B&R 5LS189.6 used in a combined machine network?

It links an industrial PC runtime to a POWERLINK segment while providing a separate master path for supported X2X devices and local I/O.

Is B&R 5LS189.6 still available for a spare-parts inquiry?

The official page remains available and does not state a product phase-out. Supply, hardware revision and condition are confirmed against the requested quantity.

Can B&R 5LS189.6-1 replace B&R 5LS189.6 without engineering review?

No automatic interchange should be assumed. Compare the complete suffix, POWERLINK version, firmware package, runtime support, PCI behavior, terminal wiring and project configuration.

What should be included in a B&R 5LS189.6 manual and quotation request?

Send the card label, host-system material number, Automation Runtime and Studio versions, node role, X2X layout, required condition, quantity and destination.
