Name: B&R 5DLSDL.1000-00 Automation Panel 900 SDL Receiver
Availability: InStock

B&R 5DLSDL.1000-00 Automation Panel 900 SDL Receiver

REMOTE OPERATOR-PANEL LINKSDL INPUT

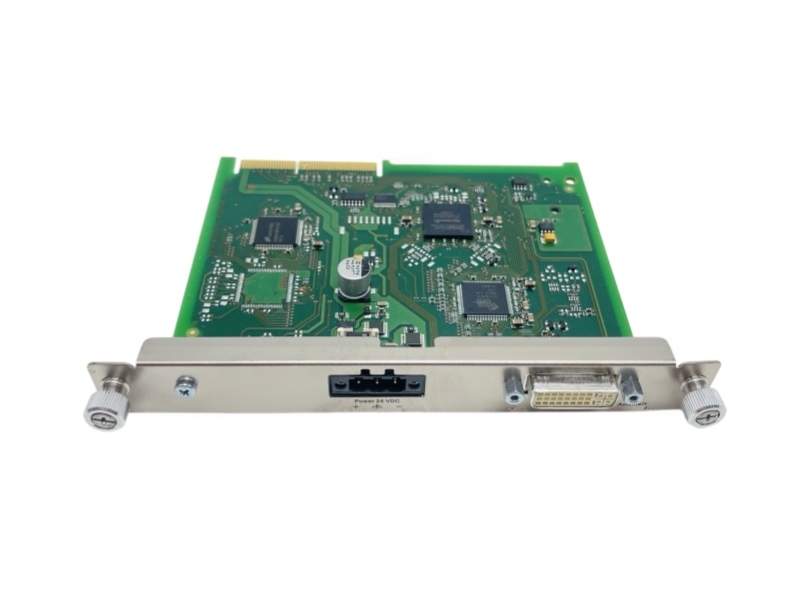

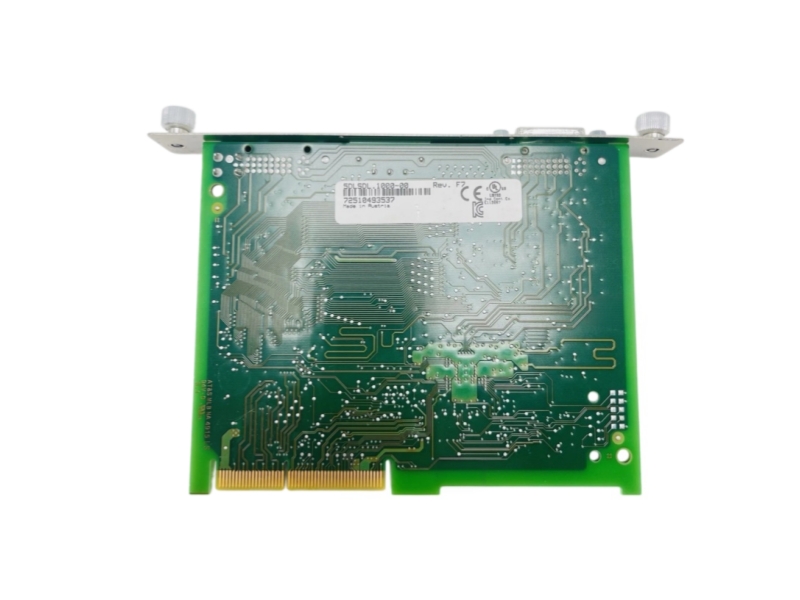

B&R 5DLSDL.1000-00 is the SDL receiver used in Automation Panel 900 devices. One SDL connection carries display, touch, key, LED and service information between the panel and the machine computer.

MATCH BEFORE ORDERINGMatch the Automation Panel 900 configuration, SDL transmitter, cable length, power wiring and required terminal block before ordering.

PANEL DISTANCEUp to 40 m

POWER INPUT24 VDC ±25%

INTEGRATED BUSUSB 1.1

Brand New Original One Year Warranty

INQUIRE NOW

OFFICIAL SDL DATA

5DLSDL.1000-00 panel-link and supply parameters

Signal transport, electrical supply and installation constraints are arranged for fast operator-panel compatibility review.

SDL INTERFACE

Panel familyAutomation Panel 900

Interface roleSDL receiver

Panel inputSDL IN

Panel outputNone

Maximum panel distance40 m

Integrated peripheral linkUSB 1.1

SDL payloadDisplay, touch, matrix key, LED and service data

DNV temperature classA (0 to 45°C)

DNV humidity classB (up to 100%)

DNV vibration classA (0.7 g)

POWER & INSTALLATION

Nominal supply24 VDC ±25%

Maximum input current4.2 A

Typical power consumption3 W

Overvoltage categoryII

Power screws2

Maximum screw torque0.5 Nm

Brightness adjusterNo

Device ID0x1C53

CE conformityYes

UL recognitioncULus E115267

PANEL DATA TRANSPORT

How 5DLSDL.1000-00 links an Automation Panel 900

A remote computer sends visual and operator information through one SDL path to the panel-side receiver and local interfaces.

01Generate display stream

02Transmit over SDL cable

03Decode at panel

04Serve local operator I/O

FUNCTION 01

Receive the video stream

The panel-side electronics recover display information arriving from the connected SDL transmitter.

FUNCTION 02

Return touch actions

Operator touch data travels back through the same coordinated link to the machine computer.

FUNCTION 03

Carry key and LED states

Matrix-key inputs and indicator information share the consolidated panel connection.

FUNCTION 04

Provide service communication

Integrated service data supports setup and maintenance without a separate signal cable for every panel function.

FUNCTION 05

Extend the operator station

The allowed cable reach lets the HMI be positioned away from the industrial computer within the published distance.

FUNCTION 06

Consolidate cabinet cabling

A single combined data path simplifies routing compared with independent display and operator-interface leads.

LINK COMMISSIONINGConfirm both SDL endpoints, use the approved cable family and validate touch, display and USB behavior after installation.

BUYER GUIDANCE

B&R 5DLSDL.1000-00 buyer FAQ

The FAQ addresses panel generation, cable architecture, required connectors, replacement checks and documentation requests.

Where is B&R 5DLSDL.1000-00 used?

B&R states that the 5DLSDL.1000-00 receiver is used in Automation Panel 900 devices as the panel-side SDL interface.

Which signals pass through B&R 5DLSDL.1000-00?

The SDL link carries display, touch, matrix-key, LED and service data, with USB 1.1 integrated into the panel connection.

Can B&R 5DLSDL.1000-00 be used beyond the published SDL cable reach?

No. Design within the official maximum panel distance and use an approved SDL cable for the selected transmitter and panel.

Which connector must be ordered for B&R 5DLSDL.1000-00?

The official data lists 0TB103.91 or 0TB103.9 as the mandatory terminal connector; confirm whether it is included in the quotation.

What should be checked before replacing B&R 5DLSDL.1000-00?

Record the Automation Panel model, SDL source, cable code, supply wiring and module label, then test video, touch and peripheral communication.

Can the B&R 5DLSDL.1000-00 datasheet accompany an international quote?

Yes. Request the model-specific official documentation and provide quantity, panel configuration and destination for the quotation.
