Name: B&R 5CFCRD.0512-06 512 MB SLC CompactFlash Card
Availability: InStock

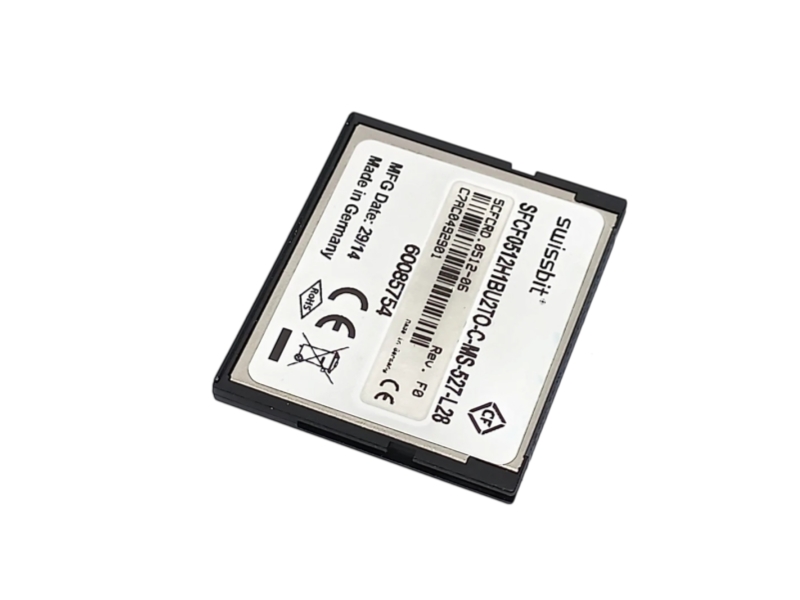

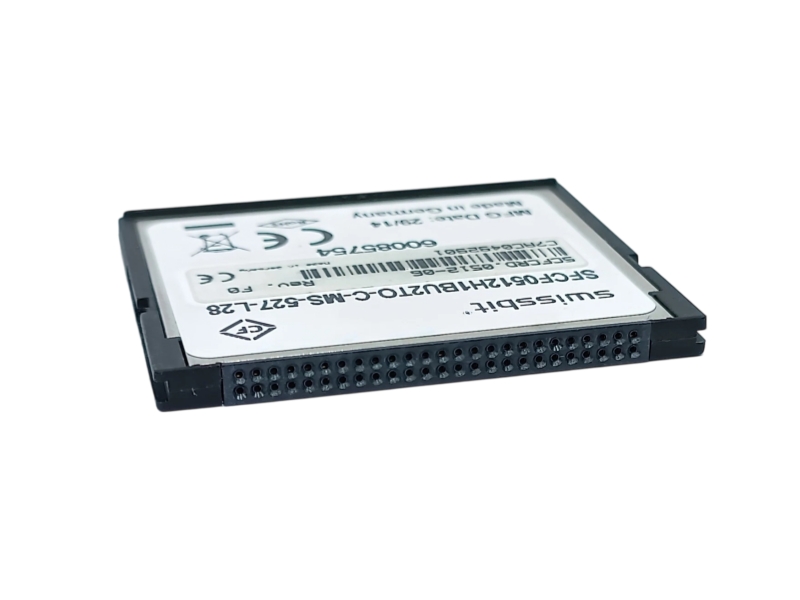

B&R 5CFCRD.0512-06 512 MB SLC CompactFlash Card

B&R INDUSTRIAL STORAGEOFFICIAL DATA

5CFCRD.0512-06

B&R 5CFCRD.0512-06 is a 512 MB industrial SLC CompactFlash card for supported B&R panel and Automation PC platforms, with endurance monitoring and ATA operating modes.

Brand New OriginalOne Year WarrantyFast Delivery

SLC MEDIA / 512 MB

Industrial storage for validated B&R systems

512 MBCAPACITY

SLCFLASH

50 TBDATA VOLUME

10 gWEIGHT

SUPPORTED HARDWAREPP / PPC / APC platforms listed by B&R

PRODUCT ENQUIRYInquire Nowab@mooreplc.com

OFFICIAL STORAGE DATA

Media, endurance & environment

Verified B&R capacity, transfer, reliability, endurance, environmental and mechanical data.

Capacity512 MB

Flash technologySLC

Data retention10 years

Data reliability<1 unrecoverable error per 10^14 bits read

Lifetime monitoringYes

MTBF>3,000,000 hours at 25°C

Supported transfer modesPIO 0-6; Multiword DMA 0-4; Ultra DMA 0-4

Sequential read50 MB/s typical; 53 MB/s maximum

Sequential write25 MB/s typical; 27 MB/s maximum

Guaranteed data volume50 TB

Five-year write workload27.40 GB/day

Guaranteed erase/write cycles100,000

Wear levelingStatic

Error correction codingYes

S.M.A.R.T. supportYes

Operating temperature0 to 70°C

Storage / transport temperature-50 to 100°C

Operating elevationMaximum 4,572 m

Dimensions42.8 × 36.4 × 3.3 mm

Weight10 g

Official dimensions and weight are shown only where the reviewed manufacturer material explicitly states them.

DEPLOYMENT WORKFLOW

Storage migration & boot readiness

A practical path from image preparation to verified startup in an eligible B&R controller or industrial PC.

MEDIA DEPLOYMENT ROUTE

STAGE 01

Identify host

Confirm that the destination is one of the B&R hardware families covered by the official card data sheet.

STAGE 02

Protect the image

Create and verify a complete backup before removing or rewriting the installed system medium.

STAGE 03

Write the medium

Use the supported B&R software tool and retain the original partition and boot requirements.

STAGE 04

Validate startup

Boot the machine under controlled conditions and confirm application, licenses and retained data.

WHERE IT FITS

Industrial OS medium

Stores a validated embedded operating-system image for supported B&R hardware.

Application archive

Carries machine application and configuration data in serviceable CompactFlash form.

Field replacement

Restores an existing system when the capacity and platform requirements match the original installation.

MIGRATION CHECKPOINTS


Archive the working card before migration and verify the restored image after writing.

PLATFORM

Match the target B&R device and its supported operating system before installation.

POWER

Avoid uncontrolled shutdowns during write activity; B&R recommends UPS protection.

MIXING

Keep card technology consistent within the system to avoid startup-time conflicts.

BUYER DECISION SUPPORT

Common Questions From Sellers About 5CFCRD.0512-06

Buyer guidance for boot compatibility, media handling, lifecycle review, substitution and documentation.

Why can mixed CompactFlash brands create startup problems beside B&R 5CFCRD.0512-06?

B&R states that 5CFCRD.xxxx-06 cards and cards from other manufacturers must not be used together in one system because older and newer technologies can have different startup times.

What operating-system boundary applies when B&R 5CFCRD.0512-06 is used in a B&R device?

The official data sheet supports this card on B&R devices with Windows CE version 6.0 or later; the exact hardware and image combination still needs to be checked before deployment.

How should a machine image be transferred onto B&R 5CFCRD.0512-06 without risking the only working copy?

Create a verified backup of the original medium first, use the supported B&R imaging workflow, and test the new card under controlled startup conditions before returning the machine to service.

Has B&R issued an end-of-life notice specifically for B&R 5CFCRD.0512-06?

No model-specific discontinuation notice was located in the reviewed official data sheet. Availability, condition and current sourcing status should be confirmed at quotation.

May a larger 5CFCRD.xxxx-06 capacity replace B&R 5CFCRD.0512-06 without further checks?

B&R lists larger capacities in the same card family, but does not state that they are automatic drop-in replacements. Confirm device support, boot image, partitioning and software-tool compatibility first.

Which evidence should accompany a purchase request for B&R 5CFCRD.0512-06?

Send the host hardware model, current card label, operating system, required image service, quantity and destination; request the B&R CompactFlash data sheet with the quotation.
