B&R 5AP923.1906-00 Automation Panel 19-Inch SXGA Touch Display

B&R / AUTOMATION PANEL 9X319-INCH PANEL
CONTROL-CABINET DISPLAY

5AP923.1906-00

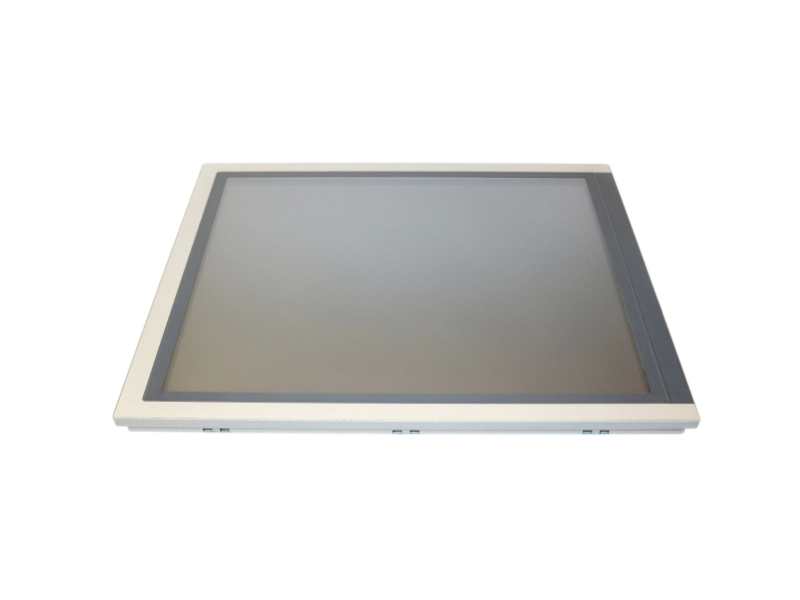

B&R 5AP923.1906-00 is a 19-inch landscape Automation Panel with SXGA resolution, analog resistive single-touch input and host support for documented Panel PC or link-module platforms.

BEFORE INSTALLATIONMatch the rear link module or system unit, cabinet cutout, gasket compression and front/rear protection boundaries before installation.
SELECTION CHECKVERIFY COMPLETE CONFIGURATION
Brand New OriginalFast DeliveryWorldwide Shipping
INQUIRE NOW
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer B&R
Item number 5AP923.1906-00
Country of Origin Austria
Lead Time 2-3 DAYS
After-Sales Support One Year Warranty
HS Code / Commodity code 853710
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
CONTROL DOSSIER

5AP923.1906-00 Display, Touch and Cabinet Data

Official B&R technical data for the exact 5AP923.1906-00 configuration.

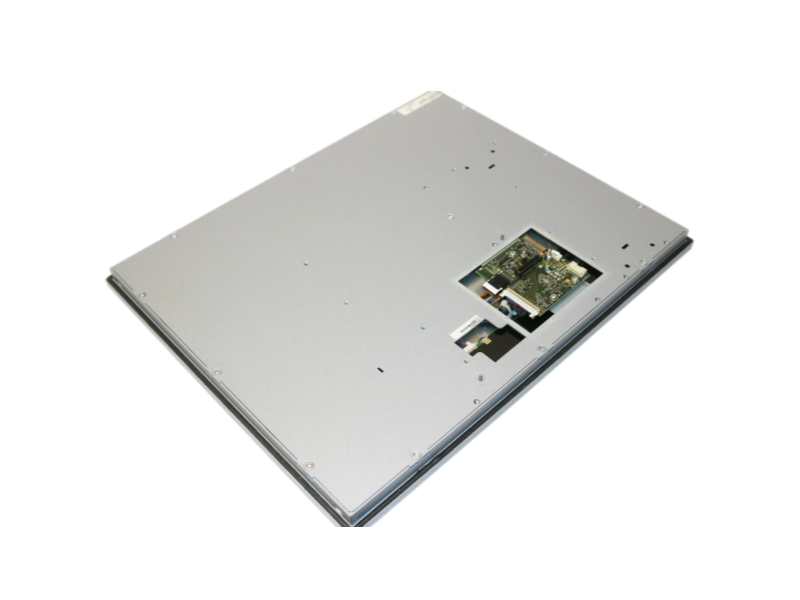

PANEL IDENTITYMatch the rear host interface

Confirm panel ID, link module or system unit, and cabinet cutout before exchange.

CABINET INTEGRATIONReview sealing and host depth

Approved Panel PC or link module
Official cutout and clamp pattern
Gasket contact surface
Rear clearance and cable routing

DISPLAY & TOUCH
ASPECT RATIO5:4
COLOR DEPTH16.7 million colors
PANEL FORMATLandscape
BACKLIGHTLED
BRIGHTNESS35 to 350 cd/m², dimmable
BACKLIGHT HALF-BRIGHTNESS70,000 h
CONTRAST1500:1
HORIZONTAL VIEWING85° left / 85° right
VERTICAL VIEWING85° up / 85° down
TOUCH CONTROLLERB&R serial, 12-bit
TOUCH TRANSMITTANCE81% ±3%
ENCLOSURE & MOUNTING
FRONT PROTECTIONIP65
REAR PROTECTIONIP20 with host or link module installed
UL FRONT RATINGType 4X, indoor use only
POLLUTION DEGREE2 per EN 61131-2
OVERLAY MATERIALPolyester
FRAMECoated aluminum
GASKET3 mm fixed gasket
FRONT COLORSRAL 9006 with RAL 7024 border
WIDTH440 mm
HEIGHT358 mm
APPROXIMATE WEIGHT5.8 kg
02
CONTROL DOSSIER

5AP923.1906-00 Becomes a B&R Operator Station

A selection-focused view of function, integration boundaries and practical application roles.

USE 01

Build a cabinet HMI

Install the landscape display in a control-cabinet door using the official cutout and clamp arrangement.

USE 02

Upgrade a Panel PC display

Pair the panel with a supported Panel PC system unit after confirming the interface generation.

USE 03

Create a remote operator station

Attach a compatible link module when the computing platform is located elsewhere in the machine.

USE 04

Operate with gloved contact

Use the resistive touch technology where pressure-based input is appropriate for the operator workflow.

USE 05

Present detailed process screens

Use the 1280 x 1024 workspace for trends, alarms and multi-pane machine visualization.

USE 06

Maintain a sealed front face

Preserve gasket compression and cabinet sealing to retain the documented front-side protection.

03
CONTROL DOSSIER

Common buyer questions about 5AP923.1906-00

Practical purchasing guidance for clearer, more confident decisions.

BUYER CHECKLISTSend the installed configuration

Complete label and revision
Base and power module
Required interfaces
Automation Studio version

01BUYER QUESTION

Which host platforms are listed for B&R 5AP923.1906-00?

B&R lists AP9x3, PPC900, PPC2100, PPC2200, PPC3x00 and compatible link-module configurations. Verify the exact system unit or link module and interface generation before ordering.

02BUYER QUESTION

What cabinet protection does B&R 5AP923.1906-00 provide?

The front is rated IP65 and UL Type 4X for indoor use. Rear IP20 applies only with a correctly installed link module or system unit, so enclosure design remains essential.

03BUYER QUESTION

How should the touch interface of B&R 5AP923.1906-00 be commissioned?

The panel uses an analog resistive surface with a B&R serial 12-bit controller. Calibrate the touch input in the supported host environment and verify corner accuracy after mechanical installation.

04BUYER QUESTION

Why is the gasket important when mounting B&R 5AP923.1906-00?

The fixed 3 mm gasket forms the front sealing boundary against the cabinet surface. Use the official cutout, keep the contact surface clean and tighten the mounting hardware evenly.

05BUYER QUESTION

Can B&R 5AP923.1906-00 replace another 19-inch Automation Panel directly?

Not solely by screen size. Compare resolution, aspect ratio, touch technology, panel outline, cutout, host or link interface, rear clearance and software configuration before replacement.

06BUYER QUESTION

What should be included in a B&R 5AP923.1906-00 quotation request?

Provide the panel and rear-module labels, installed host or link module, cabinet cutout, cable details, visualization platform, required condition, quantity and destination; reference the Automation Panel 9x3 manual.
