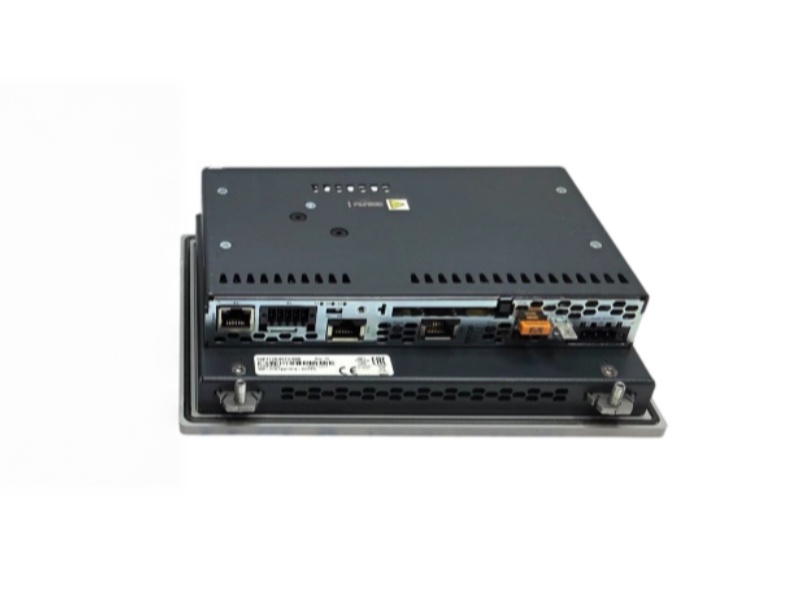

B&R 5AP1120.0573-000 front view

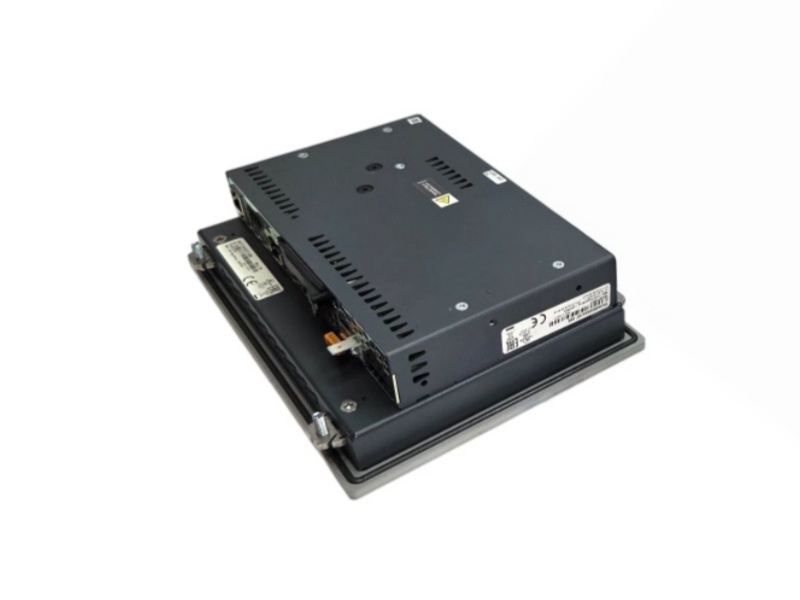

B&R 5AP1120.0573-000 alternate view
B&R 5AP1120.0573-000 product detail

B&R 5AP1120.0573-000 5.7-Inch VGA Single-Touch Automation Panel

COMPACT MACHINE INTERFACE
AUTOMATION PANEL5.7-INCH VGA

5AP1120.0573-000

B&R 5AP1120.0573-000 is a 5.7-inch VGA Automation Panel with resistive touch control for cabinet-mounted machine operation, process visualization and operator input.

PRODUCT ENQUIRY

Clear touch control in a compact panel cutout.

Inquire Nowab@mooreplc.com
Brand New Original
One Year Warranty
Worldwide Shipping
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer B&R
Item number 5AP1120.0573-000
Country of Origin Austria
Lead Time 2-3 DAYS
After-Sales Support One Year Warranty
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
OFFICIAL TECHNICAL DATA

Display, touch and mechanical specifications

Panel-specific values for visual performance, protection and cabinet integration.

B&R ID code0xE7AAFront protectionIP65
Display technologyTFT colorRear protectionIP20 with link module or system unit
Display diagonal5.7 inPanel dimensions212 × 156 mm
ResolutionVGA, 640 × 480 pixelsWeight1100 g
Aspect ratio4:3Compatible predecessor cutout5PP520.0573-00
Color depth262,144 colorsPollution degreeDegree 2 per EN 61131-2
Touch technologyAnalog resistiveUL 50 front ratingType 4X, indoor use only
Touch controllerB&R serial, 12-bitPanel overlay materialPolyester
Touch transmittance81% ±3%Light background colorRAL 9006
Brightness range22.5 to 450 cd/m², dimmableDark display-border colorRAL 7024
Contrast800:1Front frameNaturally anodized aluminum
BacklightLEDGasket3 mm fixed gasket
Half-brightness time50,000 hInstallation formatControl cabinet, landscape orientation
Horizontal viewing angle80° right / 80° leftIndustrial control certificationcULus E115267
Vertical viewing angle70° up / 70° downHazardous-location certificationcULus HazLoc E180196, Class I Division 2 Groups ABCD T4
02FUNCTION PATH

How 5AP1120.0573-000 presents machine operation

The panel combines a protected front surface, resistive input and a modular rear connection concept.

01

Display

The color screen presents machine states, alarms and operator controls in landscape format.

02

Touch

The resistive overlay accepts deliberate operator input, including gloved operation suited to many cabinets.

03

Link

A compatible Panel PC or link module supplies processing and communication behind the display assembly.

04

Seal

The front frame and fixed gasket form the protected cabinet-facing operator surface when correctly mounted.

MACHINE DASHBOARDSShow compact status, recipe and alarm pages at the equipment enclosure.
PANEL PC BUILDSPair the display assembly with the documented PPC2100 or PPC2200 system configuration.
CUTOUT MIGRATIONUse the stated installation compatibility when modernizing an older matching panel opening.
03BUYER QUESTIONS

FAQ for B&R 5AP1120.0573-000

Configuration and operating decisions
Replacement and compatibility checks
Documentation and quotation support

Direct answers for selection, integration, replacement and sourcing decisions.

Q01

Which computing modules can be paired with B&R 5AP1120.0573-000?

B&R lists AP1000, PPC2100 and PPC2200 system configurations or compatible link modules for this panel assembly.

Q02

Does B&R 5AP1120.0573-000 use projected-capacitive multi-touch?

No. The official technical data specifies a single-touch analog-resistive overlay controlled through a B&R serial interface.

Q03

Can B&R 5AP1120.0573-000 reuse the opening of 5PP520.0573-00?

B&R explicitly states installation compatibility with 5PP520.0573-00, but the rear system unit, cabling and application should still be checked.

Q04

Where is the front protection rating of B&R 5AP1120.0573-000 applicable?

The stated front protection applies to a correctly installed cabinet panel; the rear reaches its documented rating only with the required link module or system unit installed.

Q05

Has B&R announced a direct replacement for B&R 5AP1120.0573-000?

The reviewed product page does not name a direct successor. Match the display size, cutout, touch technology and rear computing configuration before selecting another panel.

Q06

What details are needed for a B&R 5AP1120.0573-000 documentation and price request?

Provide front and rear label photos, installed Panel PC or link module, cutout details, quantity, delivery country and required date.
