Name: B&R 5ACPCI.RAIC-06 SATA RAID Controller with Dual 500 GB Drives
Availability: InStock

B&R 5ACPCI.RAIC-06 SATA RAID Controller with Dual 500 GB Drives

B&R / INDUSTRIAL PC

REDUNDANT STORAGE CONTROL

SATA RAID 0 / 1

PCI STORAGE / 24-HOUR DUTY

5ACPCI.RAIC-06

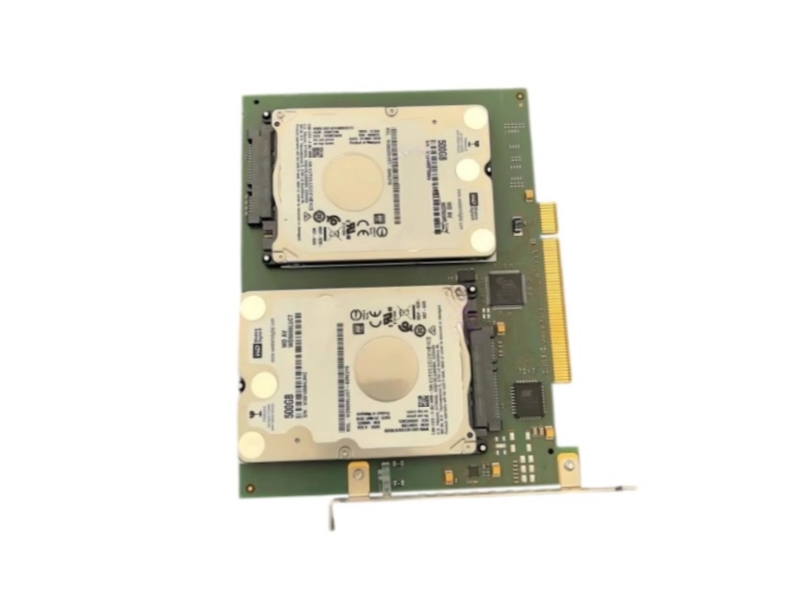

B&R 5ACPCI.RAIC-06 is a PCI SATA RAID controller with two continuous-duty hard disks for striped or mirrored industrial PC storage.

MATCH BEFORE ORDERING Confirm the industrial PC platform, free PCI slot, required RAID level, drive condition and backup plan before installing or rebuilding the array.

STORAGE SET 2 x 500 GB SATA HDD

RAID MODES RAID 0 / RAID 1

HOST SLOT 1 PCI slot

Brand New Original One Year Warranty Rapid response

INQUIRE NOW

OFFICIAL STORAGE DATA

5ACPCI.RAIC-06 controller, drive and installation profile

B&R controller, disk-mechanism and mechanical data for storage planning and service decisions.

RAID CONTROLLERA / 10

01Controller typeSiI 3512 SATA link

02Supported RAID levelsRAID 0 and RAID 1

03Installed hard disks2 SATA hard disk drives

04Capacity per disk500 GB

05Drive dutySuitable for 24-hour operation

06Host-slot requirement1 PCI slot

07SATA specificationSerial ATA 1.0

08Maximum link rate1.5 Gbit/s (150 MB/s)

09BIOS extension ROMApproximately 32 kB

10Internal disk transferMaximum 147 MB/s

DRIVE & MECHANICALB / 10

11Nominal read access11 ms

12Maximum read access21 ms

13Sector count976,773,168

14Sector format512 bytes logical / 4096 bytes physical

15Disk cache16 MB

16Transport shock1000 g for 2 ms, no unrecoverable errors

17Operating elevation-305 to 3048 m

18Storage elevation-305 to 12192 m

19InstallationPermanent

20Weight350 g

FROM HOST TO MIRROR

How 5ACPCI.RAIC-06 manages redundant industrial PC storage

A practical view of array creation, data placement, recovery planning and service verification.

01PCI HOST

02RAID CONTROLLER

03DUAL SATA MEDIA

04ARRAY VOLUME

FUNCTION 01

Present one managed storage set

The controller coordinates both installed drives and exposes the configured array to the industrial PC.

FUNCTION 02

Select performance or redundancy

Commissioning determines whether data is striped for throughput or mirrored for drive-level resilience.

FUNCTION 03

Maintain continuous-duty media

The supplied disk mechanism is intended for industrial systems that remain powered for extended periods.

FUNCTION 04

Handle startup configuration

The controller extension ROM provides the pre-boot utility needed to define and inspect the array.

FUNCTION 05

Plan recovery before failure

A verified project image and documented array state reduce the risk of data loss during drive service.

FUNCTION 06

Keep the host footprint compact

The complete storage controller occupies one compatible expansion position in the PC.

BUYER REFERENCE

B&R 5ACPCI.RAIC-06 buyer FAQ

Practical guidance for confident selection, replacement and purchasing decisions.

Which array behavior should be selected when commissioning B&R 5ACPCI.RAIC-06?

Choose the operating mode from the official controller utility according to whether the application prioritizes throughput or disk redundancy, and record that choice with the machine backup.

Which host details must be verified before fitting B&R 5ACPCI.RAIC-06?

Check the exact B&R industrial PC system, an available compatible PCI position, BIOS resources, mechanical clearance and the applicable Automation PC user manual.

Where is B&R 5ACPCI.RAIC-06 normally applied?

It is used where an Automation PC requires an internally managed SATA disk set for operating-system, runtime or machine-project storage.

Is B&R 5ACPCI.RAIC-06 discontinued or available for quotation?

The reviewed B&R product record does not state a product phase-out. Current stock, drive condition and revision are confirmed with each quotation.

Can B&R 5ACPCI.RAIC-06 be replaced without preserving the existing array metadata?

No. Identify the controller revision and array mode, create a verified backup and confirm disk compatibility before removing the installed controller or media.

Which records should accompany a B&R 5ACPCI.RAIC-06 manual or price request?

Send the industrial PC material number, controller label, disk labels, array status, required condition, quantity and destination so the correct manual and quotation can be prepared.
