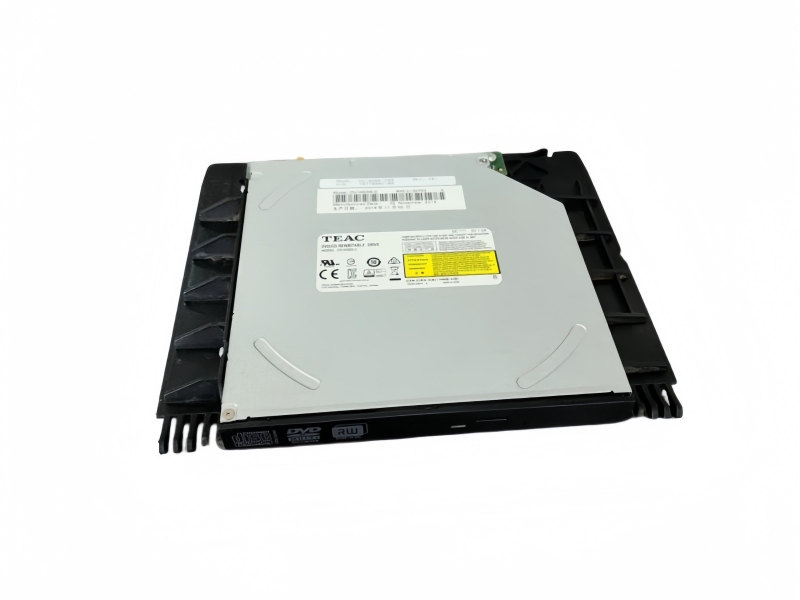

Name: B&R 5AC901.SDVW-00 Slide-in DVD Drive
Availability: InStock

VERIFIED PRODUCT DATA

Product specifications

Official B&R optical-media, interface, environmental and mechanical data for 5AC901.SDVW-00.

PARAMETEROFFICIAL VALUEPARAMETEROFFICIAL VALUE

Drive typeDVD-R/RW and DVD+R/RWNoise levelApprox. 45 dBA at 50 cm

Mechanical formatSlide-inService life60,000 POH

Host interfaceSATAPollution degree2 per EN 61131-2

Data buffer2 MBOperating temperature5 to 55°C

Maximum transfer rate33.3 MB/sStorage temperature-20 to 60°C

Maximum spindle speed5160 rpm ±1%Transport temperature-40 to 65°C

CD startup time14 s max.Operating humidity8 to 80%, non-condensing

DVD startup time15 s max.Storage / transport humidity5 to 95%, non-condensing

CD access time140 ms average at 24xOperating vibration0.2 g, 5 to 500 Hz

DVD access time150 ms average at 8xOperating shock5 g max., 11 ms

Maximum CD read speed24xWidth22 mm

Maximum DVD read speed8xHeight172.5 mm

Readable CD mediaCD-ROM, CD-R, CD-RW; 8 cm and 12 cmDepth150 mm

Readable DVD mediaDVD-ROM, ±R, ±RW, RAM and dual layerWeight400 g

Laser classClass 1CertificationsCE, UKCA, cULus and HazLoc

Official B&R dimensions are 22 x 172.5 x 150 mm and the listed product weight is 400 g.

02FUNCTION
& APPLICATION

Optical-media service workflow

Use the drive for controlled software, recovery and archival tasks in a compatible B&R industrial-PC bay.

01 / HOST CHECK

Confirm the slide-in platform

Identify the complete B&R computer configuration and verify that its mechanical bay and internal connection are intended for this optical-drive family.

02 / MEDIA PLAN

Select supported disc formats

Choose media that matches the required read, write or recovery task and the operating-system software used by the industrial PC.

03 / MAINTENANCE

Protect the optical mechanism

Keep the tray, disc and installation area clean, and avoid vibration or shock outside the documented operating limits during access.

PROJECT PLANNING CHECKPOINTS

CHASSIS

Check the exact APC or PPC system unit and the presence of a compatible slide-in bay.

SOFTWARE

Confirm that the operating system and application can use the selected optical media.

MEDIA

Use undamaged industrially suitable discs and follow the machine's validated recovery process.

ENVIRONMENT

Keep temperature, humidity, shock and vibration within the drive's published limits.

PLATFORM CHECK

B&R publishes the module and APC910 documentation; final compatibility depends on the complete industrial-PC system configuration.

TECHNICAL & ORDER SUPPORT

Product FAQ & Buying Guide

Find practical answers for purchasing, compatibility, documentation and replacement planning.

Which optical formats can B&R 5AC901.SDVW-00 handle during industrial-PC maintenance?

The drive supports the listed writable and readable CD/DVD families, including recordable, rewritable, RAM and supported dual-layer formats.

How do I verify that B&R 5AC901.SDVW-00 fits an existing Automation PC?

Check the complete system-unit order number for an approved slide-in bay and internal SATA path, then compare the assembly instructions in the relevant B&R user manual.

Why would a machine builder retain B&R 5AC901.SDVW-00 instead of using network deployment?

Validated legacy systems may rely on optical installation, recovery or archive media, making the original internal drive path useful for controlled service procedures.

What condition checks matter when sourcing B&R 5AC901.SDVW-00?

Request tray and connector photos, verify that the mechanism reads media reliably, and confirm whether the offered unit is new, surplus or tested before shipment.

Is a generic notebook DVD drive a safe substitute for B&R 5AC901.SDVW-00?

Do not assume so; the carrier, dimensions, connector placement, firmware behavior, environmental rating and host approval must all match the B&R computer design.

Where should a purchaser look before requesting a quote for B&R 5AC901.SDVW-00?

Review the B&R product page and Automation PC 910 manual, then provide the host-PC label, bay details, required media task, quantity and destination.

04 / OUR COMPANY HISTORY

Experience You Can Rely On

More than two decades of automation sourcing experience for customers worldwide.

OUR COMMITMENT

Since our company was founded, we have served every customer with sincerity and professionalism. Our prices may not always be the lowest, but we earn long-term trust through quality products, dependable after-sales support, honest condition reporting, timely communication and responsible delivery. Our goal is to build lasting partnerships rather than pursue one-off transactions.

2005

The Beginning

Company was founded in Xiamen, Fujian, China, in 2005 with a team of only four people. At that time, we mainly served selected European and North American markets, supplying commonly requested industrial automation products from Siemens, Allen-Bradley and Bently Nevada. Although the business was still developing and we completed relatively few orders, this period helped us build essential product knowledge and international trade experience.

2017

A Period of Growth

By 2017, our team had grown to approximately 30 people, and we had established a warehouse for in-stock automation components. Our business expanded across Europe, North America and Southeast Asia, while our product range grew from popular models to scarce and discontinued industrial automation parts. As our product knowledge and service experience increased, we completed nearly 20 orders per month on average.

Apter office team in 2018 — **2018**Our Team & Office

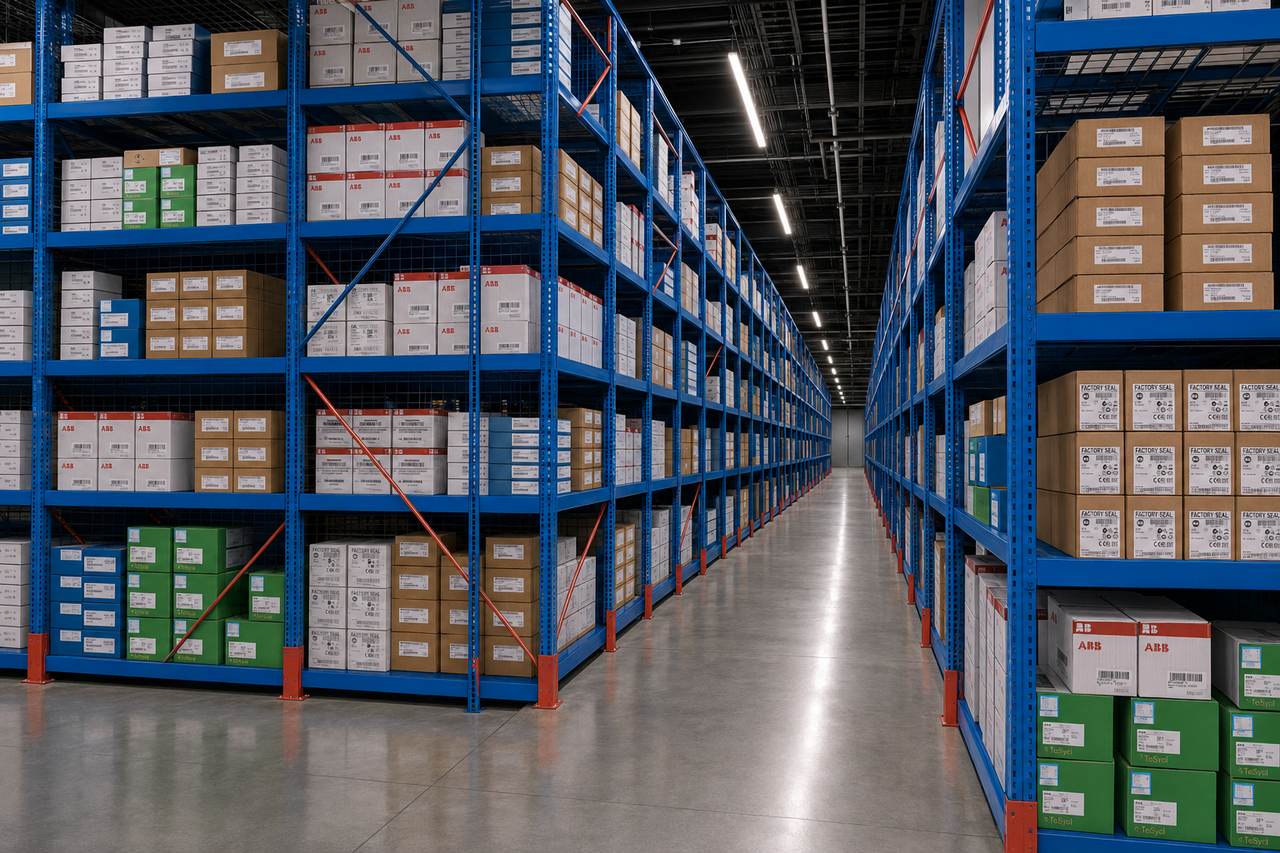

Current Apter warehouse inventory — **TODAY**Current Warehouse Inventory
