Name: B&R 5AC600.485I-00 Serial Interface Module
Availability: InStock

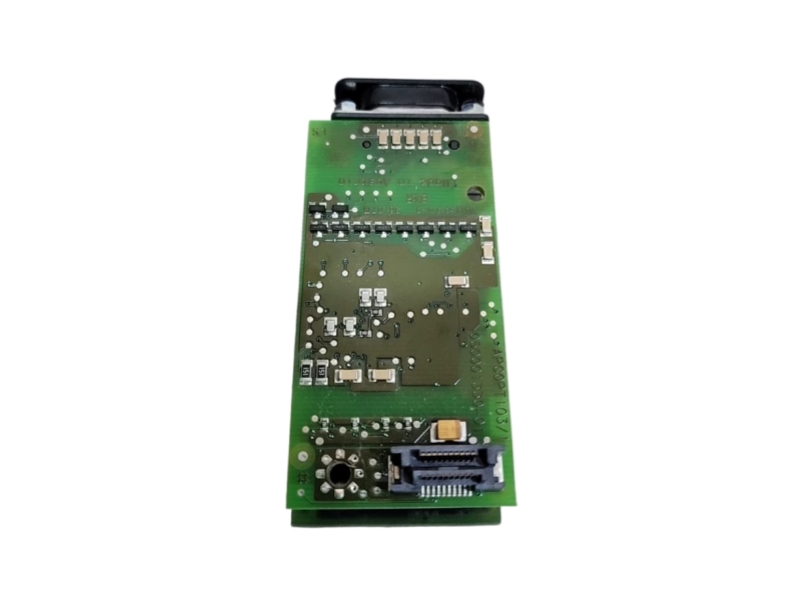

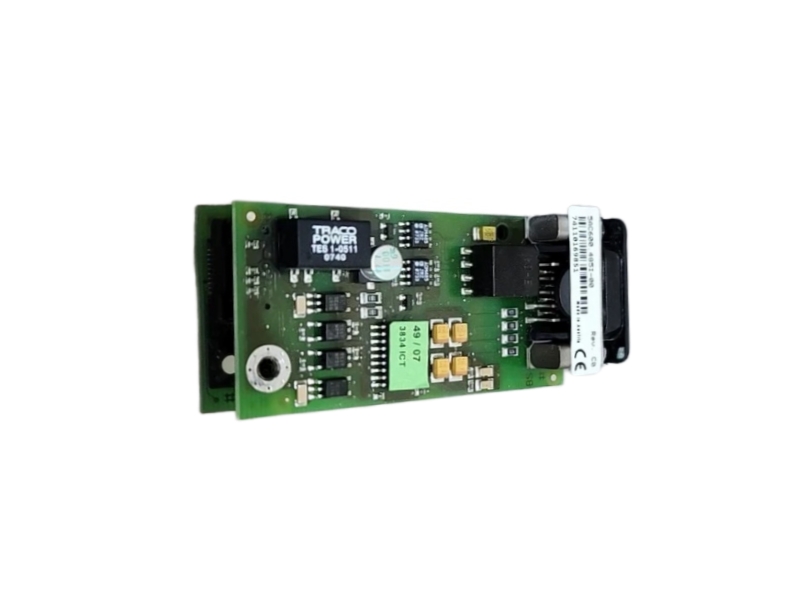

B&R 5AC600.485I-00 Serial Interface Module

B&R SERIAL CONNECTIVITYOFFICIAL DATA

5AC600.485I-00

B&R 5AC600.485I-00 is a galvanically isolated combined RS232, RS422 and RS485 interface whose operating mode follows the external electrical connection.

Brand New OriginalOne Year WarrantyFast Delivery

COM1 / MULTI-STANDARD

One interface for three serial standards

3SERIAL MODES

115 kbit/sMAX RATE

9-pinDSUB

COM1PORT

HOST SYSTEMSAPC620 / APC810 / PPC700

PRODUCT ENQUIRYInquire Nowab@mooreplc.com

OFFICIAL INTERFACE DATA

Serial connection specifications

Verified B&R interface modes, connector, isolation, performance and certification data.

Interface combinationRS232 / RS422 / RS485

Operating-mode selectionAutomatic from electrical connection

COM1 typeRS232; modem not supported

RS232 isolationGalvanically isolated

Connector9-pin male DSUB

Maximum baud rate115 kbit/s

CE certificationYes

UKCA certificationYes

UL certificationcULus E115267

UL categoryIndustrial control equipment

Official dimensions and weight are shown only where the reviewed manufacturer material explicitly states them.

CONNECTION BLUEPRINT

Serial mode selection & integration

A mode-aware view of host installation, wiring, protocol use and commissioning checks.

SERIAL LINK ROUTE

STAGE 01

Install option

Seat the interface in a supported B&R host option position and secure the hardware.

STAGE 02

Choose wiring

Build the cable for RS232, RS422 or RS485; the electrical connection determines the mode.

STAGE 03

Set communication

Match baud rate, framing and device-address requirements in the application.

STAGE 04

Test exchange

Verify receive and transmit behavior with the connected instrument before machine release.

CONNECTION ROLES

Legacy controller link

Connect a supported B&R industrial PC to an established serial automation device.

Instrument interface

Exchange command and measurement data with serial process or test equipment.

Service channel

Provide a wired engineering or maintenance path where the selected protocol is supported.

INTEGRATION CHECKPOINTS

HOST

Confirm the APC or PPC variant and physical option position.

PINOUT

Use the wiring diagram for the actual serial standard rather than a generic DSUB cable.

FRAMING

Match baud, parity, data bits and stop bits at both endpoints.

ISOLATION

Plan shield, reference and grounding practice for the machine environment.

BUYER DECISION SUPPORT

Common Questions From Sellers About 5AC600.485I-00

Answers for automatic mode selection, host fit, modem limits, isolation, replacement and technical records.

By what mechanism does B&R 5AC600.485I-00 choose RS232, RS422 or RS485 operation?

The official description says the operating mode is selected automatically from the electrical connection, so the cable pinout and connected interface determine the active standard.

Can B&R 5AC600.485I-00 be used as an RS232 modem interface?

No. B&R identifies COM1 as RS232-capable but explicitly states that modem operation is not supported.

Which B&R computer families are documented with B&R 5AC600.485I-00 installation support?

B&R system pages list this interface for APC620, APC810 and PPC700 installations. The exact host assembly and option position should still be checked.

Why is galvanic separation relevant when deploying B&R 5AC600.485I-00 on a machine?

The official data marks the RS232 interface as galvanically isolated, helping separate the communication port from electrical reference differences; correct shielding and grounding remain necessary.

Before exchanging an older serial option for B&R 5AC600.485I-00, what must the integrator compare?

Compare host compatibility, slot mechanics, DSUB pin assignment, interface standard, baud and framing settings, isolation needs and the application configuration.

Where should a buyer look for B&R 5AC600.485I-00 setup details and quotation support?

Use the relevant B&R Automation PC 620, Automation PC 810 or PPC700 documentation. Provide the host model, existing option label, wiring standard, quantity and delivery destination when requesting a quote.
