B&R 4PP420.0571-75 Power Panel PP420 Embedded HMI Controller

B&R / POWER PANEL PP4205.7-INCH HMI CONTROLLER
PANEL CONTROL PLATFORM

4PP420.0571-75

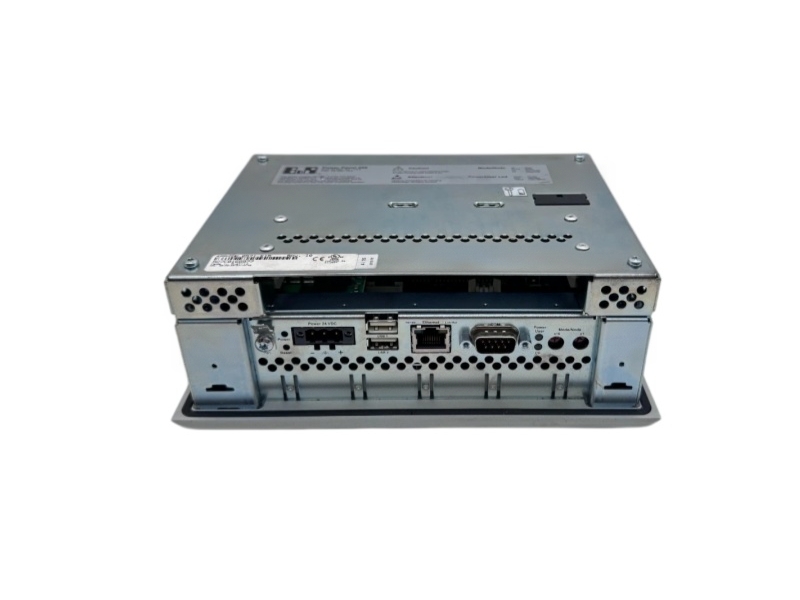

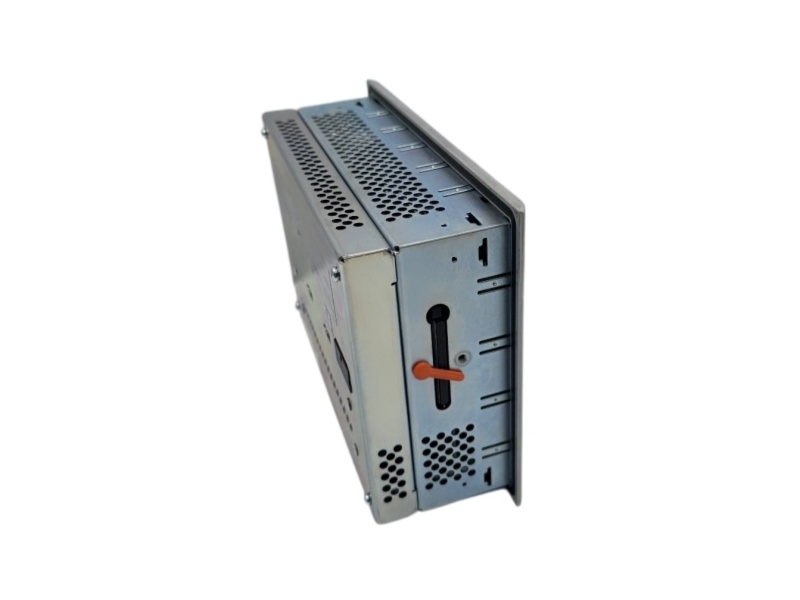

B&R 4PP420.0571-75 combines a 5.7-inch QVGA resistive touchscreen, Geode LX800 CPU and industrial Ethernet, serial and USB ports.

BEFORE INSTALLATIONConfirm panel cutout, supply terminal, Automation Runtime project, CompactFlash, battery and optional aPCI hardware.
PRODUCT STATUSOfficial record available
SELECTION CONTROLCUTOUT + PROJECT
Brand New OriginalOne Year WarrantyWorldwide Shipping
INQUIRE NOW
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer B&R
Item number 4PP420.0571-75
Country of Origin Austria
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
FIELD JOURNAL

4PP420.0571-75 Panel and Controller Parameters

Official B&R display, processor, memory, storage, interface, power, protection and mechanical data for the exact PP420 panel.

DISPLAY, TOUCH & COMPUTE PLATFORM
CLOCK FREQUENCY500 MHz
L1 CACHE128 kB
L2 CACHE128 kB
MAIN MEMORY128 MB SDRAM
BATTERY-BACKED SRAM512 kB
FIRMWARE FLASH2 MB
STORAGECompactFlash Type I
DISPLAY TYPE5.7-inch TFT color
DISPLAY RESOLUTIONQVGA 320 x 240
DISPLAY COLORS262,144
BRIGHTNESS500 cd/m²
CONTRAST350:1
BACKLIGHT LIFE50,000 h half-brightness
MEMORY, INTERFACES & INSTALLATION
TOUCH TECHNOLOGYAnalog resistive, 12-bit
ETHERNET10/100 Mbit/s
SERIAL INTERFACERS232
USB INTERFACES2
EXPANSION1 aPCI slot
SUPPLY24 VDC
FRONT PROTECTIONIP65
BATTERYRenata 950 mAh, removable
BATTERY SERVICE LIFE3 years
BACKUP CAPACITOR10 min buffer
POWER-FAILURE BUFFER10 ms
DIMENSIONS212 x 156 x 76 mm
WEIGHT1700 g
02
FIELD JOURNAL

How 4PP420.0571-75 Combines HMI and Machine Control

A modernization route from cutout and supply verification to project backup, CompactFlash transfer and interface testing.

USE 01

Operate a compact machine locally

Present status, recipes, alarms and manual controls on the integrated color touchscreen.

USE 02

Run embedded control logic

Execute the approved Automation Runtime project on the panel's controller resources.

USE 03

Exchange data over Ethernet

Connect the panel to a compatible machine network for controller, service or supervisory communication.

USE 04

Retain a serial peripheral

Use the documented RS232 interface for an installed device whose protocol and pinout are preserved.

USE 05

Add optional interface hardware

Use the aPCI expansion position only with a compatible B&R option and the matching project configuration.

USE 06

Restore a legacy HMI station

Transfer the validated storage media and project to an exact spare after confirming hardware revision and panel cutout.

03
FIELD JOURNAL

Common buyer questions about 4PP420.0571-75

Practical purchasing guidance for clearer, more confident decisions.

01BUYER QUESTION

What must be checked before replacing the touchscreen on B&R 4PP420.0571-75?

The complete unit uses a 5.7-inch QVGA analog-resistive touch system. Confirm the exact panel material number, front assembly, cutout and controller project rather than treating the display as a generic screen.

02BUYER QUESTION

Does the IP65 rating of B&R 4PP420.0571-75 apply to the complete installed unit?

B&R specifies IP65 at the front. The rear electronics and cabinet opening require the documented enclosure, gasket, mounting and environmental protection.

03BUYER QUESTION

Why is CompactFlash handling important for B&R 4PP420.0571-75?

The CompactFlash card can contain the runtime application and machine data. Create a verified backup and preserve licensing before moving or replacing the storage medium.

04BUYER QUESTION

Which terminal accessory is needed to power B&R 4PP420.0571-75?

B&R lists 0TB103.9 or 0TB103.91 as separately ordered terminal-block options. Confirm the installed terminal, wiring and 24 VDC supply before commissioning.

05BUYER QUESTION

How should the battery and backup capacitor of B&R 4PP420.0571-75 be serviced?

Follow the B&R manual, maintain stable power where required and protect retained data. The removable battery and capacitor have different backup roles and must not be treated as interchangeable.

06BUYER QUESTION

Which Power Panel records and availability checks are needed for a B&R 4PP420.0571-75 quotation?

Use the B&R product record and PP420 user's manual, then confirm current supply for the complete material number. Provide the label, panel cutout, CompactFlash details, Automation Runtime version, optional aPCI card, terminal block, quantity and destination.
