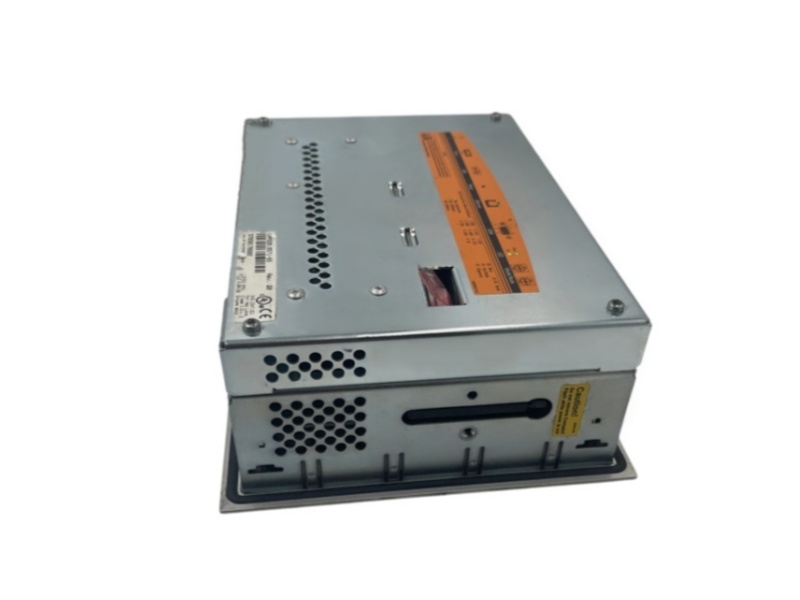

B&R 4PP220.0571-65 Power Panel PP220 5.7-Inch Color Touchscreen

B&R / POWER PANEL 200PP220 TOUCH PANEL
HMI + MACHINE CONTROL

4PP220.0571-65

B&R 4PP220.0571-65 combines a 5.7-inch color QVGA resistive touchscreen, PP220 controller, Ethernet and serial connectivity in a metal panel-mount unit.

BEFORE INSTALLATIONConfirm the 24 VDC supply, terminal connector, CompactFlash media, aPCI interface population and Automation Runtime project before installation.
SELECTION CHECKVERIFY PANEL + PROJECT
One Year WarrantyFast DeliveryWorldwide Shipping
INQUIRE NOW
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer B&R
Item number 4PP220.0571-65
Country of Origin Austria
Lead Time 2-3 DAYS
After-Sales Support One Year Warranty
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
CONTROL DOSSIER

4PP220.0571-65 Controller, Display and Interface Parameters

Official B&R controller, display, touch, interface, electrical, environmental and mechanical data for the exact Power Panel.

CONFIGURATION CHECKMatch the panel and project

Verify the color QVGA variant, existing panel opening, power connector, CompactFlash media and installed aPCI option before replacement.

INSTALLATION SETComplete the panel assembly

4PP220.0571-65 Power Panel
0TB103.9 or 0TB103.91 connector
Compatible Type I CompactFlash card
Selected aPCI module and terminals

CONTROLLER, DISPLAY & TOUCH
BOOTLOADERAutomation Runtime
L1 CACHE16 kB
REAL-TIME CLOCK ACCURACYTyp. 10 ppm at 25°C
SRAM RETENTIONBattery-backed
FIRMWARE FLASH2 MB
COOLINGPassive via heat sink
MODE / NODE SWITCHES2 switches, 16 positions each
WATCHDOGSMC
DISPLAY TYPEColor LCD
DISPLAY DIAGONAL5.7 in (144 mm)
RESOLUTIONQVGA, 320 x 240 pixels
BRIGHTNESS150 cd/m²
CONTRAST40:1
BACKLIGHT HALF-BRIGHTNESS TIME50,000 h
TOUCH TECHNOLOGYAnalog resistive, Gunze
TOUCH CONTROLLERHampshire, serial, 12-bit
COM1RS232, modem supported, not isolated
INTERFACES, POWER & MECHANICAL
COM1 CONNECTOR9-pin male DSUB
COM1 MAXIMUM BAUD RATE115 kbit/s
ETHERNET1 port, 10/100 Mbit/s
USB2 USB 1.1 Type A ports
USB TRANSFER RATES1.5 and 12 Mbit/s
COMPACTFLASH SLOT1, Type I
APCI SLOTS1
NOMINAL VOLTAGE24 VDC ±25%
POWER CONSUMPTIONTyp. 12 W; max. 17 W
INRUSH CURRENTMax. 20 A for <1 ms
GALVANIC ISOLATIONYes
CERTIFICATIONSCE; UKCA; cULus E115267
OPERATING TEMPERATURE0 to 50°C
STORAGE / TRANSPORT TEMPERATURE-20 to 60°C
OPERATING ELEVATIONMax. 3000 m
PRODUCT DIMENSIONS212 x 156 x 76 mm
PRODUCT WEIGHT1700 g
02
CONTROL DOSSIER

4PP220.0571-65 Combines Operation, Control and Connectivity

A functional view of operator interaction, local control, removable storage, service communication and aPCI expansion.

USE 01

Operate compact production machines

Present commands, machine states and alarms from a panel-mounted operator station close to the process.

USE 02

Run local control logic

Execute the installed Automation Runtime application while keeping operator visualization and machine control in one device.

USE 03

Maintain removable application storage

Use the CompactFlash medium for project deployment, controlled backup and service replacement workflows.

USE 04

Connect engineering and plant Ethernet

Provide a standard network path for project transfer, diagnostics and application-level data exchange.

USE 05

Integrate serial equipment

Use the built-in serial channel for supported devices that remain part of an existing machine architecture.

USE 06

Extend the panel through aPCI

Add the appropriate official interface module when the machine requires an additional supported fieldbus or serial path.

03
CONTROL DOSSIER

Common buyer questions about 4PP220.0571-65

Practical purchasing guidance for clearer, more confident decisions.

BUYER CHECKLISTSend the installed panel details

Complete nameplate and revision
Panel opening and supply connector
CompactFlash and aPCI configuration
Project version and delivery destination

01BUYER QUESTION

How should the service battery in B&R 4PP220.0571-65 be handled during maintenance?

B&R specifies a removable 3 V / 950 mAh lithium battery accessible from outside, with a stated service life of four years. Record retained settings, follow the Power Panel 100/200 manual and replace the battery under controlled service conditions.

02BUYER QUESTION

Which aPCI communication options can be considered for B&R 4PP220.0571-65?

The official accessory list includes aPCI modules for functions such as POWERLINK, CAN, PROFINET RT and additional serial communication. Select the exact module by the installed project and order any required TB704 field terminals separately.

03BUYER QUESTION

What must be verified before B&R 4PP220.0571-65 replaces an existing operator panel?

Check the official dimensional drawing and panel opening, supply connector, cable routing, CompactFlash contents, Automation Runtime project, aPCI option and external device mapping. B&R does not identify a universal drop-in replacement for every installed configuration.

04BUYER QUESTION

Can the front of B&R 4PP220.0571-65 be installed where dust or hose-directed water is present?

The official rating is IP65 and NEMA 250 type 4X at the front, while the rear is IP20 only with a CompactFlash card connected. The enclosure, gasket, rear protection and installation method must preserve those boundaries.

05BUYER QUESTION

Which other B&R Power Panel versions should be compared with B&R 4PP220.0571-65?

Compare the exact screen technology, color or monochrome display, network variant, aPCI count, panel dimensions and project compatibility. Similar PP220 material numbers are configuration variants and should not be treated as automatic substitutes.

06BUYER QUESTION

Which documents and quotation details are needed for B&R 4PP220.0571-65?

Use the official product page, Power Panel 100/200 user's manual and the model-specific dimensional drawing. For a quotation, send the complete nameplate, revision, CompactFlash and aPCI details, connector requirement, quantity, condition requirement and delivery destination.
