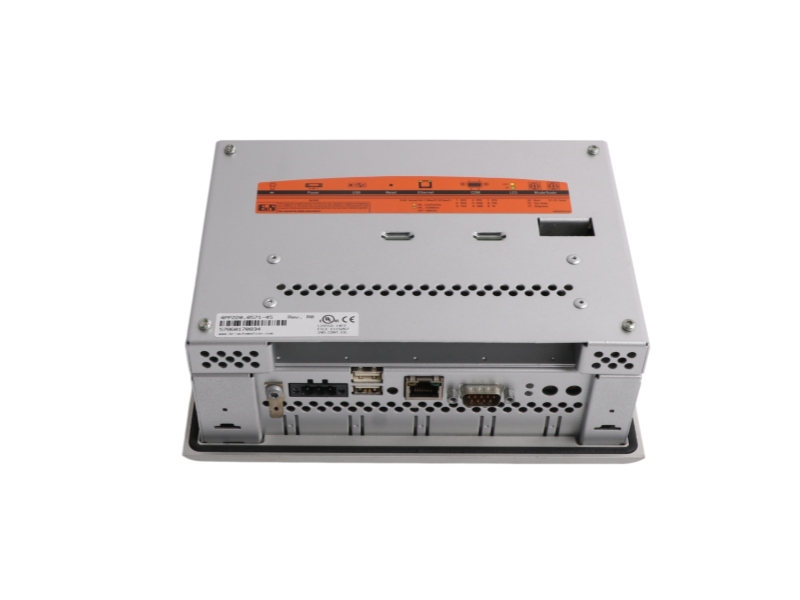

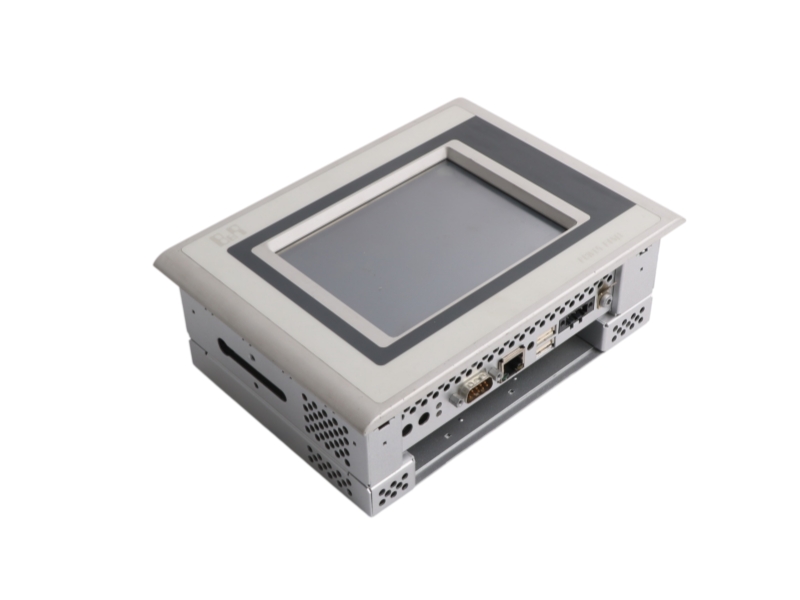

Name: B&R 4PP220.0571-45 Power Panel PP220 5.7-Inch Monochrome Touchscreen
Availability: InStock

B&R 4PP220.0571-45 Power Panel PP220 5.7-Inch Monochrome Touchscreen

B&R / POWER PANEL 2005.7-INCH MONOCHROME

PANEL-MOUNTED HMI CONTROLLER

4PP220.0571-45

B&R 4PP220.0571-45 combines a 5.7-inch monochrome touchscreen, embedded control and Ethernet/RS232 connectivity for panel-mounted operation.

MATCH BEFORE ORDERINGVerify the full material number, project image, CompactFlash, aPCI option and panel opening before replacement.

SUPPLY STATUSConfirmed by quotation

REPLACEMENTNo direct successor published

Brand New Original

Fast Delivery

Worldwide Shipping

REQUEST A 4PP220.0571-45 QUOTE

PRODUCT INFORMATION

4PP220.0571-45 Official Technical Parameters

Two balanced ledgers of exact controller, display, interface, electrical and mechanical data from B&R.

CONTROL, DISPLAY & MEMORY

ProcessorGeode SC2200

Clock frequency266 MHz

Main memory64 MB SDRAM

SRAM256 kB, battery-backed

Firmware flash2 MB

BootloaderAutomation Runtime

Real-time clock accuracyTyp. 10 ppm at 25°C

CoolingPassive via heat sink

Display typeMonochrome LCD

Display diagonal5.7 in (144 mm)

Gray levels8

ResolutionQVGA, 320 x 240 pixels

Brightness140 cd/m²

Contrast25:1

Touch technologyAnalog resistive, Gunze

INTERFACES, POWER & MECHANICAL

Touch controllerHampshire, serial, 12-bit

COM1RS232, 9-pin male DSUB

COM1 maximum baud rate115 kbit/s

Ethernet1 port, 10/100 Mbit/s

USB2 USB 1.1 Type A ports

CompactFlash1 Type I slot

aPCI slots1

Nominal voltage24 VDC ±25%

Power consumptionTyp. 12 W; max. 17 W

Front protectionIP65 / NEMA 250 type 4X

Rear protectionIP20 with CF card connected

Operating temperature0 to 50°C

CertificationsCE; UKCA; cULus E115267

Dimensions (W x H x D)212 x 156 x 76 mm

Weight1700 g

PRODUCT INFORMATION

How 4PP220.0571-45 Works in a Machine Panel

Operator interaction, embedded runtime, removable project storage and service connectivity arranged as one control path.

01Operator input

02Runtime logic

03Machine interface

04Process response

Operator interaction

Present machine status, commands, alarms and service views directly at the enclosure front.

Runtime execution

Run the validated Automation Runtime application inside the integrated controller platform.

Project continuity

Preserve the installed CompactFlash project and retained service data during maintenance.

Engineering access

Use the standard network path for commissioning, diagnostics and application-level exchange.

Legacy device integration

Connect supported serial equipment that remains part of the machine architecture.

Fieldbus expansion

Fit the correct official aPCI option when the application requires an additional network path.

PRODUCT INFORMATION

B&R 4PP220.0571-45 Buyer FAQ

Six model-specific answers for terminal selection, project continuity, compatibility, application, lifecycle and quotation records.

Which power connector must be ordered for B&R 4PP220.0571-45?

B&R lists 0TB103.9 as the screw-clamp connector and 0TB103.91 as the cage-clamp connector. The selected 24 VDC terminal block is ordered separately.

What must be preserved before replacing B&R 4PP220.0571-45?

Back up the validated CompactFlash image, Automation Runtime project and retained machine data, then record the installed aPCI option and rear connections before removal.

Can B&R 4PP220.0571-65 replace B&R 4PP220.0571-45 directly?

Not automatically. The -45 uses a monochrome display while the -65 is a color variant; confirm project behavior, panel opening, interfaces, storage and the complete machine configuration before substitution.

Where is B&R 4PP220.0571-45 typically applied?

It suits panel-mounted machine operation where local visualization, embedded control, removable application storage and industrial communication are required in one unit.

Is B&R 4PP220.0571-45 still available or officially discontinued?

B&R maintains an official product record but does not state a public phase-out date or direct successor on that page. Apter Power confirms sourcing status during quotation.

Which records should accompany a B&R 4PP220.0571-45 manual and quotation request?

Send the full nameplate, revision, quantity, destination, panel-opening details, CompactFlash information, aPCI configuration and clear photographs of the rear connections.
