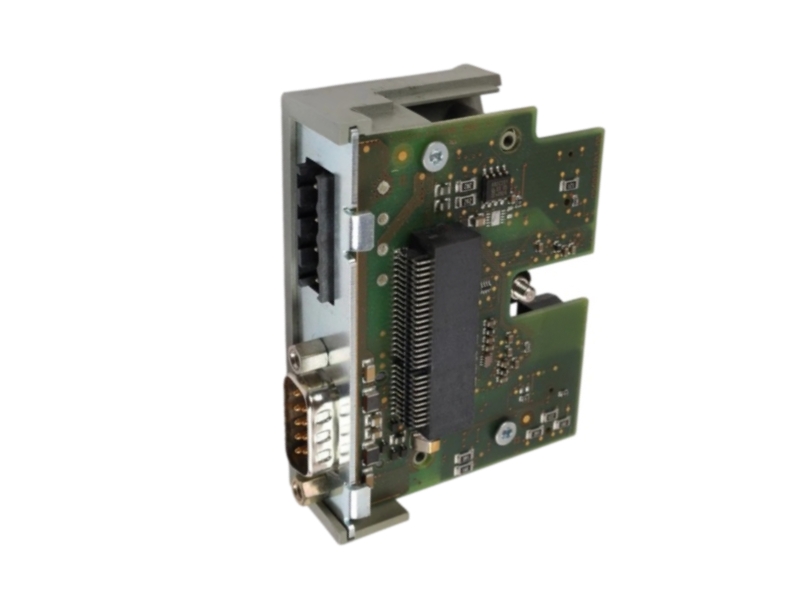

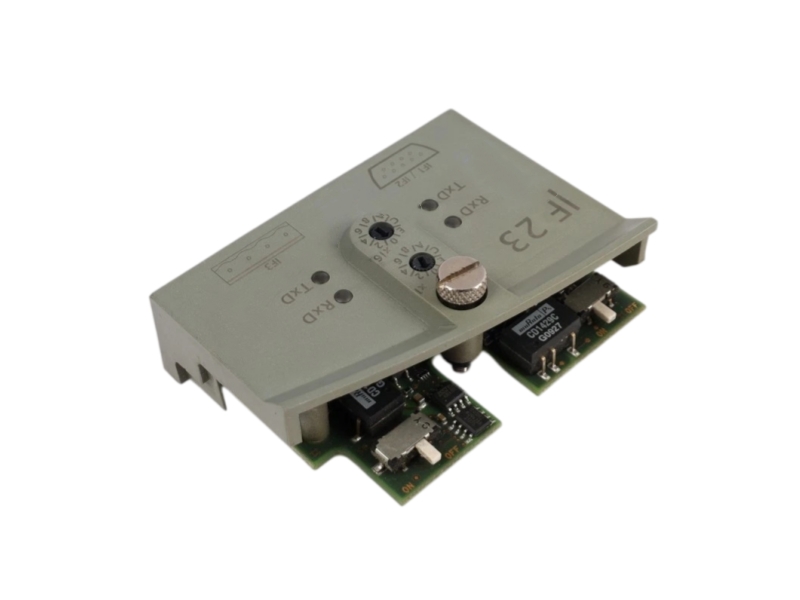

B&R 4PP045.IF23-1 Power Panel 45 Communication Module

B&R / POWER PANEL 45 INTERFACESSERIAL + CAN MODULE
MULTI-PROTOCOL INTERFACE

4PP045.IF23-1

B&R 4PP045.IF23-1 combines RS232, isolated RS422/RS485 and isolated CAN interfaces for Power Panel 45 machine communication.

BEFORE INSTALLATIONConfirm the Power Panel 45 host, selected serial electrical standard, CAN topology and separately ordered 0TB704 terminal block.
PRODUCT STATUSOfficial record available
SELECTION CONTROLPANEL + TB CHECK
Brand New OriginalFast DeliveryWorldwide Shipping
INQUIRE NOW
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer B&R
Item number 4PP045.IF23-1
Country of Origin Austria
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
FIELD JOURNAL

4PP045.IF23-1 Interface and Protocol Parameters

Official B&R connector, transfer-rate, isolation and operating details for this exact Power Panel 45 module.

SERIAL CHANNEL ARCHITECTURE
IF1 CONNECTOR9-pin DSUB plug
IF1 MAXIMUM RATE115.2 kbit/s
SERIAL INTERFACE IF2RS485 / RS422
IF2 CONNECTOR9-pin DSUB plug
IF2 MAXIMUM RATE115.2 kbit/s
RS422 ISOLATIONElectrically isolated
RS485 ISOLATIONElectrically isolated
RS485 NETWORK USENetwork-capable
SERIAL CONNECTOR ARRANGEMENTRS232 / RS485 / RS422 combined
FIELDBUS INTERFACE IF3CAN bus
IF3 CONNECTOR4-pin multipoint plug
CAN, ACCESSORY & ENVIRONMENT
IF3 MAXIMUM RATE1 Mbit/s
CAN ISOLATIONElectrically isolated
CAN NETWORK USENetwork-capable
REQUIRED TERMINAL ACCESSORY0TB704 ordered separately
SERIAL UART16C550-compatible
FIFO DEPTH16 bytes
RS232 HANDSHAKERTS / CTS supported
DATA BITS5 to 8
STOP BITS1 or 2
OPERATING TEMPERATURE0 to 50°C
PROTECTION RATINGIP20
02
FIELD JOURNAL

How 4PP045.IF23-1 Connects Legacy Devices and CAN Nodes

A practical commissioning path for selecting electrical standards, wiring the separate networks and confirming the host panel.

USE 01

Link point-to-point serial equipment

Use the dedicated RS232 channel for a local device whose signaling and pin assignment match the panel interface.

USE 02

Integrate differential serial devices

Choose the combined serial connector when a machine device requires the noise tolerance of differential signaling.

USE 03

Build a multidrop serial segment

Use the network-capable interface for multiple correctly addressed devices on a planned bus topology.

USE 04

Connect distributed CAN nodes

The fieldbus channel links compatible machine nodes while keeping that network electrically separated.

USE 05

Preserve installed PP45 communication

A like-for-like spare can retain established device links when the panel configuration and wiring are documented.

USE 06

Commission mixed legacy networks

The module helps a PP45 application bridge two serial roles and a CAN segment without a separate external gateway.

03
FIELD JOURNAL

Common buyer questions about 4PP045.IF23-1

Practical purchasing guidance for clearer, more confident decisions.

01BUYER QUESTION

Can B&R 4PP045.IF23-1 operate RS232 and RS485 wiring through the same serial connector?

The official description identifies RS232, RS485 and RS422 as combined on one connector. Only the electrical standard configured for that channel and its matching pinout should be used for a given connection.

02BUYER QUESTION

Why is isolation important when B&R 4PP045.IF23-1 connects RS422, RS485 and CAN equipment?

B&R specifies the RS422/RS485 and CAN interfaces as isolated. This separates their communication circuits from the panel side, but correct grounding, shielding and cable routing are still required.

03BUYER QUESTION

Which accessory must be included when installing B&R 4PP045.IF23-1 on a CAN network?

B&R lists terminal block 0TB704 as a separately ordered accessory. Confirm that the terminal block and its field wiring are present before commissioning the CAN segment.

04BUYER QUESTION

What must be checked before replacing a B&R 4PP045.IF23-1 in an existing Power Panel 45?

Match the complete material number, Power Panel 45 host, connector pinout, configured serial standard, CAN node settings and network termination. Do not assume another IFxx module has the same interfaces.

05BUYER QUESTION

Which official documents support commissioning B&R 4PP045.IF23-1?

Use the B&R 4PP045.IF23-1 datasheet together with the Power Panel 45 user's manual. They define the interface allocation, electrical characteristics, connector use and operating limits.

06BUYER QUESTION

How should current supply status and quotation evidence be checked for B&R 4PP045.IF23-1?

B&R provides an official product record and Power Panel 45 manual, but current supply must be confirmed for the complete material number. Provide label photos, host panel number, required terminal block, serial device types, CAN topology, quantity, condition requirement and destination.
