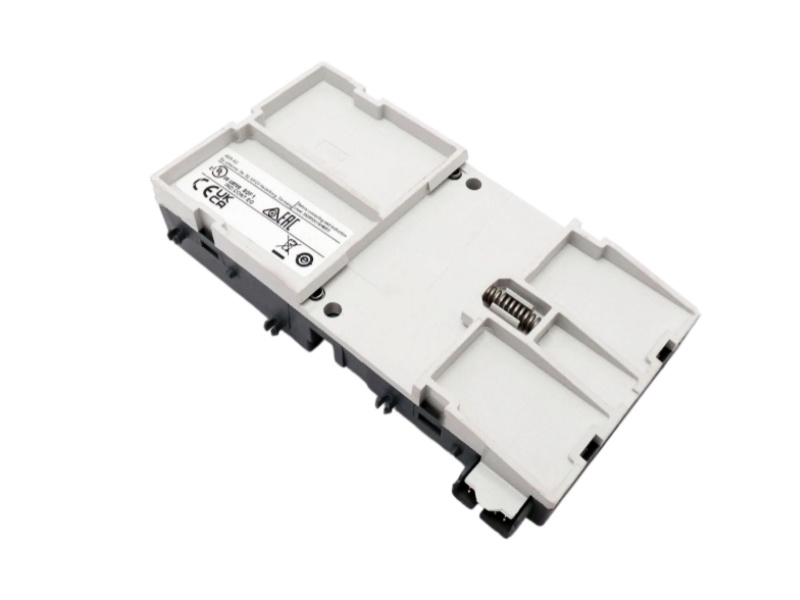

ABB TU542 product image view 1

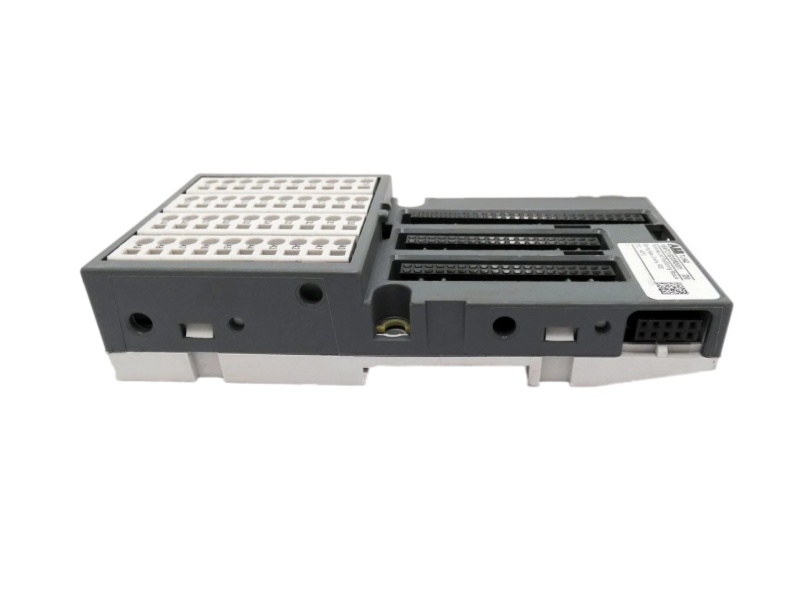

ABB TU542 product image view 2
ABB TU542 product image view 3

ABB TU542 S500 24 V DC High-Current I/O Terminal Unit with Spring Terminals

ABB / PLC
S500
TU542
ABB TU542 is an S500 24 V DC I/O terminal unit with spring connections and separated process-supply sections for compatible high-current I/O modules.
Terminal style
Spring connection
Signal capacity
Up to 32 channels
Primary use
High-current I/O
TU542 is the standard non-hot-swap version; do not substitute TU542-H without a complete compatibility review.
Terminals40
Rated voltage24 V DC
ONE YEAR WARRANTY
FAST DELIVERY
WORLDWIDE SHIPPING
FAST RESPONSE
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer ABB
Item number TU542
Country of Origin Germany
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code 85389091
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
TERMINAL ARCHITECTURE
Separated process supplies and dense field wiring for a compatible I/O module.
ABB distinguishes TU542 from screw-terminal, XC and hot-swap terminal-unit variants by connection and supply architecture.
Channel capacity01
Maximum 32
Channel groups02
4 groups of 8
Field terminals03
40
I/O-bus connections04
10-pin male + female
Process supply sections05
UP / UP3 / UP4
Maximum current06
10 A per separated supply
Grounding07
DIN rail or wall screws
Field connection08
Front spring terminals
Mounting position09
Horizontal or vertical
Wall-mounting holes10
2
Module retention11
2 mechanical locks
Hot-swap marking12
Not included on TU542
Compatible high-current module
DO526
Country of origin
Germany
Catalog weight
0.163 kg
Official lifecycle
Active
ORDER REVIEW
Check the inserted I/O module, separated supply wiring, terminal map and need for hot-swap or XC capability before ordering.
02
WIRING STRUCTURE
A terminal base organized around supply separation and service access.
The terminal unit carries the field connections and passes the I/O bus to the next station module.

Bus continuity
01
Male and female I/O-bus connectors link the preceding device and the next terminal unit.

Supply separation
02
Dedicated UP3 and UP4 sections allow high-current output groups to use separated process feeds.

Module service
03
The plugged I/O module can be released while the field wiring remains on the terminal unit.

Panel integration
04
DIN-rail and wall mounting are supported, with direct grounding through the mounting structure.
Standard variant
TU542
Hot-swap variant
TU542-H
XC variant
TU542-XC
Connection family
S500 I/O bus
Q1
Is ABB TU542 a hot-swap terminal unit?
No. ABB identifies hot-swap terminal units with the -H suffix. TU542 is the standard spring-terminal version; TU542-H is a separate product and order code.
Q2
Which ABB I/O module is TU542 primarily specified for?
ABB catalog data identifies TU542 as the high-current terminal unit used with DO526. Always confirm the installed module and its device index before selection.
Q3
How are process supplies arranged on ABB TU542?
The terminal architecture includes a common UP section plus separate UP3 and UP4 sections with corresponding zero-potential connections, supporting separated high-current output groups.
Q4
Can an I/O module be removed from ABB TU542 without disconnecting field wiring?
Yes. ABB explains that connections remain on the terminal unit when the inserted module is released. Power and process voltage must still be handled according to the installation rules.
Q5
What are the alternative versions of ABB TU542?
ABB lists TU542-XC for extreme conditions and TU542-H for hot-swap applications, with TU542-H-XC combining both features. Each is a distinct order configuration.
Q6
What details are required for an ABB TU542 quotation and manual?
Send the TU542 model and order code, inserted I/O module, supply-group wiring, required terminal variant, quantity, destination and delivery date for an exact review.
