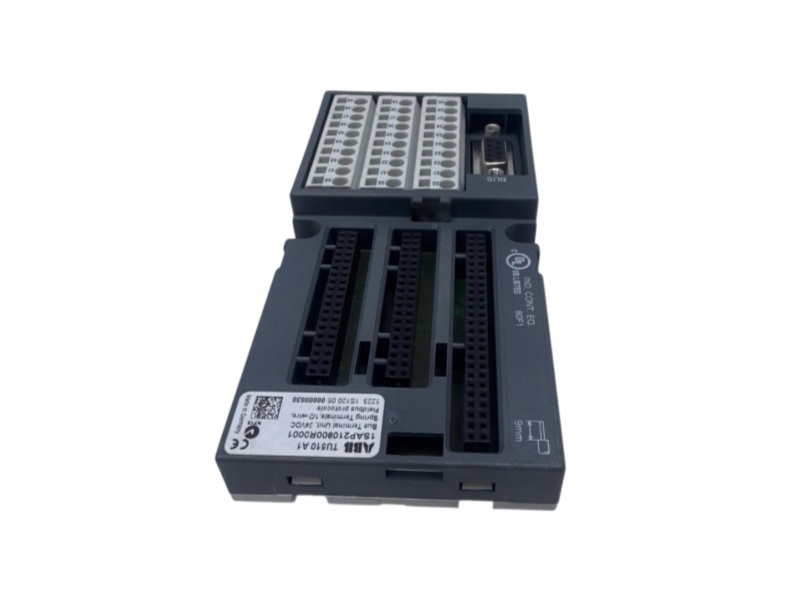

ABB TU510 product image view 1

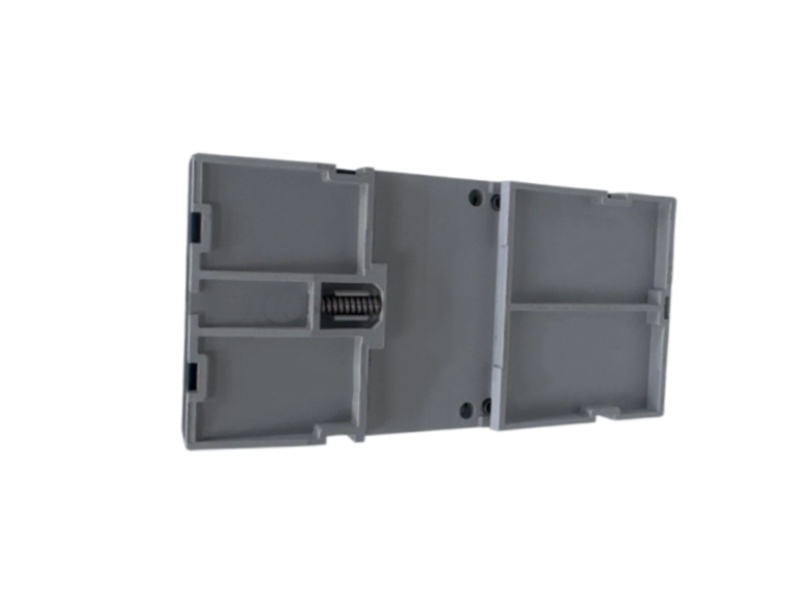

ABB TU510 product image view 2
ABB TU510 product image view 3

ABB TU510 S500 24 V DC Communication Interface Terminal Unit with Spring Terminals

ABB / PLC
S500
TU510
ABB TU510 is an S500 24 V DC spring-terminal unit for compatible communication interface modules, with a 9-pin D-sub network connector and process-supply terminals.
Terminal style
Spring connection
Module role
Communication interface base
Network connector
9-pin D-sub female
Confirm the inserted communication interface, D-sub network pinout and process-supply allocation before replacement.
Signal terminals30
Rated voltage24 V DC
ONE YEAR WARRANTY
FAST DELIVERY
WORLDWIDE SHIPPING
FAST RESPONSE
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer ABB
Item number TU510
Country of Origin Germany
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code 85389091
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
COMMUNICATION BASE
Network, process-supply and signal terminations on one S500 base.
The terminal-unit selection depends on the inserted interface module and the required screw, spring or XC construction.
Maximum I/O channels01
24
Channel grouping02
3 groups of 8
Signal terminals03
30
Network connector04
9-pin D-sub female
Module connector A05
2 × 25-pin plug
Module connector B06
3 × 19-pin plug
Primary process supply07
UP at terminals 2.8 / 3.8
Separate process supply08
UP3 at terminal 4.8
Maximum terminal current09
10 A
Grounding10
DIN rail or mounting screws
Mounting position11
Horizontal or vertical
Wall-mounting holes12
2
Terminal technology
Front spring connection
Country of origin
Germany
Catalog weight
0.159 kg
Official lifecycle
Active
ORDER REVIEW
Confirm communication-module compatibility, network pinout, supply terminals, connection technology and environmental variant before ordering.
02
BASE INTEGRATION
A fixed wiring layer for serviceable communication modules.
The base secures the plugged interface and keeps field connections in place during supported module replacement procedures.

Module seating
01
Two mechanical locks secure the communication interface after its connector set is fully engaged.

Network access
02
The front D-sub connection serves the network interface defined by the inserted module, including PROFIBUS configurations.

Process terminals
03
Internally linked UP and ZP terminals distribute the primary supply, while UP3 provides a separate feed.

Variant choice
04
TU509 provides screw terminals; TU510-XC adds the extreme-condition construction to the spring version.
Mounting rail
DIN rail
Module removal
Wiring retained on base
Supply return
ZP at 2.9 / 3.9 / 4.9
Station family
AC500 / S500
Q1
Which communication modules use ABB TU510?
ABB designs TU510 for compatible AC500/S500 communication interface modules, including PROFIBUS and CANopen families. Confirm the exact interface module because terminal assignments depend on the inserted device.
Q2
What is the difference between ABB TU510 and TU509?
TU510 uses front spring terminals, while TU509 is the corresponding screw-terminal unit. The selected connection system should match the panel wiring standard.
Q3
Does ABB TU510 provide the network connector?
Yes. TU510 includes a female 9-pin D-sub connector. The electrical network role and pin assignment are determined by the compatible communication interface module installed on the base.
Q4
Can a communication module be replaced on ABB TU510 without removing field wiring?
ABB states that connections remain on the terminal unit when the plugged communication interface is removed. Power must be isolated and the supported service procedure followed.
Q5
Is there an extreme-condition version of ABB TU510?
Yes. ABB lists TU510-XC as a separate order configuration for extreme ambient conditions. Standard TU510 must not be presented as the XC version.
Q6
Which details are needed to quote ABB TU510?
Provide order code 1SAP210800R0001, the inserted communication module, network type, required terminal style, quantity, destination and delivery date.
