ABB TB541-ETH AC500 Ethernet Terminal Base

ABB / AC500 AUTOMATION / TB541-ETH

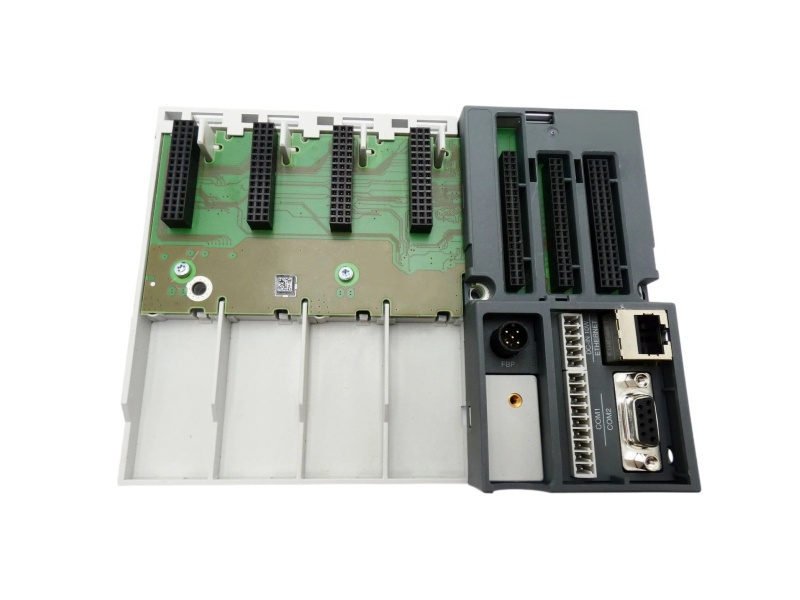

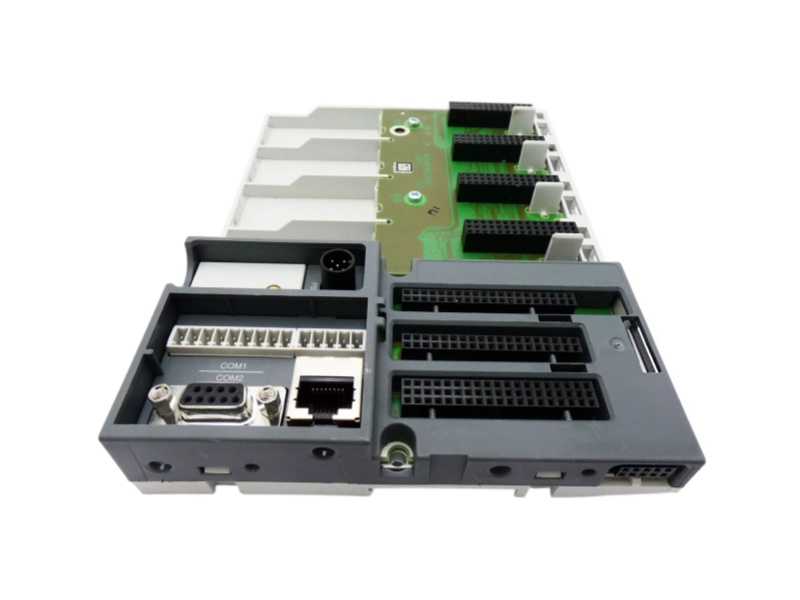

ABB TB541-ETH is an AC500 V2 terminal base with four communication-module slots, one Ethernet interface and two serial interfaces supporting RS-232/RS-485. Confirm the processor generation, installed communication modules and port wiring before replacement.

INTERFACE PROFILE
Ethernet + 2 serial
4 communication-module slots
Order number1SAP114100R0270
Product familyAC500 V2
Device roleCommunication terminal base
Interface profileEthernet + 2 serial
Order check: match TB541-ETH and 1SAP114100R0270; verify AC500 V2 hardware, four communication-module positions, Ethernet connection and both serial-interface assignments.
ONE YEAR WARRANTY  —  FAST DELIVERY  —  WORLDWIDE SHIPPING
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer ABB
Item number TB541-ETH
Country of Origin Switzerland
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
Communication Base Identity

Published checkpoints for ABB TB541-ETH

A concise official-data view of the AC500 V2 terminal base, communication slots and integrated network interfaces.

Order number1SAP114100R0270
Product familyAC500 V2
Device roleCommunication terminal base
Interface profileEthernet + 2 serial
Official ABB product data

Slots, interfaces and platform specifications

12 verified data points
Product typeTerminal base
Supported platformAC500 V2
Communication slots4
Ethernet interface1
Serial interfaces2
Serial standardsRS-232 / RS-485
Primary useCommunication-module base
Product designationTB541-ETH
Order number1SAP114100R0270
Installation referenceTB51x-TB54x instructions
Installation personnelSkilled electricians
Related variantTB541-ETH-XC
Generation boundary

ABB identifies TB541-ETH for AC500 V2; processor generation and communication-module support must be confirmed as one assembly.

Port boundary

The Ethernet and two serial interfaces must be mapped to the existing cables, protocols and cabinet grounding before exchange.

02 · Interface Mapping and Platform Fit

Treat the terminal base as the communications backbone.

A matching outline or connector count does not prove compatibility when the CPU generation, communication modules and serial assignments differ.

Slot planningFour communication-module positions

Record every installed communication module and its slot before removal.

Network planningEthernet plus two serial interfaces

Identify the Ethernet link and document whether each serial connection uses RS-232 or RS-485.

Communication-base verification path
01
Confirm AC500 generation

Record the processor module, firmware context and TB541-ETH order code.

02
Map every slot and port

List four communication-module positions, Ethernet cabling and two serial assignments.

03
Validate installation

Check grounding, cabinet wiring and the ABB TB51x-TB54x installation instructions.

Selection rule: TB541-ETH-XC is a separate extreme-condition variant; do not substitute it for ABB TB541-ETH without checking environmental and system approvals.

Official references: ABB TB541-ETH Product Page · ABB AC500 Installation Instructions

03 · FAQ

Network and replacement answers for ABB TB541-ETH

Specifications · Compatibility · Applications · Lifecycle · Manuals · Quotation
01
How many communication slots and interfaces does ABB TB541-ETH provide?

ABB specifies four slots for communication modules, one Ethernet interface and two serial interfaces supporting RS-232/RS-485.

02
Which controller generation is ABB TB541-ETH designed for?

ABB identifies TB541-ETH as a terminal base for AC500 V2, so confirm the installed processor generation before ordering.

03
What should be mapped before installing ABB TB541-ETH?

Record all four communication-module positions, the Ethernet cable and protocol, and both RS-232/RS-485 serial assignments.

04
Is ABB TB541-ETH-XC an automatic substitute for ABB TB541-ETH?

No automatic substitution should be assumed. TB541-ETH-XC is the separate extreme-condition variant and requires an environmental and system compatibility review.

05
Does the ABB product page guarantee current stock for ABB TB541-ETH?

The official page confirms the article and configuration but does not guarantee distributor stock; request current availability and lead-time verification.

06
What information supports an accurate ABB TB541-ETH quotation?

Send the nameplate, processor-module type, four-slot configuration, Ethernet and serial-port details, quantity, destination and required date.
