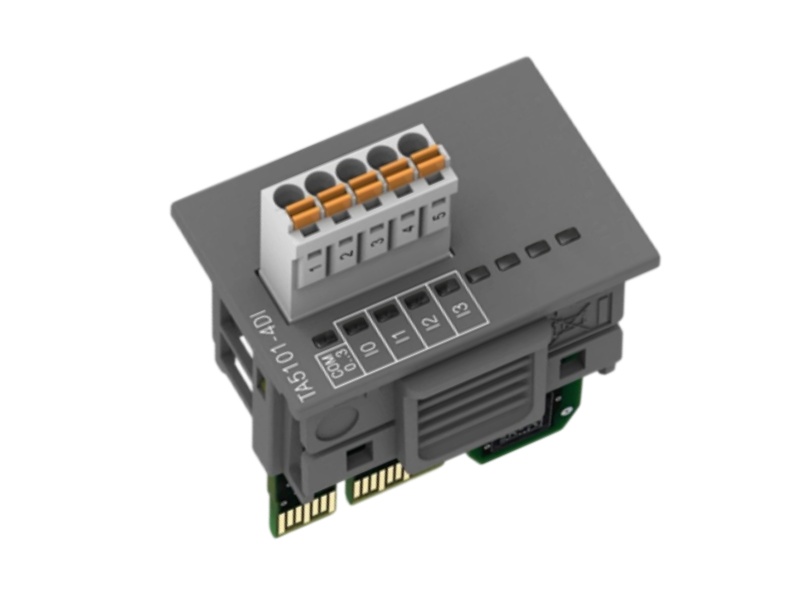

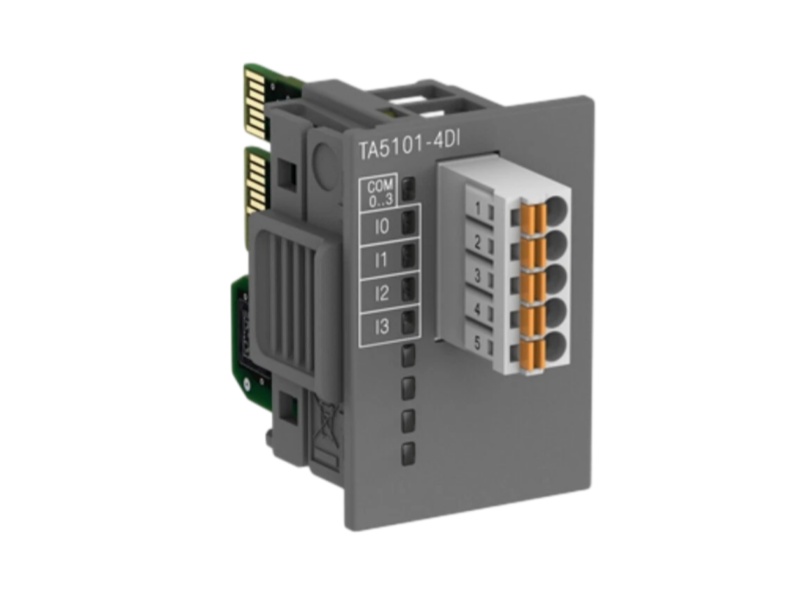

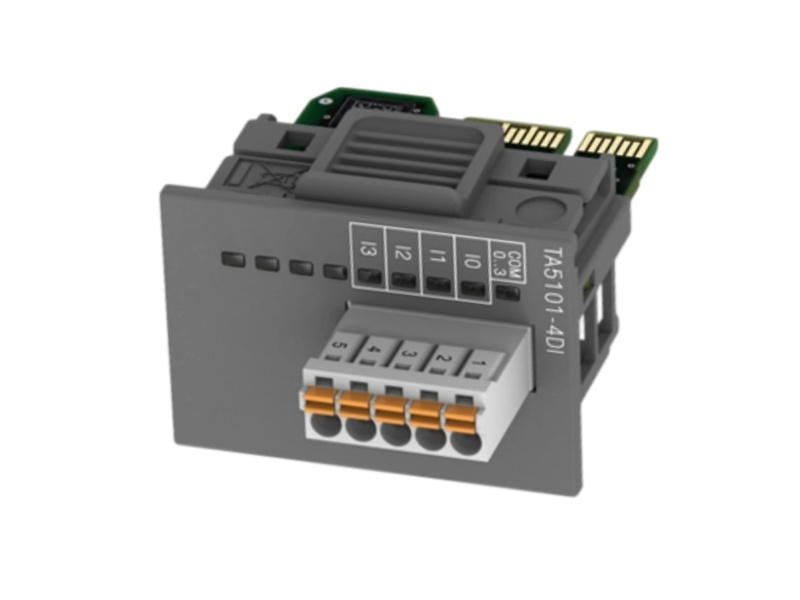

ABB TA5101-4DI Digital Input Option Board

ABB / AC500 AUTOMATION / TA5101-4DI

ABB TA5101-4DI is an AC500-eCo option board with four module-isolated 24 V DC digital inputs, Type 1 source/sink support and an included 5-pin spring terminal. Confirm polarity, CPU compatibility and the correct terminal block before installation.

INPUT PROFILE
4 DI · 24 V DC
Type 1 source/sink · module isolated
Order number1SAP187000R0001
Product familyAC500-eCo
Input profile4 DI · 24 V DC
LifecycleActive
Order check: match TA5101-4DI and 1SAP187000R0001; verify four input polarities, Automation Builder/firmware context, 5-pin input terminal and CPU option-board slot.
ONE YEAR WARRANTY  —  FAST DELIVERY  —  WORLDWIDE SHIPPING
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer ABB
Item number TA5101-4DI
Country of Origin Switzerland
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
Digital Input Option Identity

Published checkpoints for ABB TA5101-4DI

A detailed view of the four-channel option board, polarity, isolation, terminal assignment and cable limits.

Order number1SAP187000R0001
Product familyAC500-eCo
Input profile4 DI · 24 V DC
LifecycleActive
Official ABB product data

Input, electrical and installation specifications

20 verified data points
Digital inputs4
Rated signal24 V DC
Channel grouping1 group of 4
Galvanic isolationInput group to rest of module
Terminal block5-pin spring, included
Terminal pitch3.50 mm
Channel terminals2 to 5
Reference terminal1 · COM 0...3
Input indication1 yellow LED per channel
Input typeEN 61131-2 Type 1 source/sink
Current at 24 VTyp. 5 mA per channel
Leakage-current limit1 mA
Input delayTyp. 8 ms
Input data length1 byte
CPU current consumptionApprox. 10 mA
Maximum dissipation0.8 W
Shielded cable500 m max.
Unshielded cable300 m max.
Weight15 g
MountingHorizontal or vertical
Polarity boundary

TA5101-4DI supports Type 1 source and sink input configurations; the COM reference and field polarity must match the actual sensors.

Terminal boundary

The 5-pin TA5101 input terminal must not be connected to a TA5141/TA5142 serial option board because 24 V can damage the interface.

02 · Polarity, Terminal and CPU Fit
