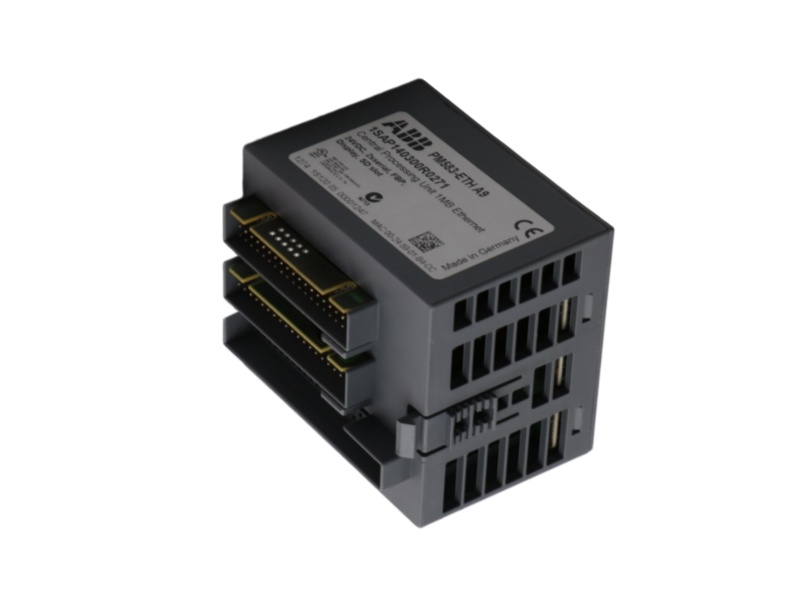

ABB PM583-ETH product image view 1

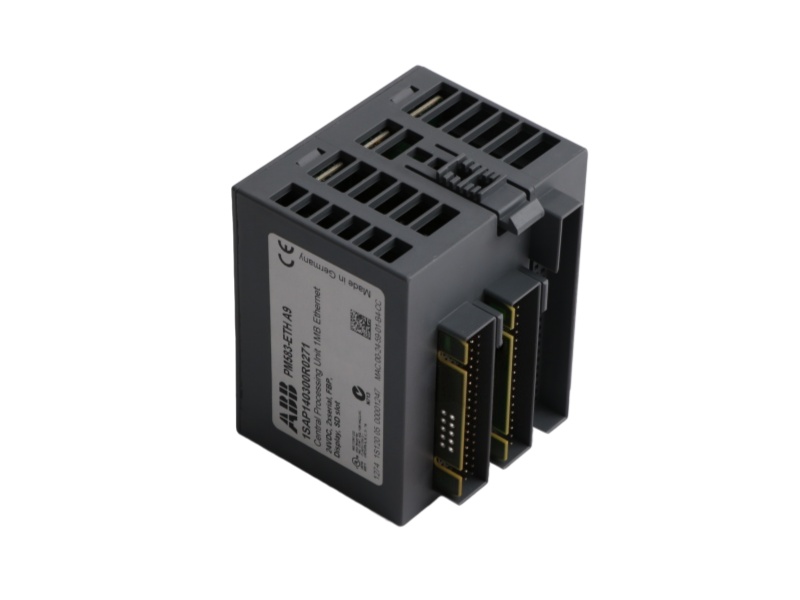

ABB PM583-ETH product image view 2
ABB PM583-ETH product image view 3

ABB PM583-ETH AC500 Processor Module with Ethernet and Dual Serial Interfaces

ABB / PLC
AC500
PM583-ETH
ABB PM583-ETH is an AC500 processor module with 1024 kB program memory, onboard Ethernet, two serial interfaces, FBP connectivity and a diagnostic display.
Platform
AC500
Serial communication
2 × RS-232/485
Operator interface
Display + 8 keys
Confirm terminal-base order code, project firmware and separately ordered storage accessories before replacement.
Program memory1024 kB
LAN10/100BASE-TX
ONE YEAR WARRANTY
FAST DELIVERY
WORLDWIDE SHIPPING
FAST RESPONSE
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer ABB
Item number PM583-ETH
Country of Origin Germany
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code 85389091
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
CPU RESOURCE ENVELOPE
Memory, execution and expansion resources for an established AC500 control system.
Current ABB data distinguishes this CPU from faster PM585 and higher-memory PM59x configurations.
Program memory01
1024 kB
Integrated data memory02
1024 kB
Buffered data area03
288 kB
Processor architecture04
32-bit ARM
Processor clock05
84 MHz
Binary instruction time06
Minimum 0.05 µs
Word instruction time07
Minimum 0.06 µs
Floating-point time08
Minimum 0.50 µs
Central I/O modules09
Up to 10
External communication modules10
Up to 4
Data buffering11
Battery backed
Display controls12
LCD + 8 function keys
Supply voltage
24 V DC
Country of origin
Germany
Catalog weight
0.134 kg
Official lifecycle
Classic
ORDER REVIEW
Verify the R0270 Ethernet terminal base, Automation Builder project, battery adapter and memory-card requirements before ordering.
02
COMMUNICATION ROUTE
Engineering, fieldbus and service access around the CPU.
The processor combines two configurable serial ports with onboard Ethernet services and an FBP connection.

Ethernet services
01
The onboard interface includes a web server, SNTP time service and IEC 60870-5-104 capability.

Serial roles
02
COM1 and COM2 can be configured for programming, Modbus, serial ASCII or CS31-master functions.

FieldBusPlug access
03
The FBP interface supports an additional fieldbus connection through the selected terminal base.

Service storage
04
A separately ordered memory card can carry programs, firmware updates, user files and source code.
Ethernet connector
RJ45
Serial rate
0.3–187.5 kbit/s
RTC accuracy
Typical ±2 s/day
Battery warning
Approx. 2 weeks
Q1
Which terminal base is compatible with ABB PM583-ETH order code 1SAP140300R0271?
ABB states that R0271 processor modules must be used with an R0270 TB5x1-ETH terminal base. Confirm the exact terminal-base order number before replacing the CPU.
Q2
Are the battery and memory card included with ABB PM583-ETH?
No. ABB states that the processor is supplied without the primary lithium battery and memory card. Select the approved battery adapter and memory card separately when the application needs them.
Q3
What network functions are available on ABB PM583-ETH?
The onboard Ethernet interface supports TCP/IP services including the integrated web server, SNTP and IEC 60870-5-104 functions documented by ABB. Project licensing and configuration must still be checked.
Q4
Can ABB PM583-ETH replace another AC500 CPU without project changes?
A direct replacement should not be assumed. Compare program memory, execution performance, terminal base, communication modules, firmware and I/O configuration before transferring the project.
Q5
What lifecycle status does ABB currently assign to PM583-ETH?
ABB lists PM583-ETH in the Classic lifecycle phase. ABB describes Classic modules as available from stock but not recommended for planning and commissioning new installations.
Q6
What information is needed for an ABB PM583-ETH quotation and manual request?
Send the complete order code, CPU and terminal-base nameplates, Automation Builder version, installed communication modules, quantity, destination and delivery requirement.
