ABB PM564-R-AC AC500-eCo PLC

ABB / AC500 AUTOMATION / PM564-R-AC

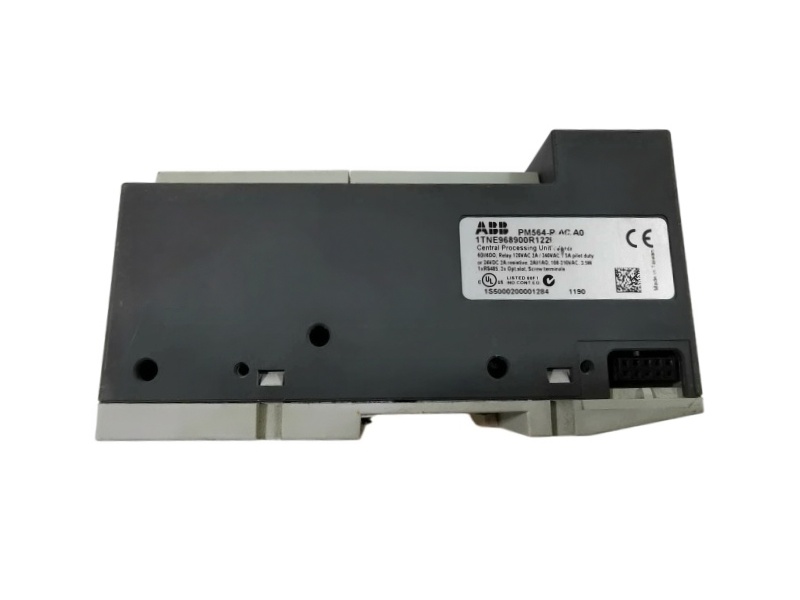

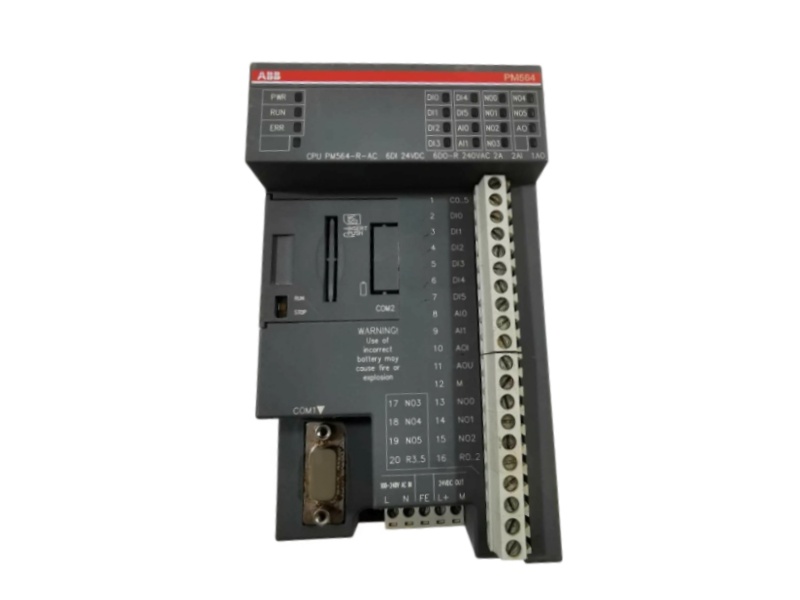

ABB PM564-R-AC is an AC500-eCo processor with 128 kB user program memory, onboard digital and analog I/O, relay outputs and a 100-240 V AC power supply. Confirm the non-Ethernet configuration and the installed field wiring before replacement.

POWER & I/O PROFILE
100-240 V AC
6 DI · 6 DO · 2 AI · 1 AO
Order number1TNE968900R1220
Product familyAC500-eCo
Onboard I/O6 DI / 6 DO / 2 AI / 1 AO
Power supply100-240 V AC
Order check: match PM564-R-AC and 1TNE968900R1220; verify AC supply, six relay outputs, six digital inputs, two analog inputs, one analog output and the absence of onboard Ethernet.
ONE YEAR WARRANTY  —  FAST DELIVERY  —  WORLDWIDE SHIPPING
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer ABB
Item number PM564-R-AC
Country of Origin Switzerland
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
Processor and Onboard I/O Identity

Published checkpoints for ABB PM564-R-AC

A configuration-focused view of processor memory, mixed onboard I/O, relay outputs and AC power input.

Order number1TNE968900R1220
Product familyAC500-eCo
Onboard I/O6 DI / 6 DO / 2 AI / 1 AO
Power supply100-240 V AC
Official ABB product data

CPU, I/O and power-supply specifications

16 verified data points
User program memory128 kB
Digital inputs6
Digital input signal24 V DC
Digital outputs6 relays
Relay voltage24 V DC / 100-240 V AC
Relay current2 A
Analog inputs2
Analog input range0...10 V
Analog input resolution10 bits
Analog outputs1
Analog output ranges0...10 V; 0...20 mA; 4...20 mA
Ethernet interfaceNo
Power supply100-240 V AC
Order number1TNE968900R1220
Product familyAC500-eCo
Alternative AI useAnalog inputs can be configured as digital inputs
Power boundary

PM564-R-AC is the AC-supplied relay version; do not confuse it with 24 V DC or transistor variants.

Network boundary

This order code has no onboard Ethernet interface, so any installed network path must be documented separately.

02 · Power, I/O and Variant Selection

Match the exact PM564 suffix before migrating the CPU.

The R, AC and ETH suffixes change output technology, supply voltage and communications; they are not cosmetic variations.

Electrical configurationRelay outputs with AC supply

Verify 100-240 V AC input, relay field voltages, loads and external protection.

Functional configurationMixed onboard I/O without Ethernet

Map all 6 DI, 6 DO, 2 AI and 1 AO points plus any external communication hardware.

CPU replacement path
01
Decode the suffix

Confirm PM564-R-AC and order code 1TNE968900R1220.

02
Map the onboard I/O

Record every digital, relay and analog channel with its range and field voltage.

03
Check communications

Verify that the installed design does not require the Ethernet-equipped PM564 variants.

Selection rule: PM564-R, PM564-T and PM564-R-ETH-AC have different supply, output or Ethernet configurations; none is an automatic drop-in substitute for ABB PM564-R-AC.

Official references: ABB AC500-eCo Product Brochure · ABB AC500 Technical Data

03 · FAQ

Power and configuration answers for ABB PM564-R-AC

Specifications · Compatibility · Applications · Lifecycle · Manuals · Quotation
01
What onboard I/O does ABB PM564-R-AC provide?

ABB lists 6 digital inputs, 6 relay outputs, 2 analog inputs and 1 analog output for this order code.

02
Which supply and relay ratings apply to ABB PM564-R-AC?

The CPU uses a 100-240 V AC supply; its relay outputs are listed for 24 V DC or 100-240 V AC at 2 A.

03
Does ABB PM564-R-AC include an Ethernet interface?

No. The official AC500-eCo table marks the Ethernet interface absent for this exact PM564-R-AC order code.

04
Can the analog inputs on ABB PM564-R-AC be used as digital inputs?

Yes. ABB notes that the analog inputs on PM564 CPUs can be configured as digital inputs; preserve the application configuration during replacement.

05
Can an Ethernet or 24 V DC PM564 variant replace ABB PM564-R-AC directly?

No direct interchange should be assumed because supply voltage, output technology and Ethernet availability vary by complete suffix and order code.

06
What should be supplied for an ABB PM564-R-AC quotation?

Provide the nameplate, program and firmware context, AC supply, complete onboard I/O map, external modules, quantity and destination.
