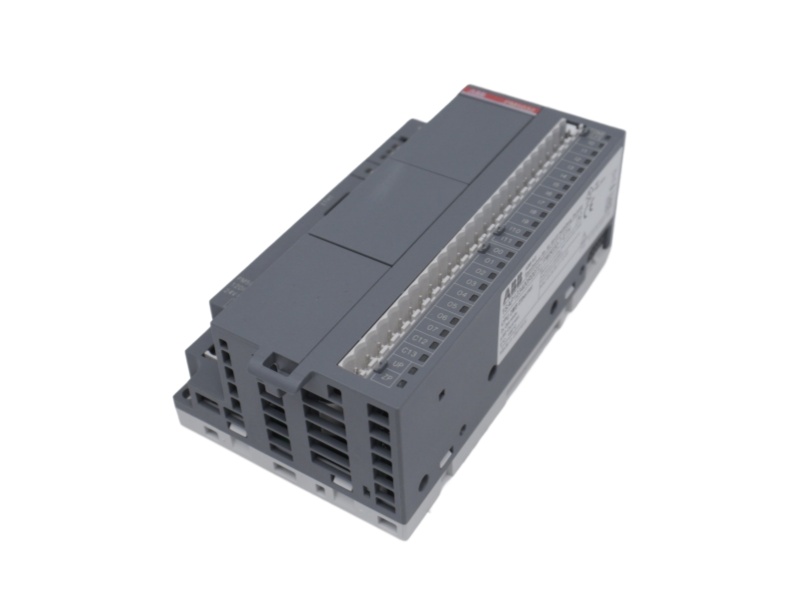

ABB PM5032-T-ETH product image view 1

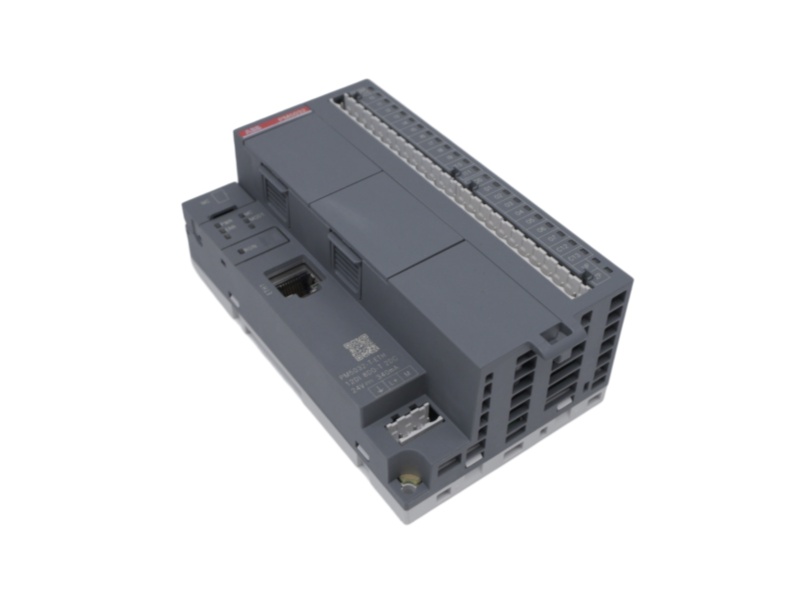

ABB PM5032-T-ETH product image view 2
ABB PM5032-T-ETH product image view 3

ABB PM5032-T-ETH AC500-eCo V3 Standard CPU with Transistor Outputs and Ethernet

ABB / PLC
AC500-ECO V3
PM5032-T-ETH
ABB PM5032-T-ETH is an AC500-eCo V3 standard CPU with onboard digital inputs, transistor outputs, Ethernet and two option-board slots for compact machine control.
CPU class
Standard V3
Output type
8 transistor + 2 configurable
Network
1 Ethernet interface
Confirm the R0172 revision, Automation Builder level, onboard-I/O map and load protection before replacement.
Memory2 MB
PTO200 kHz max.
ONE YEAR WARRANTY
FAST DELIVERY
WORLDWIDE SHIPPING
FAST RESPONSE
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer ABB
Item number PM5032-T-ETH
Country of Origin Germany
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code 85371091
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
FAST I/O ENVELOPE
Onboard transistor channels and memory resources for compact machine control.
The R0172 configuration adds revision-controlled fast-output behavior while retaining the standard PM5032 CPU resource class.
Global user memory01
2 MB
Program code and data02
512 kB
Maximum web memory03
Approx. 1.5 MB
Digital inputs04
12 × 24 V DC
Transistor outputs05
8 × 24 V DC
Configurable transistor I/O06
2 × 24 V DC
Output groups07
1 group of 8
Rated current per channel08
0.5 A
Maximum group current09
4 A
PTO channels10
Up to 4
Fast-output ceiling11
200 kHz on R017x
Option-board slots12
2
Supply voltage
24 V DC
Country of origin
Germany
Catalog weight
0.253 kg
Official lifecycle
Active
ORDER REVIEW
Verify hardware revision, engineering software, PTO assignment, output load and external protection before ordering.
02
MOTION I/O ROUTE
From high-speed input events to protected field wiring.
Fast counting and PTO functions share onboard terminals with the standard digital-I/O resources and must be assigned deliberately.

Encoder inputs
01
Selected inputs support A/B encoder, frequency and counter functions for compact motion tasks.

Touch and reset
02
Dedicated fast inputs can capture touch or reset events alongside the selected encoder configuration.

PTO assignment
03
Revision 1 supports pulse/direction or clockwise/counter-clockwise output pairs through the designated channels.

Load protection
04
The transistor outputs are not short-circuit or overload protected and require external circuit coordination.
Engineering minimum
Automation Builder 2.6.0
Output operation
Non-latching
Shielded cable
Up to 500 m
Parallel outputs
Not permitted
Q1
What software is required for ABB PM5032-T-ETH order code 1SAP123400R0172?
ABB requires Automation Builder 2.6.0 or later for revision 1 R0172 hardware. Existing projects created with an earlier version must be upgraded before this CPU is used.
Q2
Which fast-output change applies to ABB PM5032-T-ETH R0172?
ABB documents up to 200 kHz PTO operation on revision 1 hardware, compared with the lower limit on R0072. The project must use the supported engineering and firmware level.
Q3
Are ABB PM5032-T-ETH transistor outputs protected against short circuit?
No. ABB states that the onboard transistor outputs are not short-circuit or overload protected. External protection and load-specific demagnetization are required.
Q4
Can ABB PM5032-T-ETH be used for compact positioning tasks?
Yes, when the onboard fast inputs and PTO channels meet the axis requirements. Encoder, touch/reset and pulse-direction assignments must be configured in the project.
Q5
Can ABB PM5032-T-ETH R0172 directly replace an R0072 CPU?
ABB positions R0172 as the replacement revision, but the exchange requires Automation Builder and firmware checks plus verification of the I/O, option boards and application settings.
Q6
What should be sent for an ABB PM5032-T-ETH quotation and technical literature?
Send the complete order code, existing revision, project software version, required fast-I/O functions, terminal-block details, quantity, destination and delivery date.
