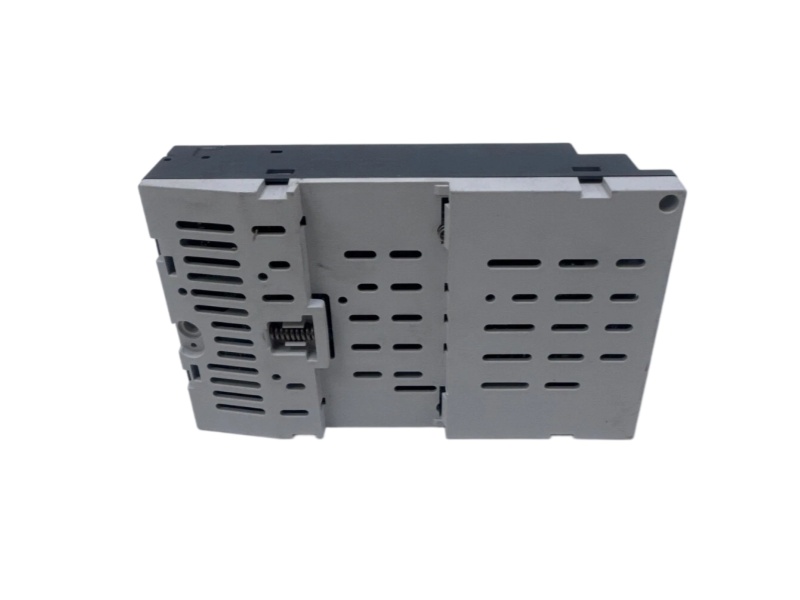

ABB PM5032-R-ETH product image view 1

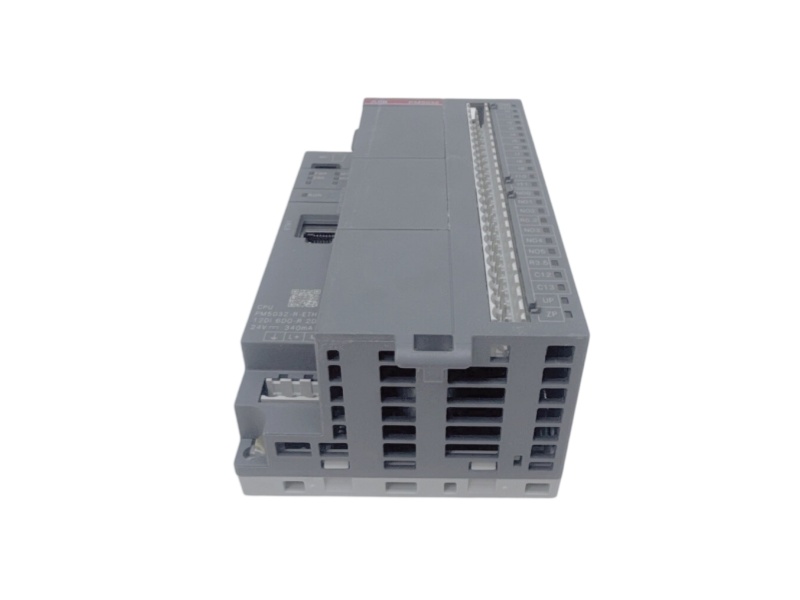

ABB PM5032-R-ETH product image view 2
ABB PM5032-R-ETH product image view 3

ABB PM5032-R-ETH AC500-eCo V3 Standard CPU with Relay Outputs and Ethernet

ABB / PLC
AC500-ECO V3
PM5032-R-ETH
ABB PM5032-R-ETH is an AC500-eCo V3 standard CPU with onboard digital inputs, relay outputs, configurable transistor channels, Ethernet and two option-board slots.
CPU class
Standard V3
Output type
6 relay + 2 configurable
Expansion
AC500 I/O bus
Confirm revision R0172, relay load, external protection and the Automation Builder version before replacement.
Memory2 MB
Option slots2
ONE YEAR WARRANTY
FAST DELIVERY
WORLDWIDE SHIPPING
FAST RESPONSE
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer ABB
Item number PM5032-R-ETH
Country of Origin Germany
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code 85371091
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
RELAY CPU ENVELOPE
Processor resources and relay-channel limits for the R0172 configuration.
The official parameter set identifies the current hardware revision and keeps relay ratings separate from transistor fast-output functions.
Global user memory01
2 MB
Program code and data02
512 kB
Maximum web memory03
Approx. 1.5 MB
Digital inputs04
12 × 24 V DC
Relay outputs05
6 normally open
Configurable transistor I/O06
2 × 24 V DC
Relay groups07
2 groups of 3
Rated current per channel08
2 A
Rated current per group09
6 A
Maximum total current10
12 A
Contact life11
100,000 cycles at rated load
Typical output delay12
10 ms
Ethernet interfaces
1
Country of origin
Germany
Catalog weight
0.268 kg
Official lifecycle
Active
ORDER REVIEW
Confirm processor revision, relay voltage and load type, external suppression, fuse protection and project compatibility before ordering.
02
OUTPUT SELECTION PATH
Relay duty, protection and revision checks before field connection.
Contact capability depends on the connected load, while the configurable channels support separate fast-I/O functions.

Load qualification
01
Match resistive, pilot-duty and inductive loads to the ABB relay contact limits before wiring.

External protection
02
Relay contacts are not short-circuit or overload protected and require a suitable fuse or circuit breaker.

Inductive switching
03
External demagnetization and AC spark suppression must follow the connected load specification.

Revision control
04
R0172 hardware requires Automation Builder 2.6.0 or later and the corresponding firmware strategy.
Relay voltage range
5–30 V DC / 5–250 V AC
Protection fuse
5 A fast per channel
Shielded cable
Up to 500 m
Unshielded cable
Up to 150 m
Q1
What distinguishes ABB PM5032-R-ETH R0172 from the earlier R0072 revision?
R0172 is ABB revision 1 and is the current Active order configuration. ABB lists R0072 as Classic and replaced by revision 1; the project must use Automation Builder 2.6.0 or later for R0172 support.
Q2
Can ABB PM5032-R-ETH drive inductive relay loads directly?
The contacts can switch approved loads, but ABB requires external demagnetization or spark-suppression measures for inductive loads. Short-circuit and overload protection must also be provided externally.
Q3
Which option-board capacity is available on ABB PM5032-R-ETH?
This standard AC500-eCo V3 CPU has two option-board slots. Select only boards supported by the exact processor revision and Automation Builder project.
Q4
Is ABB PM5032-R-ETH a drop-in replacement for another AC500-eCo CPU?
No universal drop-in replacement should be assumed. Compare onboard I/O type, terminal assignments, relay load, option boards, firmware and project version before exchange.
Q5
Which applications suit ABB PM5032-R-ETH?
It suits compact control systems that need onboard 24 V digital inputs, isolated relay contacts for mixed-voltage loads, Ethernet communication and central I/O expansion.
Q6
How should an ABB PM5032-R-ETH quotation or manual be requested?
Provide model PM5032-R-ETH, order code 1SAP123500R0172, existing revision, Automation Builder version, relay load details, quantity, destination and required delivery date.
