ABB DC523 24-Channel Configurable Digital I/O Module

ABB / AC500 AUTOMATION / DC523

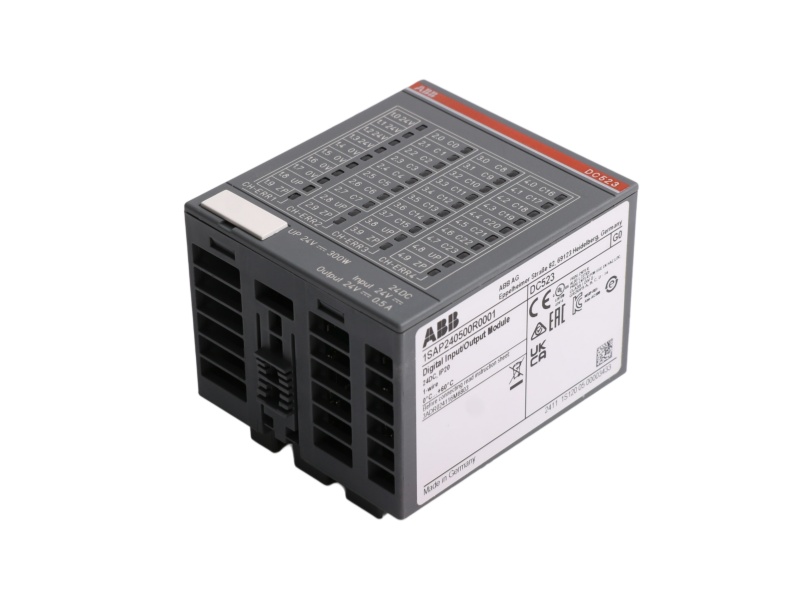

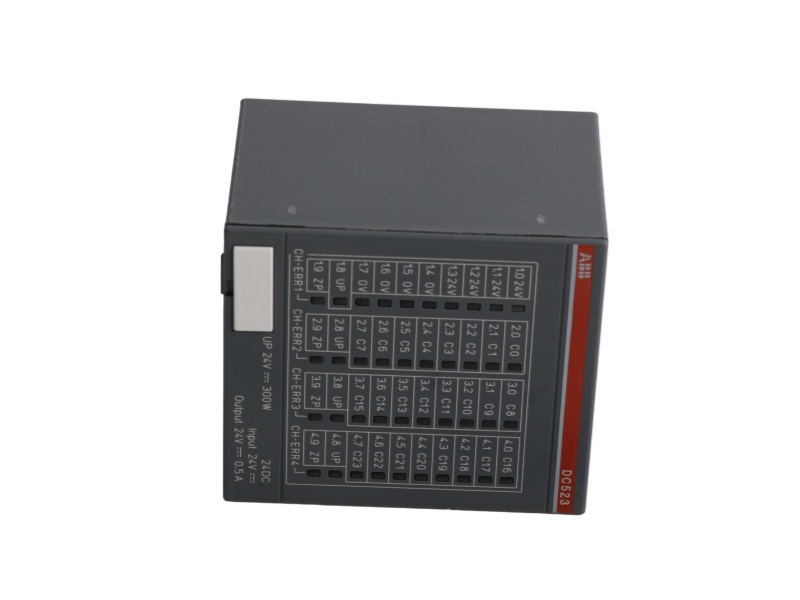

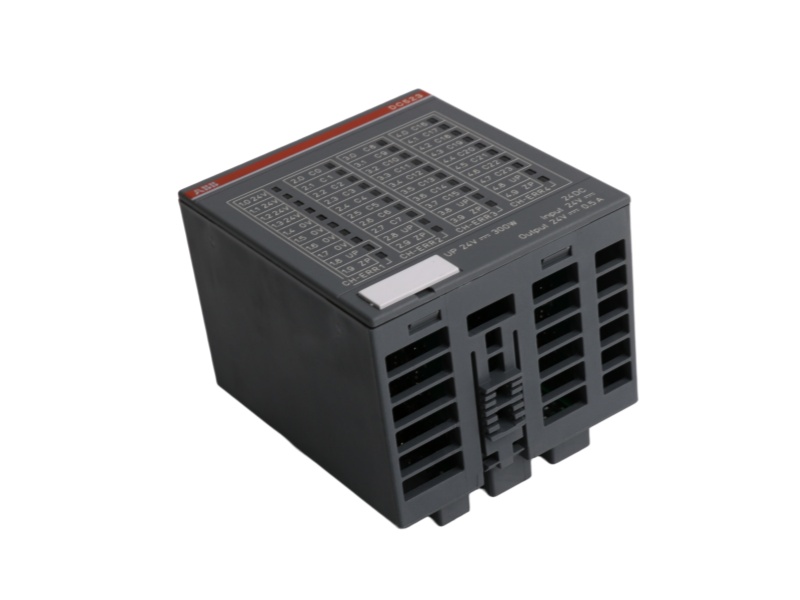

ABB DC523 is an S500 digital input/output module with 24 user-configurable 24 V DC channels rated up to 0.5 A when used as outputs. Match the terminal unit, one-wire field design and channel allocation before replacement.

I/O PROFILE
24 configurable channels
24 V DC · 0.5 A per output
Order number1SAP240500R0001
Product familyAC500 / S500
Device role24-channel configurable digital I/O
LifecycleActive
Order check: match DC523 and 1SAP240500R0001; verify every DI/DO assignment, 24 V DC process supply, output loads, fast-counter use and terminal-unit wiring.
ONE YEAR WARRANTY  —  FAST DELIVERY  —  WORLDWIDE SHIPPING
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer ABB
Item number DC523
Country of Origin Switzerland
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
Configurable Digital I/O Identity

Published checkpoints for ABB DC523

A focused view of the 24 configurable channels, one-wire architecture, output rating and status indication.

Order number1SAP240500R0001
Product familyAC500 / S500
Device role24-channel configurable digital I/O
LifecycleActive
Official ABB product data

Digital channel, supply and installation specifications

16 verified data points
Configurable channels24 DI/DO
Rated signal voltage24 V DC
Output rating0.5 A per channel
Wiring principle1-wire
Galvanic isolationModule-wise
Fast counterSupported
Channel LEDs24 yellow LEDs
Process-supply LED1 green LED
Error LEDs4 red LEDs
Auxiliary 0 V4 terminals
Auxiliary 24 V DC4 terminals
Channel labelsC0 ... C23
Process supply symbolUP
System platformS500
Mounting interfaceTerminal unit and DIN rail
Product statusActive
Configuration boundary

Each channel is defined as an input or output by the user program; the installed allocation must be recorded before exchange.

Load boundary

A channel used as an output must remain within the published 24 V DC / 0.5 A rating and the complete group load must be checked.

02 · Channel Planning and Terminal Match

Map the installed I/O before selecting a replacement.

Matching the module code alone is not enough when every channel may serve a different input, output or counter function.

I/O allocation24 user-configurable channels

Document the DI/DO assignment and fast-counter channels used by the existing program.

Hardware contextTerminal unit and process supply

Confirm the S500 terminal unit, one-wire field terminals, auxiliary supply points and cabinet mounting.

Replacement verification path
01
Identify the article

Record DC523, 1SAP240500R0001 and the full nameplate.

02
Map all 24 channels

List input sensors, output loads, fast-counter use and program assignments.

03
Validate the assembly

Check 24 V DC supply, terminal unit, load current, wiring and diagnostics.

Selection rule: DC523-XC 1SAP440500R0001 is the extreme-condition version; it is not an automatic substitute for standard ABB DC523.

Official references: ABB DC523 Product Page · ABB DC523 Data Sheet · ABB DC523 Online Help

03 · FAQ

Configuration and purchasing answers for ABB DC523

Specifications · Compatibility · Applications · Lifecycle · Manuals · Quotation
01
How are the 24 channels on ABB DC523 assigned?

The user program defines each of the 24 channels as a digital input or digital output, so the installed channel map must be preserved during replacement.

02
What voltage and output rating apply to ABB DC523?

ABB specifies 24 V DC configurable DI/DO channels with a 0.5 A output rating per channel; verify the complete load and protection design.

03
Which installation details determine compatibility for ABB DC523?

Confirm the S500 terminal unit, one-wire field connections, process supply, channel allocation and any fast-counter use before ordering.

04
Can ABB DC523-XC replace ABB DC523 without an engineering review?

No automatic interchangeability should be assumed. DC523-XC is the extreme-condition version and the environmental approvals and installed assembly must be checked.

05
What lifecycle and replacement information is published for ABB DC523?

ABB lists 1SAP240500R0001 as Active and also lists the separate DC523-XC variant; the cited data sheet does not name a direct successor.

06
What should be included in a quotation request for ABB DC523?

Send the nameplate, order code, terminal-unit model, DI/DO map, output loads, quantity, destination and required delivery date.
