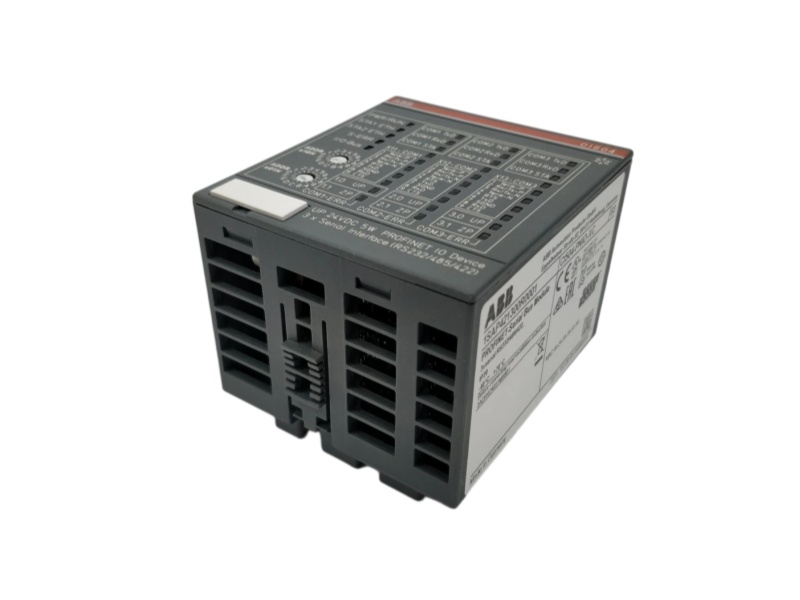

ABB CI504-PNIO S500 communication interface module view 1

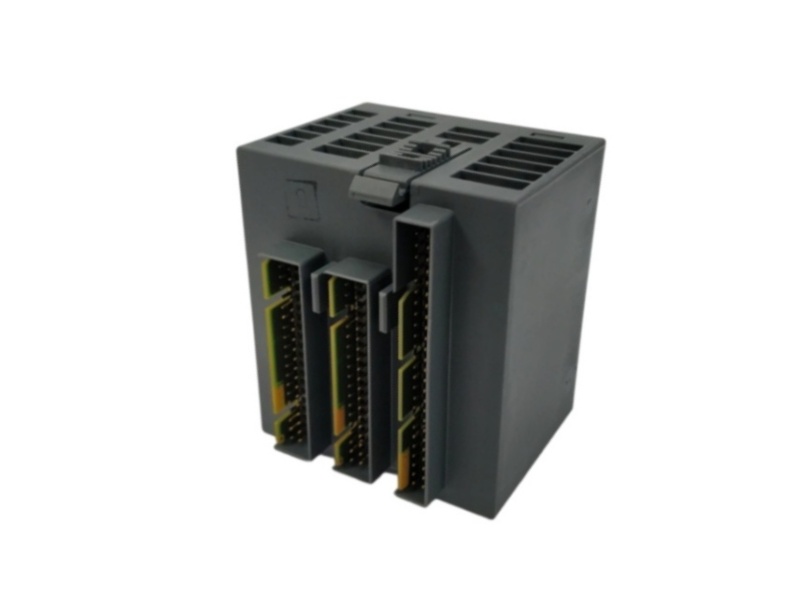

ABB CI504-PNIO S500 communication interface module view 2
ABB CI504-PNIO S500 communication interface module view 3

ABB CI504-PNIO S500 PROFINET IO RT Communication Interface Module with 3 Serial Ports

ABB / PLC
S500
CI504-PNIO
ABB CI504-PNIO is an S500 PROFINET IO RT communication interface module with three serial UART ports and capacity for distributed AC500 I/O expansion.
Network role
PROFINET IO RT
Serial ports
3 UART interfaces
I/O expansion
Up to 10 modules
Confirm the TU520-ETH terminal unit, device name and serial-port wiring before replacement.
Ethernet2 × RJ45
Minimum cycle1 ms
ONE YEAR WARRANTY
FAST DELIVERY
WORLDWIDE SHIPPING
FAST RESPONSE
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer ABB
Item number CI504-PNIO
Country of Origin Germany
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code 85389091
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
，01
NETWORK AND SERIAL ENVELOPE
PROFINET communication and three isolated serial channels in one interface module.
ABB technical data separates Ethernet behavior, serial communication and terminal-unit requirements for exact station planning.
Ethernet technology01
100BASE-TX
Transfer rate02
10/100 Mbit/s full-duplex
Integrated switch03
Yes
Conformance class04
CC B
Input data length05
0–36 bytes
Output data length06
0–36 bytes
Serial physical layers07
RS-232 / RS-422 / RS-485
Serial protocol08
ASCII
Serial data rate09
300 bit/s–115.2 kbit/s
Device identifier10
2 rotary switches, 00h–FFh
Operation/error displays11
18 LEDs
Maximum power dissipation12
5 W
Required terminal unit
TU520-ETH
Country of origin
Germany
Module weight
Approx. 0.125 kg
Official lifecycle
Active
ORDER REVIEW
Match the terminal unit, configured PROFINET device name, I/O sequence and each serial interface before ordering.
02
COMMISSIONING PATH
From device naming to cyclic data exchange.
The interface is commissioned as a PROFINET device while its serial channels remain independently wired and configured.

Device naming
01
The two front rotary switches can generate an explicit PROFINET device identifier before commissioning.

Network services
02
The module supports real-time cyclic and acyclic communication, discovery/configuration and LLDP.

Alarm handling
03
Process, diagnostic, plug, pull and return-of-submodule alarms support station-level service decisions.

Serial separation
04
Each serial port is isolated from the other ports and from the Ethernet network.
Redundancy role
MRP client
Acyclic transfer
Up to 1024 bytes
Ethernet standard
IEEE 802.3
Cooling
Natural convection
Q1
Which terminal unit must be used with ABB CI504-PNIO?
ABB specifies TU520-ETH for CI504-PNIO. The terminal unit carries the two Ethernet connectors, power terminals and removable serial connectors, so it must be included in the configuration check.
Q2
Can ABB CI504-PNIO be exchanged without rewiring the terminal unit?
ABB states that CI504-PNIO can be replaced without rewiring TU520-ETH. Power must still be removed, and the device name, I/O sequence and serial assignments must be restored correctly.
Q3
Where does ABB CI504-PNIO fit in an AC500 architecture?
CI504-PNIO is used as a PROFINET IO device that couples an S500 station to the network while providing local I/O-bus expansion and serial ASCII communication.
Q4
How should a replacement ABB CI504-PNIO be named before startup?
Use the configured engineering name or the explicit identifier generated by the front rotary switches. ABB notes that switch changes take effect only after the next power-up.
Q5
Is ABB CI504-PNIO still an active product?
Yes. ABB lists order code 1SAP221300R0001 in the Active lifecycle phase. Availability, condition and delivery should still be confirmed for the requested quantity.
Q6
What should a buyer send for an ABB CI504-PNIO manual and quotation?
Send the complete model and order code, terminal-unit reference, serial-port usage, installed I/O list, quantity, destination and required delivery date so the literature and quotation match the station.
