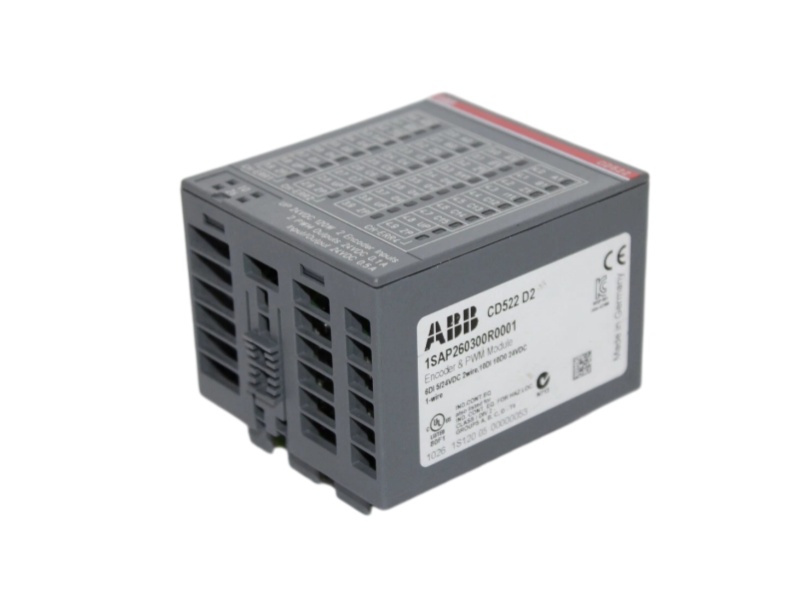

ABB CD522 product image view 1

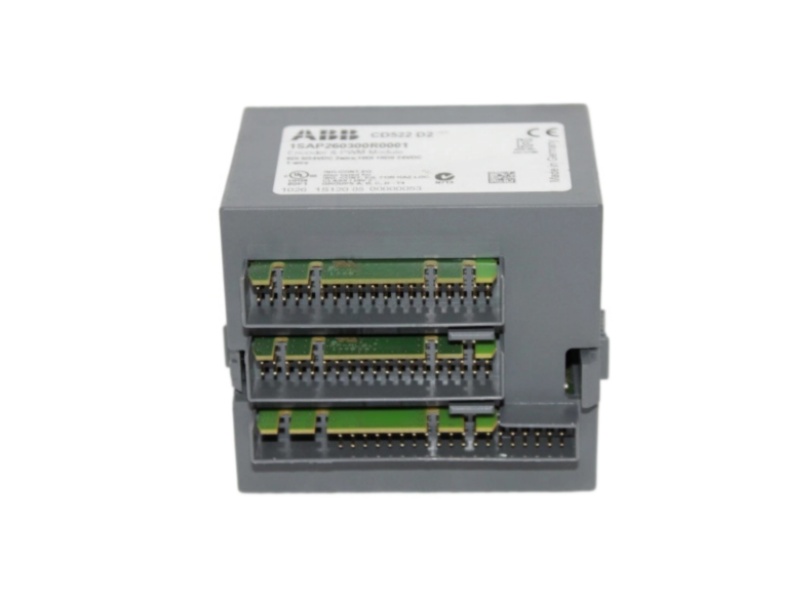

ABB CD522 product image view 2
ABB CD522 product image view 3

ABB CD522 S500 Encoder Counter and PWM Function Module

ABB / PLC
S500
CD522
ABB CD522 is an S500 function module for two encoder channels, two PWM or pulse outputs and configurable digital signals in fast counting applications.
Function
Encoder and PWM
Encoder channels
2 independent
Digital flexibility
8 configurable I/O
Verify encoder signal type, terminal-unit wiring and configured counting mode before commissioning.
Counter300 kHz max.
Process supply24 V DC
ONE YEAR WARRANTY
FAST DELIVERY
WORLDWIDE SHIPPING
FAST RESPONSE
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer ABB
Item number CD522
Country of Origin Germany
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code 85389091
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
MOTION SIGNAL ENVELOPE
Counter, encoder and pulse resources for position and frequency tasks.
The selected ABB values describe the module channels and timing functions rather than the connected sensor or terminal unit.
Encoder inputs01
2
Encoder supplies02
2 × 5 V DC
Supply current03
100 mA each
Counting modes04
Up to 12
Fast counter frequency05
Up to 300 kHz
Frequency measurement06
Up to 5 kHz
PWM outputs07
2
PWM frequency08
1 Hz–100 kHz
Pulse frequency09
1 Hz–15 kHz
Dedicated digital inputs10
2 × 24 V DC
Configurable digital I/O11
8 × 24 V DC
Power dissipation12
6 W unloaded
Terminal units
TU515 / TU516
Country of origin
Germany
Module weight
Approx. 0.125 kg
Official lifecycle
Active
ORDER REVIEW
Confirm encoder voltage, channel mode, sensor supply, terminal unit and Automation Builder parameterization before ordering.
02
SIGNAL WORKFLOW
From encoder feedback to deterministic pulse control.
Dedicated and configurable channels can be assigned to counting, referencing and output functions according to the motion task.

Position feedback
01
Incremental and SSI encoder modes support position-oriented machine functions.

Event capture
02
Touch, set, reset and reference-point inputs can be assigned to specific counter operations.

Output behavior
03
Push-pull drivers provide pulse-width-modulated or counted pulse signals for connected equipment.

Channel protection
04
Configurable outputs include current limitation and automatic reactivation after overload or short circuit.
Single-counter mode
32 bit
Dual-counter mode
16 bit each
PWM duty range
0–100%
Input type
EN 61131-2 Type 1
Q1
Which encoder types can ABB CD522 process?
ABB documents incremental position, absolute SSI, differential and sinusoidal encoder functions among the available operating modes. The selected mode and electrical signal must match the installed encoder.
Q2
Which terminal unit is required for ABB CD522?
ABB specifies TU515 or TU516. Both expose the 40 connections used by the encoder, digital and pulse channels; choose the screw or spring-terminal version required by the panel.
Q3
Can ABB CD522 be used as ordinary digital I/O when channels are not assigned to counting?
Yes. ABB states that unused configurable inputs and outputs can operate with the standard digital-channel specifications, subject to the selected parameterization and wiring.
Q4
What must be checked before replacing ABB CD522 in an existing machine?
Verify the module index, encoder interface, counting mode, reference inputs, PWM or pulse setup and terminal wiring. Do not assume that the XC version or another function module is a drop-in substitute.
Q5
Is ABB CD522 suitable for centralized and remote S500 stations?
Yes. ABB documents use with AC500 processors and S500 communication interface modules, including remote station configurations, provided the master and terminal unit support the module.
Q6
How can a buyer request ABB CD522 documentation and pricing?
Provide model CD522, order code 1SAP260300R0001, the installed terminal unit, encoder type, required condition, quantity and destination. This supports an exact technical and commercial review.
