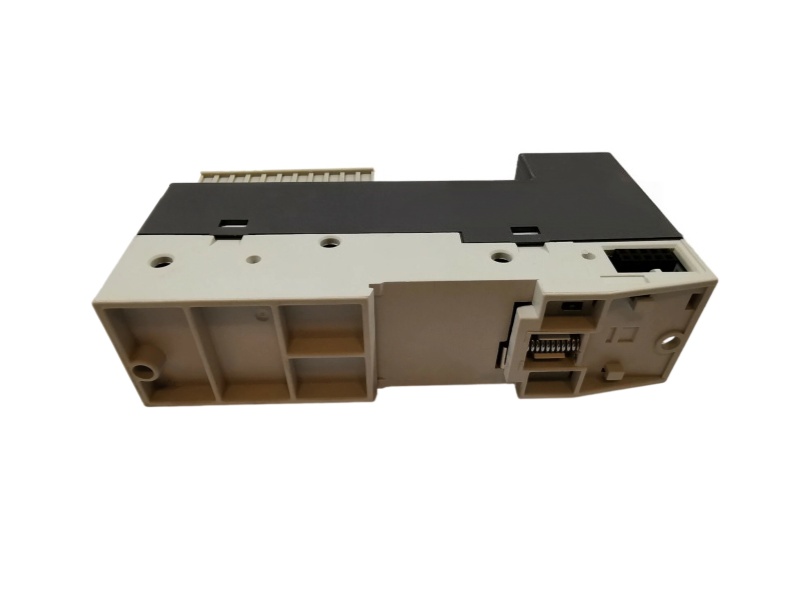

ABB AO561 product image view 1

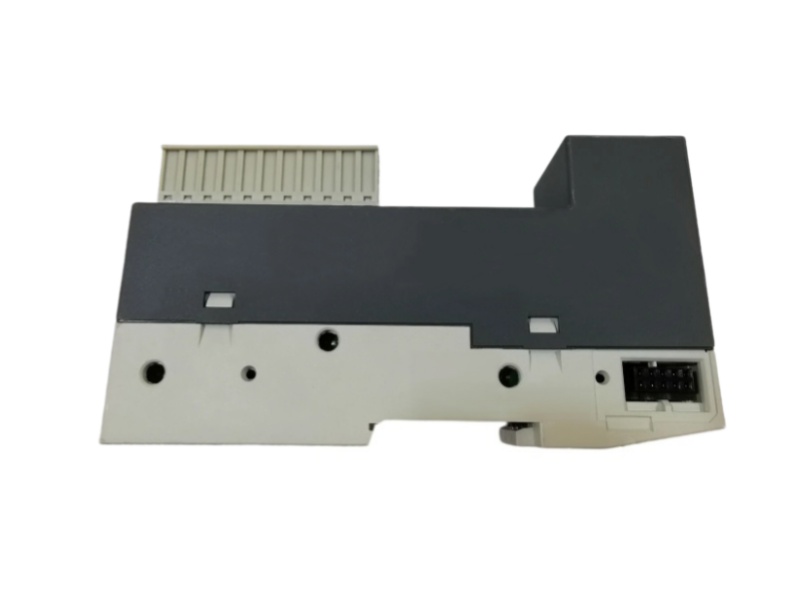

ABB AO561 product image view 2
ABB AO561 product image view 3

ABB AO561 S500-eCo 2-Channel Voltage and Current Analog Output Module

ABB / PLC
S500-ECO
AO561
ABB AO561 is an S500-eCo analog output module with two individually configurable voltage or current channels for centralized or distributed AC500 I/O.
Analog outputs
2 configurable
Voltage mode
-10 V to +10 V
Current modes
0–20 mA / 4–20 mA
Confirm the module version, selected output mode, 11-pin terminal block, load and shield arrangement before wiring.
Resolution12 / 13 bit
Process supply24 V DC
ONE YEAR WARRANTY
FAST DELIVERY
WORLDWIDE SHIPPING
FAST RESPONSE
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer ABB
Item number AO561
Country of Origin Germany
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code 85371091
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
ANALOG SIGNAL ENVELOPE
Two configurable output channels for voltage and current commands.
ABB channel data separates the bipolar voltage path from the two unipolar current ranges and their load limits.
Output channels01
2
Channel groups02
1 group
Bipolar voltage03
-10 V to +10 V
Unipolar current04
0–20 mA
Live-zero current05
4–20 mA
Voltage resolution06
12 bits incl. sign
E0+ voltage resolution07
13 bits incl. sign
Current resolution08
12 bits
Current-output load09
0–500 Ω
Voltage-output load10
±2 mA maximum
Output data length11
4 bytes
Shielded cable length12
Up to 100 m
Output terminal
11-pin block, separate
Country of origin
Germany
Module weight
Approx. 0.120 kg
Official lifecycle
Active
ORDER REVIEW
Verify hardware version, channel mode, load resistance, terminal assignment, process supply and cable shielding before ordering.
02
CHANNEL CONNECTION
Mode selection and terminal discipline for clean analog commands.
Voltage and current signals use separate positive terminals while both channels share a defined negative connection.

Mode assignment
01
Each channel is configured as unused, bipolar voltage, standard current or live-zero current.

Unused terminals
02
When a channel is unused, its voltage and current outputs are undefined and must remain disconnected.

Supply behavior
03
If L+ falls below the documented threshold, the output becomes undefined and the application must account for ramp behavior.

EMC practice
04
Long analog runs require shielded, grounded cable and appropriate equipotential bonding.
Voltage terminals
13 / 15
Current terminals
14 / 16
Common negative
Terminal 17
Isolation between outputs
No
Q1
Which terminal block is required for ABB AO561?
ABB lists TA563-11, TA564-11 and TA565-11 as compatible 11-pin terminal blocks. They are ordered separately and provide different screw, spring and cable-entry arrangements.
Q2
How does hardware version E0 affect ABB AO561 resolution?
ABB specifies 13-bit resolution including sign for the bipolar voltage range on version E0 or later. Earlier versions use 12 bits including sign, so the module index must be checked.
Q3
Can voltage and current terminals be connected at the same time on ABB AO561?
No. Only the terminal associated with the configured mode should be used. ABB states that the unselected output path is undefined and must not be connected.
Q4
Can ABB AO561 operate in centralized and distributed AC500 I/O?
Yes. ABB documents centralized expansion with AC500 CPUs and decentralized expansion with supported S500 communication interfaces, subject to the station compatibility rules.
Q5
Does ABB AO561 support hot swapping?
No. ABB states that AO561 hot swap is not supported. Power and process voltage must be removed before the module or terminal block is connected, removed or replaced.
Q6
What information should accompany an ABB AO561 quotation and manual request?
Send order code 1TNE968902R1201, module index, selected signal ranges, load details, terminal-block preference, quantity, destination and required delivery date.
