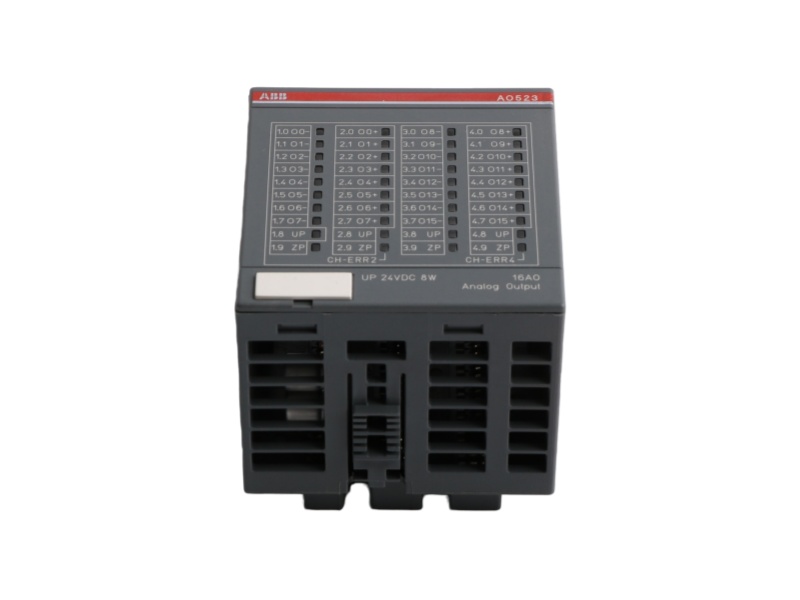

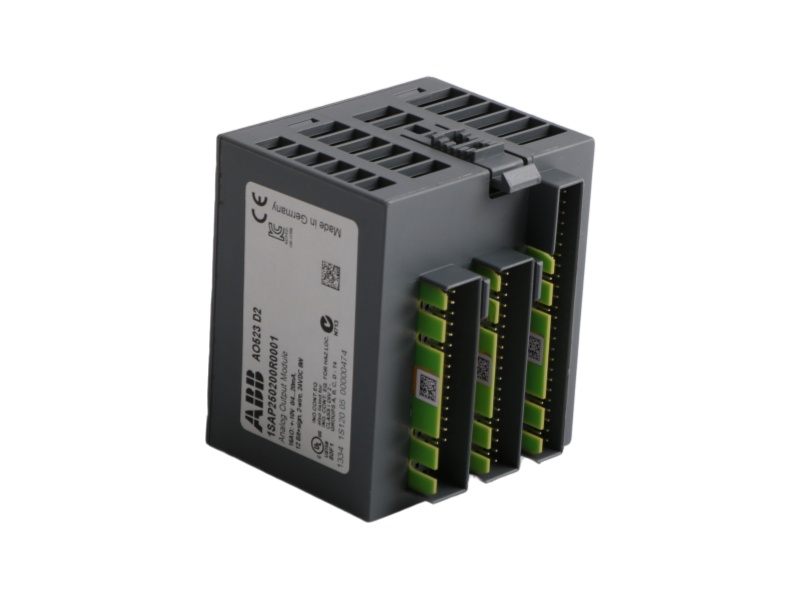

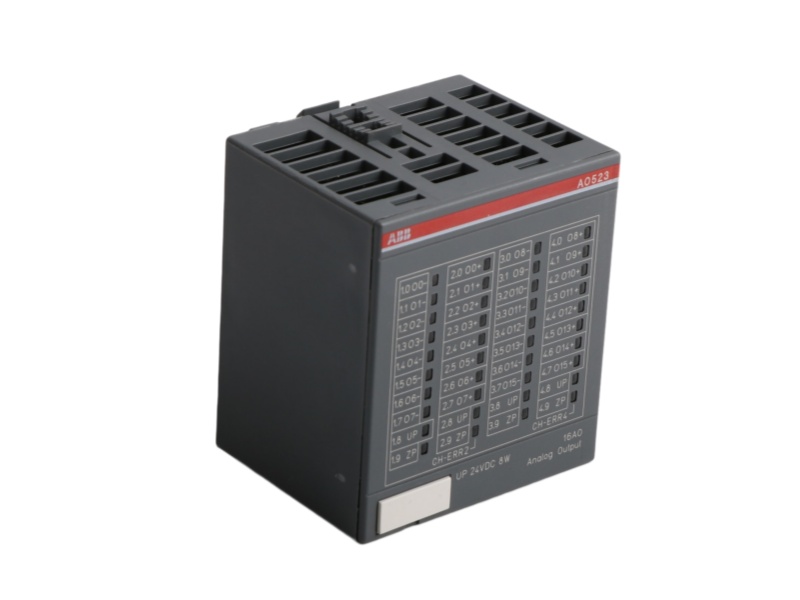

ABB AO523 16-Channel Analog Output Module

ABB / AC500 / MULTI-RANGE ANALOG OUTPUT

ABB AO523 is a 16-channel S500 analog output module with individually configurable voltage and selected current outputs. Confirm which channels require current mode, the field load and the S500 terminal unit before replacement.

OUTPUT PROFILE
16 analog outputs
±10 V · 0/4...20 mA · 12-bit
Order number1SAP250200R0001
Product familyAC500 / S500
Output groups2 groups
LifecycleActive
Order check: match AO523 and 1SAP250200R0001; verify voltage/current channel assignment, load resistance, 24 V DC process supply and terminal-unit wiring.
ONE YEAR WARRANTY  —  FAST DELIVERY  —  WORLDWIDE SHIPPING
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer ABB
Item number AO523
Country of Origin Switzerland
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
Analog Output Identity

Published checkpoints for ABB AO523

A detailed view of the 16 outputs, current-capable channel positions, load limits and module supply requirements.

Order number1SAP250200R0001
SeriesS500
Device role16-channel analog output
Lifecycle signalActive
Official ABB product data

Output, load and response specifications

20 verified data points
Analog outputs16
Output groups2
Voltage range-10...+10 V
Current ranges0...20 mA; 4...20 mA
Current-capable channelsO0...O3; O8...O11
Voltage-only channelsO4...O7; O12...O15
Output typeBipolar V; unipolar I
Resolution12 bits including sign
Current load0...500 Ω
Voltage loadability±10 mA max.
Settling time5 ms typical
Typical accuracy±0.5 % full scale
Maximum error±1 % full scale
Process voltage24 V DC
Maximum ripple5 %
UP protection fuse10 A fast
Analog cable100 m max.
Module current0.15 A + output loads
Weight300 g
MountingHorizontal or vertical with derating
Channel boundary

Only O0...O3 and O8...O11 support current output; the remaining eight channels are voltage-only and must not be planned as current loops.

Load boundary

Keep current loads within 0...500 Ω and voltage-output loading within ±10 mA while maintaining the published 24 V DC process supply.

02 · Output Allocation and Load Planning

Assign mode by channel before commissioning.

AO523 offers 16 analog outputs, but current capability is limited to specific channel groups. Replacement planning must preserve every channel mode and load.

Current allocationEight current-capable outputs

Channels O0...O3 and O8...O11 support 0...20 mA or 4...20 mA; all 16 channels support voltage mode.

Response planning5 ms typical settling

ABB specifies 12-bit resolution including sign and a typical 5 ms settling time for a full-range change with a resistive load.

Output validation path
01
Capture each actuator

Record voltage or current mode, channel number and connected load for all used outputs.

02
Verify supply and base

Confirm 24 V DC process voltage, fuse protection and the installed S500 terminal unit.

03
Test scaled operation

Apply configuration, prove the commanded range and verify safe behavior of unused or open outputs.

Version rule: AO523-XC 1SAP450200R0001 is the extreme-condition version. The standard AO523 and XC order codes must remain distinct in quotations and replacements.

Official references: ABB AO523 Product Page · ABB AO523 Data Sheet

03 · FAQ

Application answers for ABB AO523

Specifications · Compatibility · Applications · Lifecycle · Manuals · Quotation
01
Which ABB AO523 channels can generate 4...20 mA signals?

Current output is available on O0...O3 and O8...O11. Channels O4...O7 and O12...O15 are voltage-only.

02
What actuator load limits apply to ABB AO523?

ABB specifies 0...500 Ω for current outputs and a maximum ±10 mA load for voltage outputs.

03
How is ABB AO523 integrated into an AC500 S500 station?

Install AO523 on a compatible S500 terminal unit, provide the 24 V DC process supply and preserve the published channel-to-terminal allocation.

04
Is ABB AO523-XC a form-and-function replacement for standard ABB AO523?

The functions are closely related, but AO523-XC has a distinct extreme-condition order code. Confirm environmental approval, terminal unit and installed-system requirements before substitution.

05
Is ABB AO523 discontinued or still listed?

ABB lists AO523 as Active in the 2025 official data sheet; no direct successor is named in that document.

06
What should a buyer include when requesting an ABB AO523 quotation?

Include 1SAP250200R0001, the terminal-unit model, channel-by-channel voltage/current modes, actuator loads, required quantity, destination and delivery schedule.
