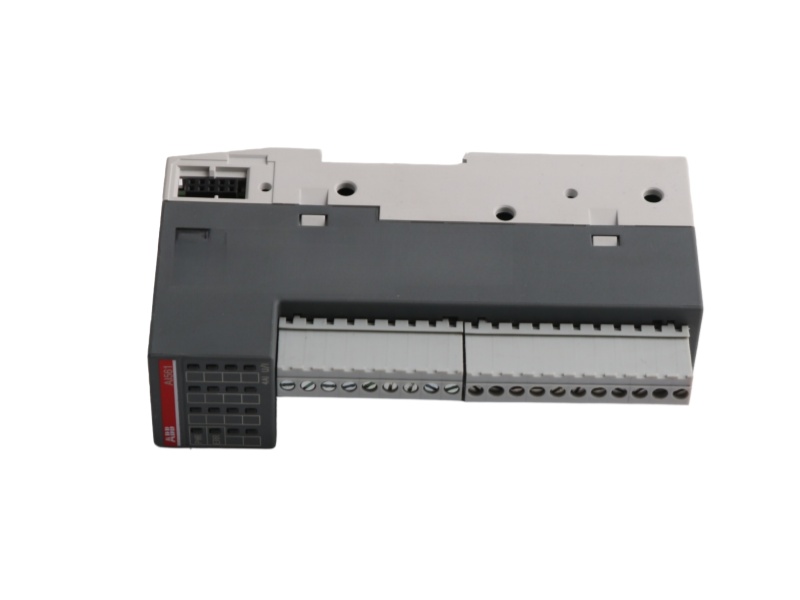

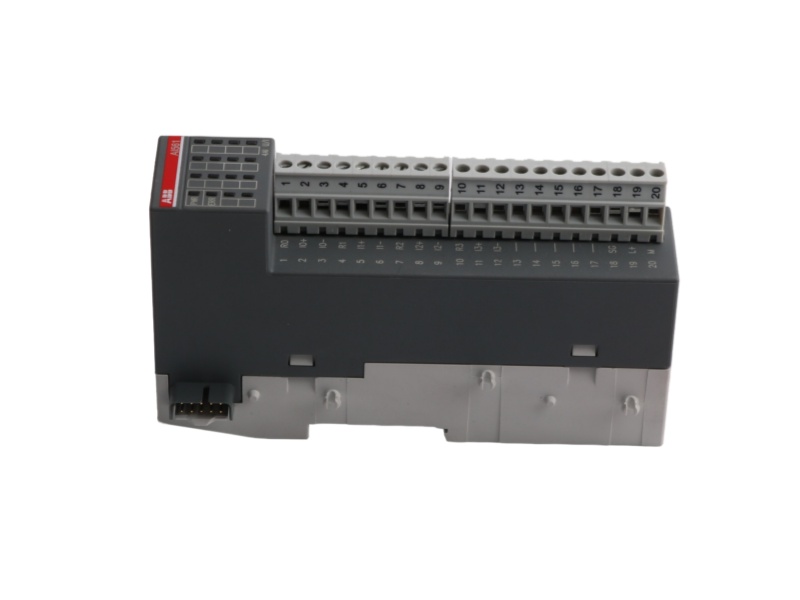

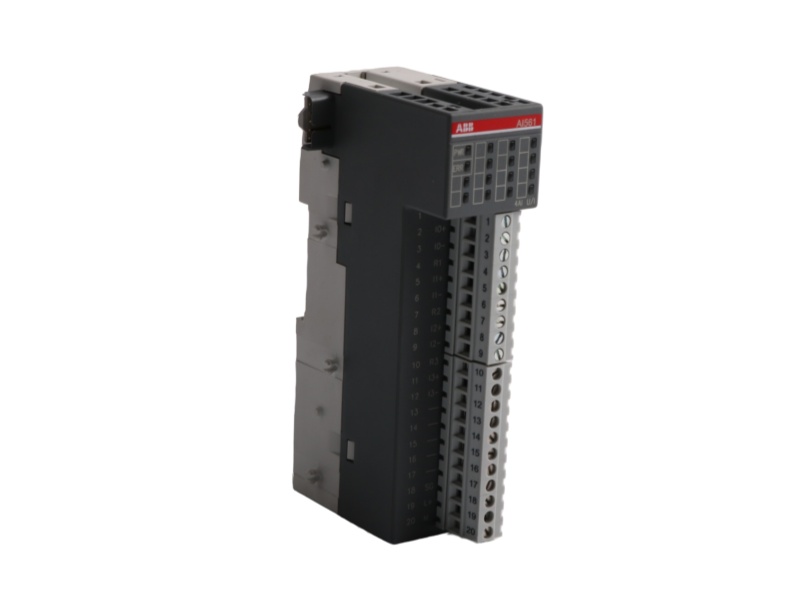

ABB AI561 4-Channel Analog Input Module

ABB / AC500-ECO / FOUR-CHANNEL ANALOG INPUT

ABB AI561 is a four-channel differential analog input module with individually configurable voltage and current ranges. Confirm the removable terminal blocks, signal common-mode limits and AC500-eCo installation before purchase.

MEASUREMENT PROFILE
4 differential inputs
Voltage and current · 12-bit conversion
Order number1TNE968902R1101
Product familyAC500-eCo
Input data8 bytes
LifecycleActive
Order check: match AI561 and 1TNE968902R1101; verify terminal blocks, 24 V DC supply, differential wiring, shielding and AC500-eCo system placement.
ONE YEAR WARRANTY  —  FAST DELIVERY  —  WORLDWIDE SHIPPING
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer ABB
Item number AI561
Country of Origin Switzerland
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
Differential Input Identity

Published checkpoints for ABB AI561

A focused view of the four-channel AI561, its selectable voltage/current ranges, differential topology and cable requirements.

Order number1TNE968902R1101
SeriesS500-eCo
Device role4-channel analog input
Lifecycle signalActive
Official ABB product data

Signal, conversion and wiring specifications

20 verified data points
Analog inputs4 individually configurable
Channel grouping1 group of 4
Voltage ranges0...5 V; 0...10 V
Bipolar ranges-2.5...+2.5 V; -5...+5 V
Current ranges0...20 mA; 4...20 mA
Resolution12 bits
Input typeDifferential
Common-mode limitWithin ±12 V
Voltage resistance>1 MΩ
Current resistanceApprox. 250 Ω
Input filter300 µs
Conversion time500 µs per channel
Input data length8 bytes
Process supply24 V DC
L+ current0.1 A
I/O-bus currentApprox. 10 mA
Power dissipation2.7 W max.
Shielded cable100 m max.
Unshielded cable10 m max.
WeightApprox. 120 g
Isolation boundary

AI561 has no galvanic isolation between the analog inputs and the I/O bus; common-mode voltage must remain inside the published ±12 V boundary.

Connector boundary

Removable 9-pin and 11-pin TA563, TA564 or TA565 terminal blocks are separate order items and must match the intended cable direction and terminal technology.

02 · Terminal Choice and Signal Integrity

Choose the connector and cable path as one design.

AI561 measurement accuracy depends on the correct differential wiring, common-mode range and cable shielding, not only on the selected software range.

Terminal planningTA563, TA564 or TA565

ABB lists screw and spring terminal-block options in 9-pin and 11-pin versions; the blocks are ordered separately.

Network placementCentral AC500-eCo use

ABB permits AI561 on AC500 CPU or communication-interface assemblies but excludes decentralized use with CI590-CS31-HA.

Input integration path
01
Identify the four loops

List every voltage or current range, common reference and expected full-scale value.

02
Select terminal hardware

Choose the documented 9-pin and 11-pin blocks and verify cable entry direction.

03
Prove signal quality

Check 24 V DC supply, shielding, common-mode voltage and the 500 µs per-channel conversion requirement.

Version rule: AI561 must not be treated as a decentralized CI590-CS31-HA module. Match the AC500-eCo CPU or communication-interface architecture before selection.

Official references: ABB AI561 Product Page · ABB AI561 Data Sheet

03 · FAQ

Selection answers for ABB AI561

Specifications · Compatibility · Applications · Lifecycle · Manuals · Quotation
01
Which voltage and current ranges can ABB AI561 measure?

ABB AI561 supports 0...5 V, 0...10 V, -2.5...+2.5 V, -5...+5 V, 0...20 mA and 4...20 mA on four configurable differential inputs.

02
Are terminal blocks included with ABB AI561?

ABB lists TA563, TA564 and TA565 terminal blocks as separate accessories, so confirm the required 9-pin and 11-pin screw or spring versions with the quotation.

03
Can ABB AI561 operate through a CI590-CS31-HA decentralized station?

No. ABB explicitly excludes decentralized operation of AI561 with CI590-CS31-HA; confirm the central AC500-eCo architecture before ordering.

04
How should long analog cables be planned for ABB AI561?

ABB permits up to 100 m with shielded cable and 10 m with unshielded cable; also keep signal plus common-mode voltage within ±12 V.

05
Does ABB classify AI561 as an active module?

Yes. The official AI561 data sheet identifies 1TNE968902R1101 as Active and does not specify an official one-for-one successor.

06
Which manuals and purchasing data are useful for an ABB AI561 inquiry?

Provide the AI561 data-sheet reference, 1TNE968902R1101 label, CPU or communication interface, terminal-block choices, four signal ranges, quantity and delivery destination.
