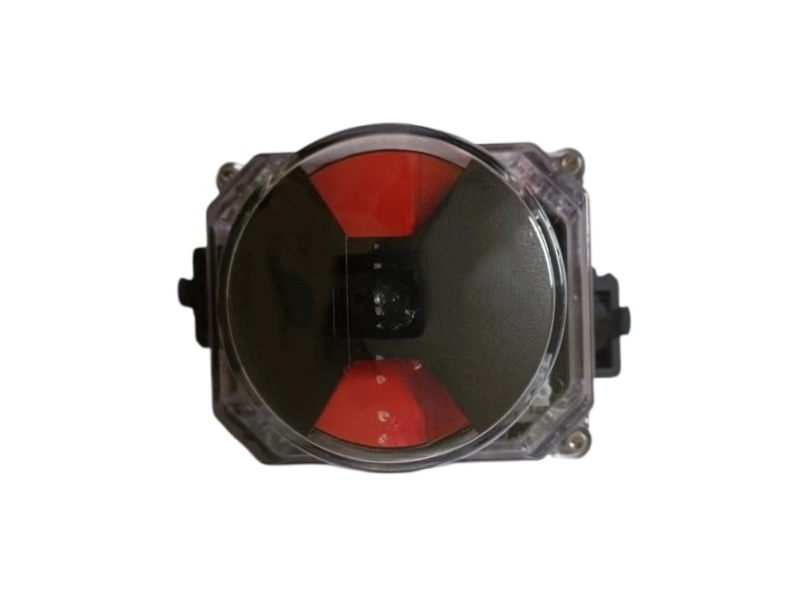

TopWorx TVF-M20GNPM industrial automation product

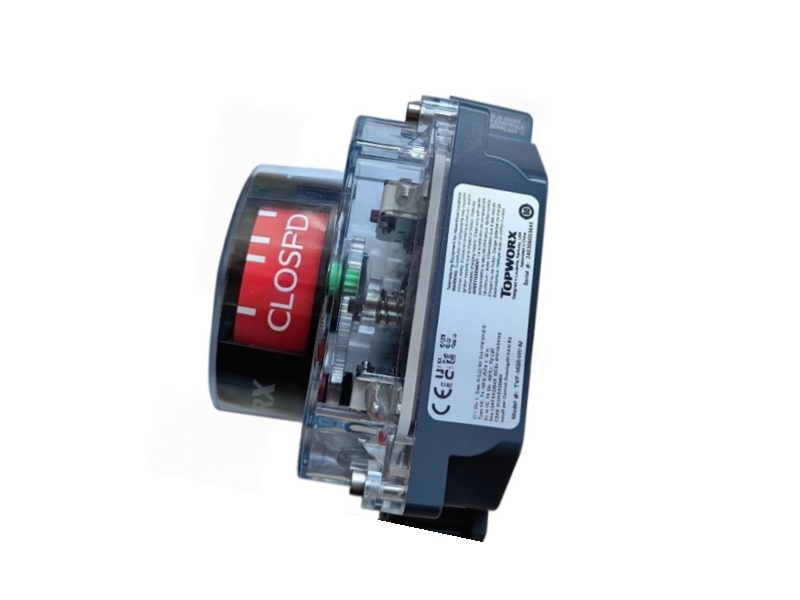

TopWorx TVF-M20GNPM nameplate and hardware view
TopWorx TVF-M20GNPM product detail view

TopWorx TVF-M20GNPM TV-Series Valve Controller

Emerson / TopWorx / TV-Series

TVF-M20GNPM Valve Controller

The TopWorx TVF-M20GNPM is a configured TVF-family compact direct-mount valve controller with a highly visible position display.

Confirm the complete label, sensor option, conduit entry, electrical ratings, solenoid arrangement and actuator mounting before ordering this abbreviated configuration code.

ModelTVF-M20GNPM
FamilyTopWorx TVF
DeviceValve Controller
MountingCompact Direct Mount
DisplayVisible Position Indicator
Lead Time2-3 DAYS
Order check: send the complete TopWorx label, sensor and solenoid details, conduit entry, actuator, quantity and destination.
✓ Integrity Supply
⚡ Fast Delivery
◎ Worldwide Shipping
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Emerson / TopWorx
Item number TVF-M20GNPM
Country of Origin USA
Lead Time 2-3 DAYS
After-Sales Support One-year warranty, please contact May
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01

TVF Valve Controller Identity & Option Check

The TopWorx TVF-M20GNPM belongs to the TopWorx TVF valve-controller family. Emerson describes the family as a compact direct-mount enclosure available with multiple position sensors, optional integral solenoids and network choices.

ManufacturerEmerson / TopWorx
ModelTVF-M20GNPM
Product TypeValve Controller
SeriesTV-Series / TVF
InstallationCompact Direct Mount
IndicationHigh-Visibility Display
AdjustmentColor-Coded Twist-Set Cams
Lead Time2-3 DAYS
Configuration boundaryThe current public TVF family page does not decode the shortened M20GNPM string. Use the complete label and factory configuration record to confirm every installed option.
Application contextTVF controllers combine valve-position indication with selected sensing and optional control functions. Hazardous-area suitability must be verified from the exact certification label.
02

Sensor, Solenoid & Actuator Match

TVF replacement requires exact confirmation of sensing, electrical entry, optional solenoid, mounting and area-classification details.

1. Record the full labelCapture the complete TopWorx model, serial number, electrical data and approval markings.
2. Identify the sensor optionConfirm the installed switch or sensor type, quantity, contact logic and load requirements.
3. Verify cable entryMatch the conduit or cable-entry thread and gland arrangement shown on the installed enclosure.
4. Check the solenoidDetermine whether an integral solenoid is fitted and confirm voltage, function and pneumatic connections.
5. Match the actuatorCompare direct-mount pattern, shaft interface, rotation and open/closed indication with the actuator.
6. Confirm area approvalUse the exact certification label to verify whether the configured unit is suitable for the installation environment.
03

Buyer Questions for TopWorx TVF-M20GNPM

What is TopWorx TVF-M20GNPM used for?TopWorx TVF-M20GNPM is a TVF-family valve controller used for valve-position indication and configured sensing/control functions on compatible actuators.
How is valve position shown on TopWorx TVF-M20GNPM?The TVF design uses a high-visibility position display so operators can check open and closed valve status locally.
How are switch trip points adjusted on TopWorx TVF-M20GNPM?The TVF family uses color-coded twist-set cams for setting position-switch actuation points during commissioning.
What installation style is used by TopWorx TVF-M20GNPM?TopWorx describes the TVF family as a compact direct-mount valve-controller design intended to reduce the space and hardware needed above the actuator.
Which nameplate details should be checked before wiring TopWorx TVF-M20GNPM?Check the sensor type, electrical ratings, conduit entry, area-approval markings and solenoid data shown on the exact unit before connecting field wiring.
What should technicians test when commissioning TopWorx TVF-M20GNPM?Stroke the actuator through both end positions, confirm the visual indicator, verify switch-state changes and inspect cable entries plus pneumatic connections when a solenoid is fitted.
