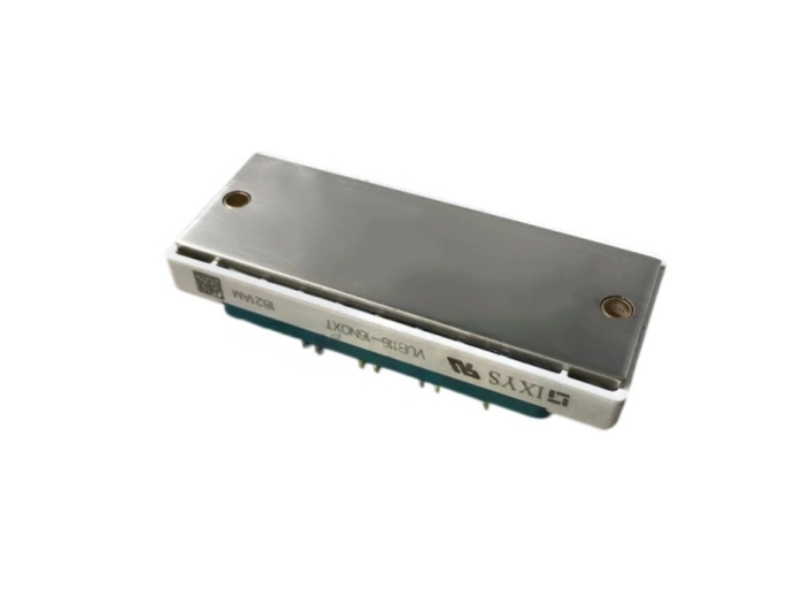

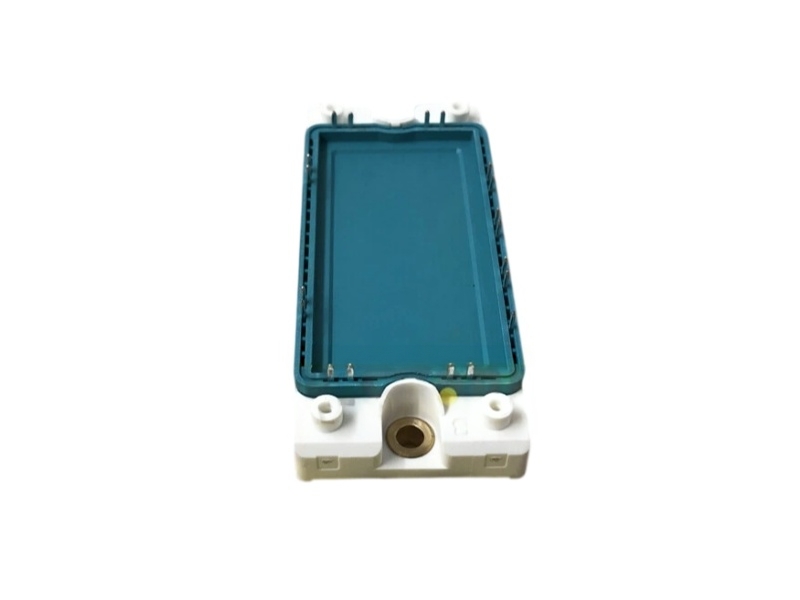

Name: Littelfuse IXYS VUB116-16NOXT Three-Phase Rectifier and Brake Module
Availability: InStock

OFFICIAL SEMICONDUCTOR DATA

Rectifier, brake and package ratings

OFFICIAL DATA COVERAGEElectrical limits, thermal data, isolation and mechanical package information from Littelfuse IXYS.

Part numberVUB116-16NOXT

TopologyThree-phase rectifier + brake unit + NTC

PackageE2-Pack

BacksideInternally isolated

Rectifier repetitive reverse voltage1600 V

Rectifier average current120 A bridge output

Rectifier surge current700 A

Brake IGBT voltage1200 V collector-emitter

Brake IGBT current at 25 deg C120 A collector current

Brake IGBT current at 80 deg C84 A

Brake IGBT power dissipation390 W

Gate-emitter voltage+/-20 V DC; +/-30 V transient

Typical saturation voltage1.8 V at stated test point

Brake diode reverse voltage1200 V repetitive reverse

Brake diode current at 25 deg C48 A

Terminal RMS current50 A

Isolation voltage3600 VAC

Creepage distance12.0 mm

Air clearance6.0 mm

Operating temperature-40 to 125 deg C

Storage temperature-40 to 125 deg C for storage

NTC resistance at 25 deg C5 kOhm typical

NTC B25/503375 K

Module height17 mm

Base plateCopper, internally DCB isolated

Delivery modeBox, quantity 6

Rectifier non-repetitive reverse voltage1700 V

Rectifier power dissipation190 W

Rectifier junction-to-case thermal resistance0.65 K/W

IGBT gate threshold5.5 to 6.0 V

IGBT total gate charge230 nC

IGBT junction-to-case thermal resistance0.15 K/W

Brake-diode forward voltage2.75 V at 25 deg C

Brake-diode junction-to-case thermal resistance0.9 K/W

Module mounting torque3 to 6 Nm

Module weight176 g

Virtual junction temperature-40 to 150 deg C

Ordering code510755

FUNCTION PATH

How VUB116-16NOXT forms an inverter front end

A power path from three-phase rectification through DC-link braking, temperature sensing and heatsink transfer.

Rectify

Convert the three-phase AC input into the inverter DC-link supply through the diode bridge.

AC TO DC

Brake

Switch regenerative DC-link energy through the integrated 1200 V brake IGBT.

CHOPPER

Sense

Measure module temperature through the embedded NTC for supervisory protection.

THERMAL INPUT

Cool

Transfer semiconductor losses through the DCB-isolated copper base into the designed heatsink.

HEAT FLOW

APPLICATION 01

Variable-frequency drives

For integrated rectifier and brake front ends in industrial motor inverters.

APPLICATION 02

Compact DC-link assemblies

For PCB-mounted power stages that benefit from combined rectifier, IGBT, diode and NTC functions.

APPLICATION 03

Thermally supervised converters

For power electronics where temperature feedback is included in the protection strategy.

BUYER GUIDANCE

VUB116-16NOXT questions answered

Selection, integration, lifecycle and quotation guidance written for practical purchasing decisions.

Which power functions are integrated in Littelfuse IXYS VUB116-16NOXT?

The module combines a three-phase rectifier bridge, a brake IGBT, a brake diode and an NTC temperature sensor in one E2-Pack.

Which voltage domains define Littelfuse IXYS VUB116-16NOXT selection?

The rectifier has a 1600 V repetitive reverse rating, while the brake IGBT and diode use a 1200 V class. The actual circuit must remain within every static and dynamic limit.

How must Littelfuse IXYS VUB116-16NOXT be thermally integrated?

Use the official junction-to-case data, mounting recommendations, DCB-isolated base and application loss calculation to size the heatsink and interface material.

What role does the NTC play inside Littelfuse IXYS VUB116-16NOXT?

The integrated NTC provides a temperature-dependent resistance signal that can support converter monitoring, protection and thermal derating logic.

Which mechanical checks matter when replacing Littelfuse IXYS VUB116-16NOXT?

Confirm the E2-Pack outline, pin map, PCB hole pattern, 17 mm height, base flatness, mounting torque, creepage and air-clearance requirements.

How can a buyer confirm the exact Littelfuse IXYS VUB116-16NOXT being quoted?

Request clear marking and pin-side photos, quantity, date code, condition, destination and the official data sheet revision; the standard ordering code is 510755.
