B&R 5APC2100.BY48-000 Automation PC 2100 System Unit

COMPACT AUTOMATION PC PLATFORM

5APC2100.BY48-000

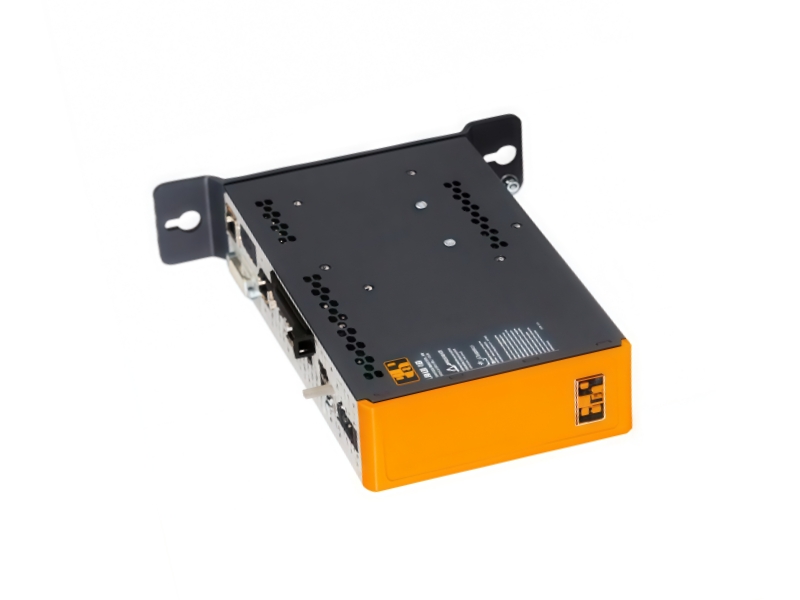

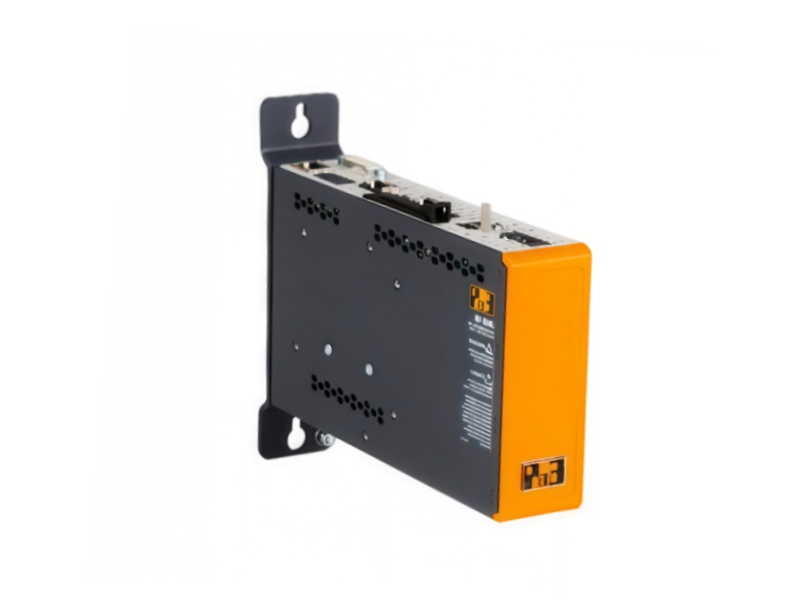

B&R 5APC2100.BY48-000 is a compact Automation PC 2100 system unit with a quad-core Atom processor, 8 GB RAM and CFast storage.

ATOM E38458 GB RAMCFast24 VDC
Brand New OriginalOne Year WarrantyWorldwide Shipping
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer B&R
Item number 5APC2100.BY48-000
Country of Origin Austria
Lead Time 2-3 DAYS
After-Sales Support One Year Warranty
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
SYSTEM UNIT DATA

Compact PC configuration for 5APC2100.BY48-000

Official model data organized for confident specification and replacement review.

Model number5APC2100.BY48-000
Product familyAutomation PC 2100
ProcessorIntel Atom E3845
Processor clock1.91 GHz
Processor cores4
Installed memory8 GB SDRAM
Storage slotCFast
Storage interfaceSATA II, 3.0 Gbit/s
USB interfaces1 x USB 3.0 and 1 x USB 2.0
USB connectorType A
USB current limit1 A maximum per interface
Ethernet interfaces2 x 10/100/1000BASE-T
Ethernet connectorShielded RJ45
Interface expansion1 interface option slot
Display expansion1 monitor or panel option slot
Nominal input24 VDC
Input tolerance±25%
Maximum input current3 A
Typical inrush current6 A
Maximum inrush current10 A for less than 300 µs
Electrical isolationProvided
Protection ratingIP20
Pollution degree2
Maximum operating altitude3000 m, component-dependent
Dimensions40 x 115 x 198 mm
Weight1170 g
02
FUNCTION PATH

How 5APC2100.BY48-000 supports compact automation

A practical view of the signal, control and integration decisions behind this model.

CORE ROLEFanless PC foundation

The system unit combines processing, memory, CFast storage and Gigabit Ethernet in a narrow industrial enclosure.

X20
01

Boot

The CFast card supplies the operating system and machine application image.

02

Process

The quad-core processor runs control, visualization and data services.

03

Expand

Dedicated option positions add the required field interface and display connection.

APPLICATION 01Compact machine controller

Run control and HMI functions where cabinet space is limited.

APPLICATION 02Edge data station

Use dual Gigabit Ethernet ports for machine and plant-network connections.

APPLICATION 03Panel-connected PC

Pair the system unit with a compatible display option for integrated operation.

03
PURCHASING FAQ

FAQ for 5APC2100.BY48-000

Clear answers for selecting, replacing and sourcing the right configuration.

01

What processing platform is used in B&R 5APC2100.BY48-000?

B&R 5APC2100.BY48-000 combines a 1.91 GHz quad-core Intel Atom E3845 with 8 GB SDRAM.

02

Which storage medium is mandatory for B&R 5APC2100.BY48-000?

B&R specifies a supported CFast card using the SATA II interface. Select the approved capacity and preserve the system image for service work.

03

How can B&R 5APC2100.BY48-000 be expanded?

The unit provides one interface-option position and one monitor or panel option position, so the exact installed option codes must be matched.

04

What network connections are built into B&R 5APC2100.BY48-000?

B&R 5APC2100.BY48-000 provides two shielded RJ45 Ethernet interfaces supporting 10, 100 and 1000 Mbit/s.

05

Which checks matter before exchanging B&R 5APC2100.BY48-000?

Confirm the CFast image, interface option, display option, 24 VDC wiring, software version and mechanical installation before replacement.

06

What should a buyer include with a B&R 5APC2100.BY48-000 enquiry?

Include quantity, destination, complete system-unit label, option-card labels, monitor connection, CFast requirement and operating-system details.

04
A PRACTICAL SOURCING PARTNER

Why Choose Us

Practical support from product selection through international delivery.

01One-stop automation sourcing

Thousands of suppliers and a wide range of products allow you to experience a one-stop shop.

02Quality comes first

The highest quality product.

03Warranty confidence

Most products have a warranty period of up to one year, and any quality issues will be refunded at our expense. Each item undergoes rigorous testing before delivery.

04Responsive sales support

Our sales personnel provide you with over 10 hours of service and promptly respond to your inquiries.

05Fast international delivery

Quickly deliver all products within 1-3 days after placing an order. Most goods will be delivered to you in a timely manner through DHL's fastest service.

06Transport-ready packaging

Good packaging ensures transportation safety and greatly saves transportation costs.

05
A LONG-TERM AUTOMATION PARTNER

Our Company History

A steady foundation for dependable automation partnerships.

Company office in 2016
2016
Company office in 2026
2026
2005 — THE BEGINNING

Product knowledge starts with focus.

Company was founded in Xiamen, Fujian, China, in 2005 with a team of only four people. At that time, we mainly served selected European and North American markets, supplying commonly requested industrial automation products from Siemens, Allen-Bradley and Bently Nevada. Although the business was still developing and we completed relatively few orders, this period helped us build essential product knowledge and international trade experience.

2017 — A PERIOD OF GROWTH

Inventory and service expand together.

By 2017, our team had grown to approximately 30 people, and we had established a warehouse for in-stock automation components. Our business expanded across Europe, North America and Southeast Asia, while our product range grew from popular models to scarce and discontinued industrial automation parts. As our product knowledge and service experience increased, we completed nearly 20 orders per month on average.

TODAY — SERVING WORLDWIDE

A broader team for complex sourcing.

Today, Company serves customers worldwide with a professional team of approximately 60 people. Our warehouse holds a broad selection of industrial automation components, including popular products, hard-to-find parts and discontinued models. We now complete more than 30 orders per month, with an average monthly transaction value of approximately USD 3 million. We have established long-term partnerships with nearly 30 customers from different countries and welcomed almost 40 international customers to visit our company.

Since our company was founded, we have served every customer with sincerity and professionalism. Our prices may not always be the lowest, but we earn long-term trust through quality products, dependable after-sales support, honest condition reporting, timely communication and responsible delivery. Our goal is to build lasting partnerships rather than pursue one-off transactions.

06
EXPLORE MORE AUTOMATION PARTS

More automation models

Explore complementary automation components for future system needs.

01LD5
02TM118 099-1003-07
03E100
04MK15-12EX0-PN/24VDC/K11
05MN80C
06807224 IQ8
07DT72
08002612
09DL50F/S176 16276
109470-26-904-102
116MBI300U4-120-01
12RH328A
13X-301-I
146ES7421-7BH01-0AB0
15MC-1000-8M05A10-SC
16KHA6-SR2-EX2.W 33804S
17251402-AP
18TSW-552-BS 6506895
19KFA6-SR2-Ex2.W 103373S
20FG-20i 1631005-003
21MTL5032
22HAI100 4K,60-1364-01
239251-2-10
24F124x04 Fnr 07400030
25RH390
269470-004-A1
27TXM1.8X
28FMM-4-20 L01-0259-001
29FC2XN-24-10AS
30ABB 6126/01-83-500
31VE3A1102
32K9701PM,PLC24
33PNOZ S4 C 751104
34R134A,067N5019
351756-0B16E
36KNX-GW-DMX KNX/TP
37OC-485
38GMP201-C
39110072003
REQUEST A QUOTEDiscuss your 5APC2100.BY48-000 requirement
SALES MANAGERMay

Related Products

B&R 5ACPCC.ETH0-00 Ethernet interface card front view
B&R 5ACPCC.ETH0-00 PCI Express Compact Ethernet Interface Card

B&R PCIEC ETHERNET OPTION 5ACPCC.ETH0-00 B&R 5ACPCC.ETH0-00 is a compact PCI Express Ethernet interface with an Intel controller and shielded gigabit RJ45 port for approved Automation PC 820 and Power Panel PC 800 systems. 1Ethernet port 1 Gbit/sMaximum rate 100 mSegment length PCIecModule type +Integrity Supply+One Year Warranty+Fast Delivery PRODUCT ENQUIRY Matched B&R interface quotation Inquire Now Lead time2-3 DAYS

Details

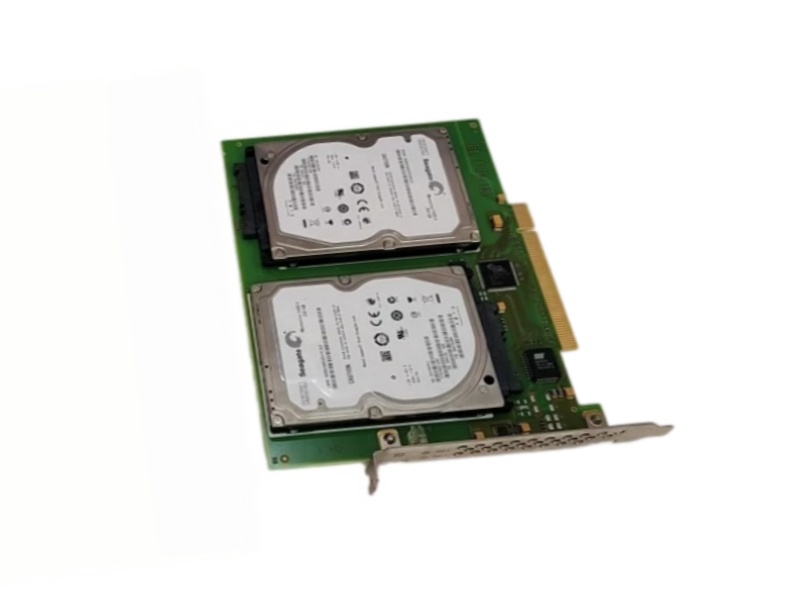

B&R 5ACPCI.RAIC-05 front view
B&R 5ACPCI.RAIC-05 SATA RAID Controller with Dual 250 GB Drives

INDUSTRIAL RAID STORAGE B&R IPCRAID 0 / RAID 1 5ACPCI.RAIC-05 B&R 5ACPCI.RAIC-05 combines a SATA RAID controller and two 250 GB drives for RAID 0 striping or RAID 1 mirrored industrial PC storage. PRODUCT ENQUIRY Two drives. One resilient storage path. Inquire Nowab@mooreplc.com Brand New Original One Year Warranty Worldwide Shipping

Details

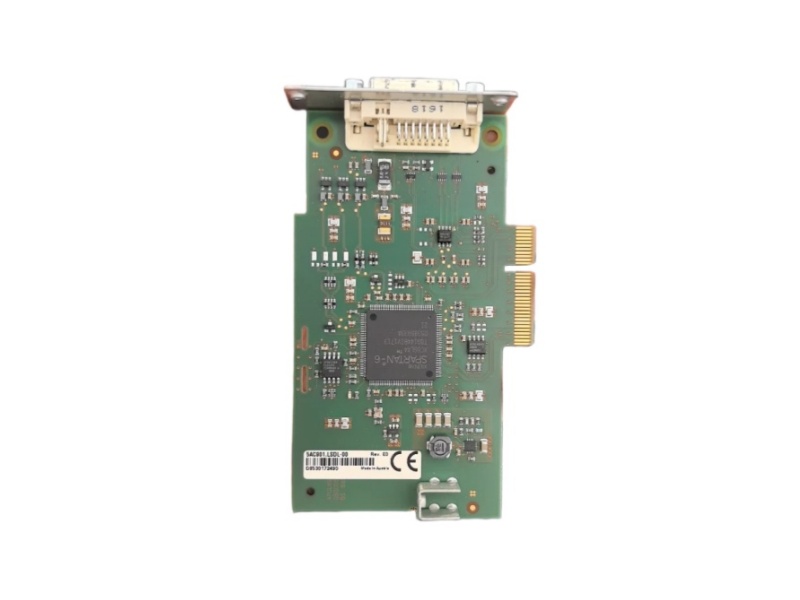

B&R 5AC901.LSDL-00 front view
B&R 5AC901.LSDL-00 APC910 SDL/DVI Monitor Panel Interface

DISPLAY LINK OPTION APC910SDL / DVI-D 5AC901.LSDL-00 B&R 5AC901.LSDL-00 provides SDL and DVI interfaces for connecting industrial monitors and operator panels to Automation PC 910 systems. PRODUCT ENQUIRY Interface for Additional Operator Display Inquire Nowab@mooreplc.com Brand New Original One Year Warranty Worldwide Shipping

Details

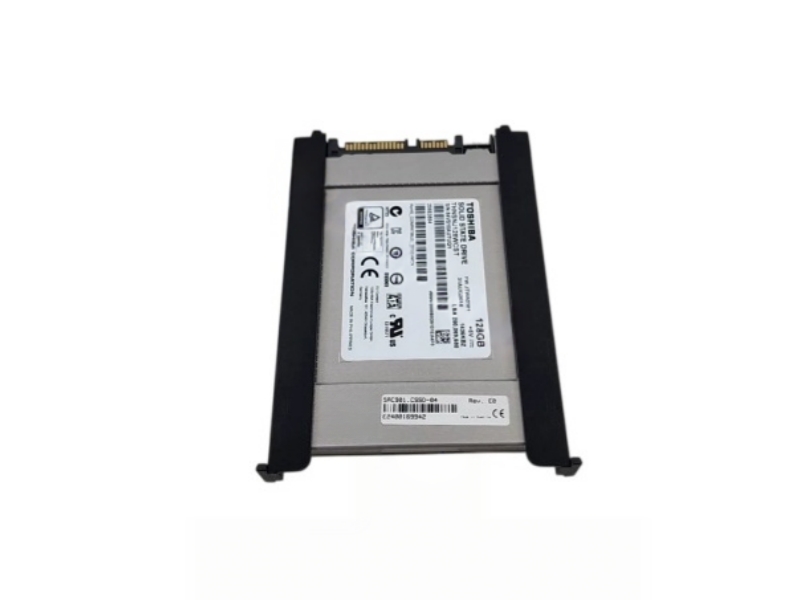

B&R 5AC901.CSSD-04 front view
B&R 5AC901.CSSD-04 128 GB MLC SATA Solid-State Drive

INDUSTRIAL SOLID-STATE STORAGE 128 GB MLCSATA 3.1 5AC901.CSSD-04 B&R 5AC901.CSSD-04 is a 128 GB MLC SATA solid-state drive for system and application storage in APC910 and PPC900 industrial computers. PRODUCT ENQUIRY Compact storage built for industrial service. Inquire Nowab@mooreplc.com Brand New Original One Year Warranty Worldwide Shipping

Details

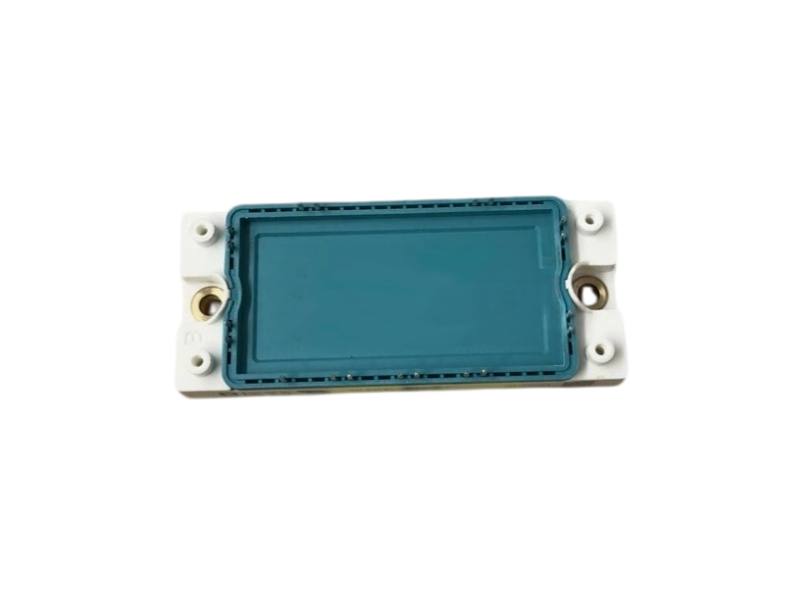

Littelfuse IXYS VUB116-16NOXT Three-Phase Rectifier and Brake Module
