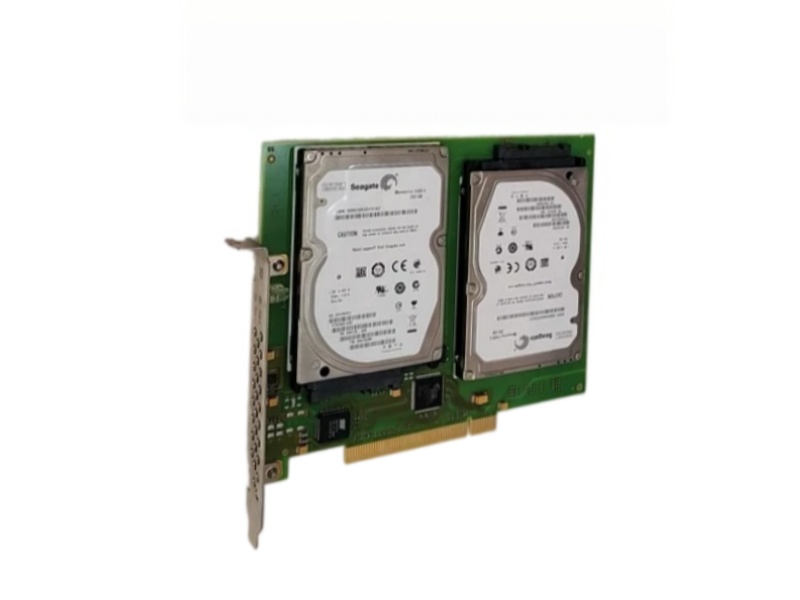

B&R 5ACPCI.RAIC-05 front view

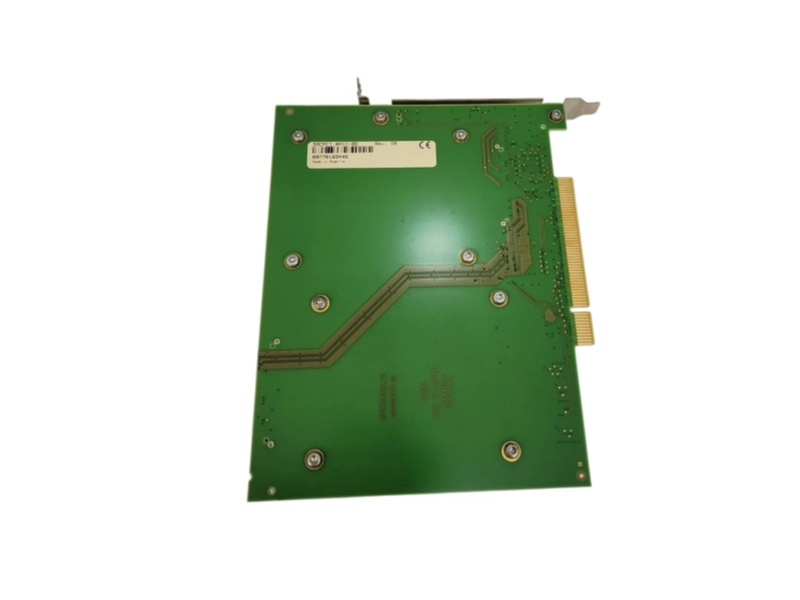

B&R 5ACPCI.RAIC-05 alternate view
B&R 5ACPCI.RAIC-05 product detail

B&R 5ACPCI.RAIC-05 SATA RAID Controller with Dual 250 GB Drives

INDUSTRIAL RAID STORAGE
B&R IPCRAID 0 / RAID 1

5ACPCI.RAIC-05

B&R 5ACPCI.RAIC-05 combines a SATA RAID controller and two 250 GB drives for RAID 0 striping or RAID 1 mirrored industrial PC storage.

PRODUCT ENQUIRY

Two drives. One resilient storage path.

Inquire Nowab@mooreplc.com
Brand New Original
One Year Warranty
Worldwide Shipping
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer B&R
Item number 5ACPCI.RAIC-05
Country of Origin Austria
Lead Time 2-3 DAYS
After-Sales Support One Year Warranty
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
OFFICIAL TECHNICAL DATA

RAID controller and drive specifications

Official controller, disk and environmental data for exact configuration checks.

ControllerSiI 3512 SATA linkOperating elevation-300 to 3048 m
SATA specificationSerial ATA 1.0Weight350 g
Maximum host transfer1.5 Gbit/s (150 MB/s)Drive manufacturerSeagate
Supported RAID levelsRAID 0 and RAID 1Drive product IDST9250315AS
BIOS extension ROMApprox. 32 kBDisk heads1
Installed hard disks2Disk sectors488,397,168
Capacity per disk250 GBBytes per sector512
Disk cache8 MBSupported transfer modesSATA 1.0 / Serial ATA 2.6; PIO 0-4; Multiword DMA 0-2; UDMA 0-6
Spindle speed5400 rpm ±0.2%Minimum positioning time1 ms, track to track
S.M.A.R.T. supportYesNominal positioning time14 ms, read access
Typical access time5.56 msMaximum positioning time30 ms, read access
Typical startup time3.6 sContinuous operating vibration5 to 500 Hz, maximum 0.125 g
Internal disk transferMaximum 1175 Mbit/sOccasional operating vibration5 to 500 Hz, maximum 0.25 g
PCI bus current at 3.3 V0.3 AStorage / transport vibration5 to 500 Hz, 5 g
PCI bus current at 5 V1 AOperating shockMaximum 125 g for 2 ms
Operating temperature0 to 60°CStorage / transport shock400 g for 2 ms; 500 g for 1 ms; 300 g for 0.5 ms
Storage / transport-40 to 70°CStorage elevation-300 to 12,192 m
Relative humidity5 to 95%, non-condensingInstallationPermanent; one PCI slot required
02FUNCTION PATH

How 5ACPCI.RAIC-05 protects industrial PC data

The storage set combines controller logic, paired media and continuous health monitoring.

01

Install

Seat the controller and its paired drives in the supported industrial PC PCI location.

02

Configure

Select striping for throughput or mirroring for duplicated storage according to the machine requirement.

03

Monitor

Use disk-health reporting to detect media conditions before a service interruption develops.

04

Recover

Replace a failed member with the approved spare drive and rebuild the array through the documented procedure.

MACHINE DATA RETENTIONKeep operating-system and application data on a paired industrial storage set.
CONTINUOUS-DUTY SYSTEMSUse the specified drive assembly in equipment that runs extended production schedules.
SERVICE REPLACEMENTMatch controller, disk identity and array mode before exchanging an installed set.
03BUYER QUESTIONS

FAQ for B&R 5ACPCI.RAIC-05

Configuration and operating decisions
Replacement and compatibility checks
Documentation and quotation support

Direct answers for selection, integration, replacement and sourcing decisions.

Q01

Does B&R 5ACPCI.RAIC-05 support both striped and mirrored storage arrays?

Yes. B&R specifies RAID 0 for striping and RAID 1 for mirroring on this controller assembly.

Q02

Which replacement disk is documented for B&R 5ACPCI.RAIC-05?

B&R lists 5MMHDD.0250-00 as the 250 GB SATA hard-disk replacement part and directs users to the applicable manual before installation.

Q03

Can B&R 5ACPCI.RAIC-05 be fitted without reserving an expansion slot?

No. The official product description states that the assembly requires one PCI slot in the supported industrial PC.

Q04

Where is B&R 5ACPCI.RAIC-05 useful in an automation computer?

The paired-drive controller suits industrial PCs that need either higher disk throughput or duplicated operating and application data.

Q05

Has B&R named a direct successor for B&R 5ACPCI.RAIC-05?

The reviewed official page does not identify a direct successor. Confirm the host computer, available PCI slot and required array mode before considering another storage option.

Q06

What should accompany a B&R 5ACPCI.RAIC-05 manual and quotation request?

Send the industrial PC model, controller and disk label photos, existing RAID mode, quantity, destination and required delivery date.
