SICK UC12-12231 Ultrasonic Distance Sensor

SICK / UC12 ULTRASONIC SENSINGPART NO. 6029832
SHORT-RANGE OBJECT DETECTION

UC12-12231

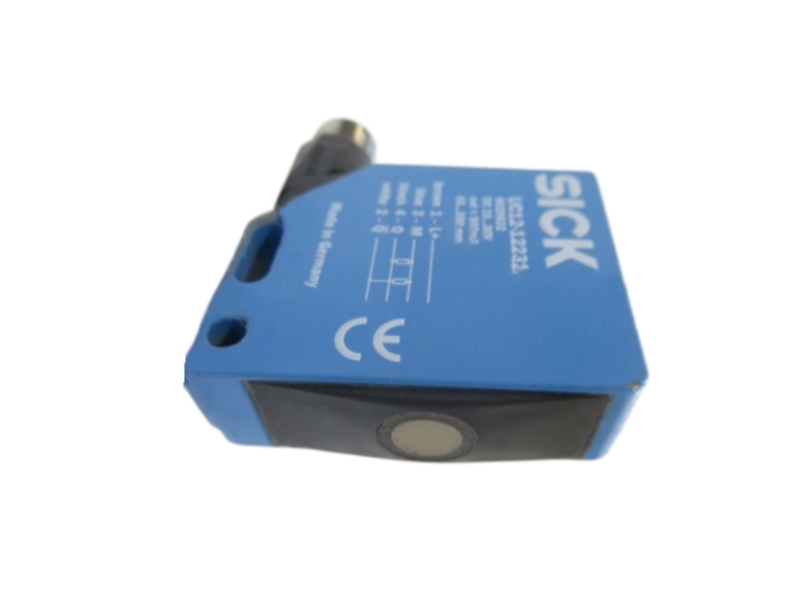

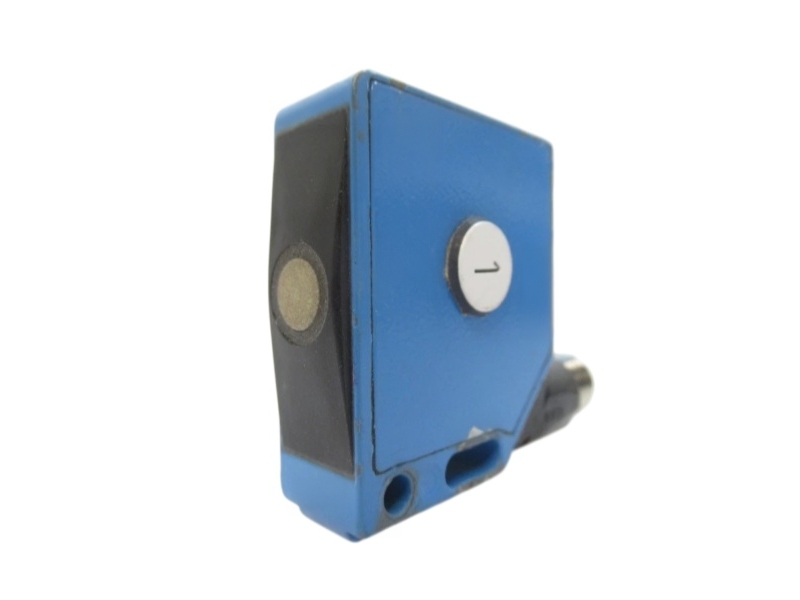

SICK UC12-12231 is a compact ultrasonic sensor with two complementary PNP outputs and a 55 to 250 mm operating range.

BEFORE INSTALLATIONConfirm the target surface, switching mode, connector wiring, mounting angle and limiting range before ordering.
PRODUCT STATUSDatasheet available
SELECTION CONTROLRANGE + PNP CHECK
Top QualityFast DeliveryWorldwide Shipping
INQUIRE NOW
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer SICK
Item number UC12-12231
Country of Origin Germany
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
FIELD JOURNAL

UC12-12231 Sensing and Output Parameters

Official SICK range, accuracy, timing, output, electrical, mechanical and environmental data for part number 6029832.

ULTRASONIC MEASUREMENT & SWITCHING
OPERATING RANGE55 to 250 mm
RESOLUTION≥0.1 mm
REPEATABILITY±0.15%
MEASUREMENT ACCURACY±1%
TEMPERATURE COMPENSATIONYes
RESPONSE TIME30 ms
SWITCHING FREQUENCY25 Hz
ULTRASONIC FREQUENCY500 kHz typical
SWITCHING MODESDtO / Window / ObSB
DIGITAL OUTPUTS2 complementary PNP
MAXIMUM OUTPUT CURRENT≤500 mA
ELECTRICAL, MECHANICAL & ENVIRONMENT
SWITCHING HYSTERESIS2 mm
SUPPLY VOLTAGE10 to 30 VDC
POWER CONSUMPTION≤1.2 W without load
INITIALIZATION TIME<300 ms
DISPLAYDual LED
ENCLOSURE RATINGIP65 / IP67
PROTECTION CLASSIII
CONNECTIONM12 male connector, 4-pin
OPERATING TEMPERATURE-25 to 70°C
DIMENSIONS15 x 48.8 x 43.5 mm
WEIGHT75 g
02
FIELD JOURNAL

How UC12-12231 Detects Objects in Compact Machines

A practical application route from target evaluation and mounting to teach-in, output interpretation and maintenance.

USE 01

Detect parts independent of color

Use ultrasonic reflection where optical contrast is unreliable but the object provides a suitable acoustic target.

USE 02

Confirm presence inside a window

Teach two limits so the controller recognizes an object only within the required process zone.

USE 03

Separate foreground from background

Apply ObSB behavior when a stable background reference helps distinguish a nearer object.

USE 04

Monitor a short material gap

Fit the compact rectangular housing where the required gap remains within the validated sound field.

USE 05

Provide complementary machine signals

Use Q and inverted Q logic to simplify status validation in a compatible 24 VDC input circuit.

USE 06

Maintain repeatable setup

Disable teach buttons after commissioning if the application must prevent unintended local changes.

03
FIELD JOURNAL

Common buyer questions about UC12-12231

Practical purchasing guidance for clearer, more confident decisions.

01BUYER QUESTION

How should the 350 mm limiting range of SICK UC12-12231 be interpreted?

The specified operating range is 55 to 250 mm; 350 mm is the limiting range. Reliable switching should be validated with the real target inside the operating range, not designed around the limiting value alone.

02BUYER QUESTION

Which switching behavior can be taught on SICK UC12-12231?

The sensor supports distance-to-object, window and object-between-sensor-and-background modes. Select the mode that matches the PLC logic and teach the actual process positions.

03BUYER QUESTION

Why does SICK UC12-12231 provide Q and inverted Q outputs?

The two PNP outputs are complementary, providing normal and inverse switching states. Use the wiring diagram and confirm the controller input logic before connection.

04BUYER QUESTION

What affects object detection reliability for SICK UC12-12231?

Target size, acoustic reflectivity, angle, distance, nearby surfaces and the mounting environment affect the returned echo. Test the real object through its complete motion path.

05BUYER QUESTION

Which official identification should be used when replacing SICK UC12-12231?

Match both type UC12-12231 and SICK part number 6029832, then confirm connector, PNP output logic, teach settings, mounting and detection range.

06BUYER QUESTION

How should SICK UC12-12231 documentation, availability and application evidence be prepared for an inquiry?

Use SICK's official datasheet for part 6029832 and confirm current supply for that exact part number. Send label and connector photos, quantity, target and distance description, condition requirement and destination.
