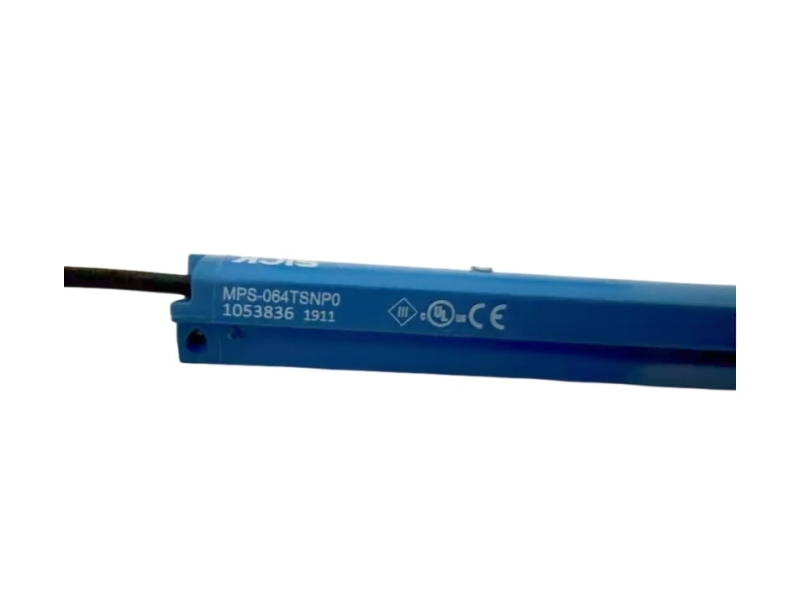

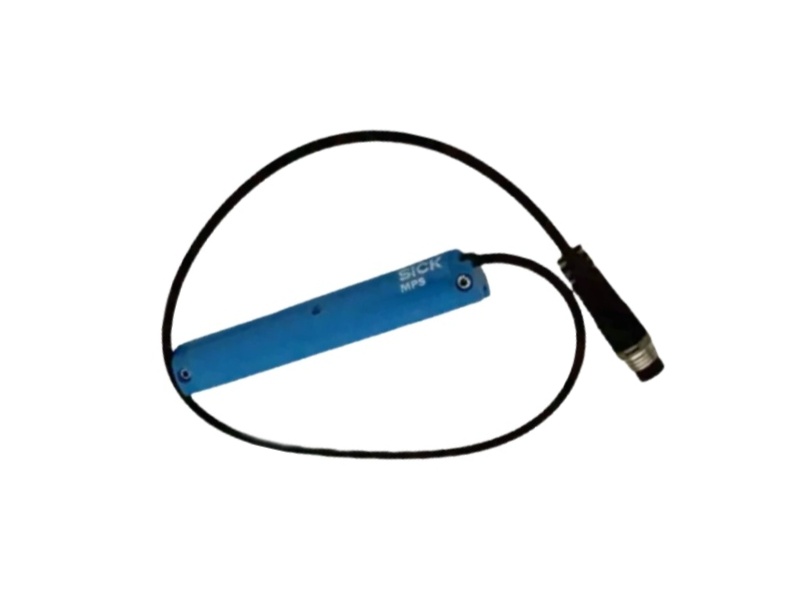

Name: SICK MPS-064TSNP0 MPS-T 64 mm Analog Cylinder Position Sensor
Availability: InStock

SICK MPS-064TSNP0 MPS-T 64 mm Analog Cylinder Position Sensor

SICK / MPS-T64 MM ANALOG SENSOR

MAGNETIC CYLINDER POSITION SENSOR

MPS-064TSNP0

SICK MPS-064TSNP0 is a 64 mm MPS-T magnetic cylinder position sensor with 0-10 V and 4-20 mA analog outputs for T-slot and adapter-based installations.

MATCH T-SLOT, RANGE AND ANALOG INPUTConfirm the cylinder profile, adapter, measuring length, active wired output, M8 pinout, controller input and mounting position before ordering.

SUPPLY STATUSOfficial SICK datasheet

REPLACEMENTNo direct successor published

Brand New Original

Integrity Supply

Fast Delivery

REQUEST A MPS-064TSNP0 QUOTE

PRODUCT INFORMATION

MPS-064TSNP0 Official Analog Measurement Parameters

The two ledgers separate continuous position conversion from the exact T-slot housing, connection and environmental limits.

POSITION MEASUREMENT & ANALOG SIGNAL

SICK part number1053836

Sensor familyMPS-T

Preferred cylinder slotT-slot

Measuring range64 mm ±1 mm

Housing length77 mm

Analog voltage output0 to 10 V

Analog current output4 to 20 mA

Output activationOnly the wired analog output is active

Supply voltage15 to 30 VDC

Current consumption22 mA max., no load

Current-output load500 Ω max. at 24 V

Voltage-output load2 kΩ min.

Magnetic field range4 to 30 mT

Resolution0.03% of full scale, min. 0.05 mm

HOUSING, CONNECTION & ENVIRONMENT

Linearity0.3 mm

Repeatability0.06% of full scale, min. 0.1 mm

Sampling rate1 ms

Teach-in functionNot available

LED indicationYes

Protection ratingIP67

Operating temperature-20 to 70°C

Shock resistance30 g, 11 ms

Vibration resistance10 to 55 Hz, 1 mm

Connection0.3 m PUR cable, M8 male, 4-pin

Body width13.6 mm

Body height5.8 mm

Mounting screw distance72 mm

EMC standardEN 60947-5-7

PRODUCT INFORMATION

How MPS-064TSNP0 Converts Piston Travel into an Analog Signal

The moving magnet, continuous sensing element, analog conditioning and controller input create one direct pneumatic-position path.

01Cylinder magnet

02Position sensing

03Analog conditioning

04PLC analog input

Follow the moving piston

The magnetic sensor detects piston travel continuously rather than reporting only an end position.

Generate a proportional signal

The chosen current or voltage output represents position across the installed measurement range.

Serve conventional controllers

A standard analog input can use the measurement without an IO-Link master or fieldbus conversion.

Adapt to several cylinder styles

Approved mounting adapters extend the T-slot sensor to round, profile, tie-rod and dovetail arrangements.

Support fast pneumatic cycles

Rapid sampling lets the controller observe moving actuator position within a machine sequence.

Keep commissioning straightforward

Because no teach function is provided, correct mechanical alignment and controller scaling establish the usable signal.

PRODUCT INFORMATION

SICK MPS-064TSNP0 Buyer FAQ

Clear purchasing guidance for informed sourcing decisions.

Which cylinder profiles can use SICK MPS-064TSNP0?

MPS-064TSNP0 fits a T-slot directly and can be installed on supported round, profile, tie-rod and dovetail cylinders with the correct SICK adapter.

Does SICK MPS-064TSNP0 provide a teach-in function?

No. The official datasheet states that teach-in is not available. Mechanical alignment and controller-side scaling must establish the working range.

Can both analog outputs operate at the same time on SICK MPS-064TSNP0?

No. The voltage and current signals share the connection concept, and only the output selected by the actual wiring is active.

Which supply is required by SICK MPS-064TSNP0?

The sensor uses 15 to 30 VDC. Confirm the controller input type, M8 pinout, cable shielding and common reference before connection.

Which dimensions matter when mounting SICK MPS-064TSNP0?

Check the 77 mm housing, 72 mm screw distance, narrow body profile, available slot length and adapter clearance on the cylinder.

Which details should be included in a SICK MPS-064TSNP0 request?

Send the label, cylinder profile, slot or adapter, measurement stroke, selected analog input, connector cable, quantity and delivery country.
