Name: SICK DT35-B15551 Dx35 Laser Distance Sensor
Availability: InStock

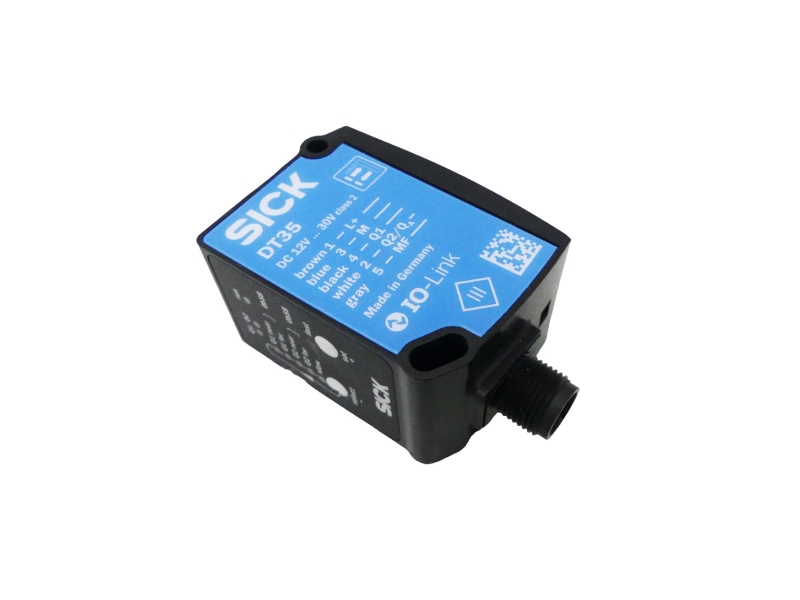

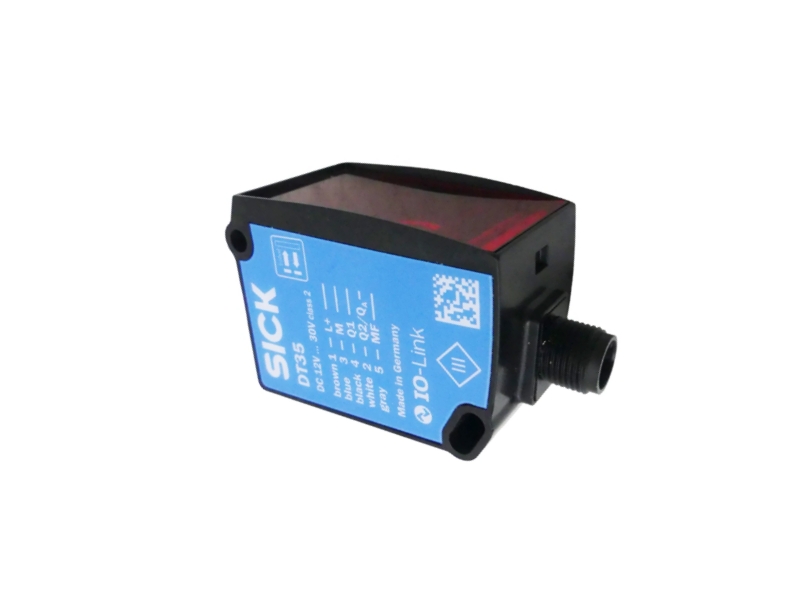

SICK DT35-B15551 Dx35 Laser Distance Sensor

SICKDX35

DT35-B15551

LASER DISTANCE SENSOR

DT35-B15551

SICK DT35-B15551 is a Dx35 distance sensor with red laser measurement, fast response and robust IP65/IP67 protection for industrial positioning.

50–12,000 mm0.1 mm resolution12–30 V DC

DISTANCE CONTROLRed laser measurement

WAVELENGTH658 nm

PROTECTIONIP65/67

ORDER CHECKDx35 sensing and positioning

Brand New OriginalOne Year WarrantyFast DeliveryInquire Now

Product information

Electrical specifications

Official values for selection and installation

ManufacturerSICK

Catalog numberDT35-B15551

Product familyDx35

Measurement range50–12,000 mm at 90% reflectivity

Repeatability0.5–5 mm

Resolution0.1 mm

Accuracy±10 mm

Response time4.5–192.5 ms selectable

Supply voltage12–30 V DC

ConnectionM12 5-pin

ProtectionIP65 / IP67

Weight / size65 g; 32 × 58.67 × 42.7 mm

18% remission range50–5,300 mm

6% remission range50–3,100 mm

Switching frequency166 / 50 / 25 / 12 / 3 Hz

Output time2 / 4 / 8 / 16 / 64 ms

Laser class1 (IEC 60825-1:2014, EN 60825-1:2014)

IO-Link version1.1

IO-Link data rate38.4 kbit/s

Digital outputs1–2

Applications & integration

Where the configuration delivers value

01 / POSITIONING

Conveyor positioning

Measure target distance for stop, alignment and pick-place tasks.

02 / LEVEL CHECK

Tank and bin monitoring

Use the non-contact laser path for repeatable level checks.

03 / QUALITY CONTROL

Presence and height inspection

Detect object position or height without mechanical contact.

Frequently asked questions

Model-specific answers for engineers and buyers

How does SICK DT35-B15551 handle dark targets?

Its specified range depends on reflectivity; use the 90%, 18% and 6% reference ranges when checking the target surface.

Which connector is fitted on SICK DT35-B15551?

The sensor uses an M12 5-pin connection for supply and switching/measurement signals.

Can SICK DT35-B15551 be used outdoors?

The IP65/IP67 enclosure supports protected industrial outdoor installations when the optical window is kept clean.

What response setting should be selected for SICK DT35-B15551?

Choose the response time that matches the required machine cycle; the selectable values run from 4.5 ms to 192.5 ms.

Is SICK DT35-B15551 discontinued?

The cited SICK documentation identifies the Dx35 device and specifications; it does not provide a discontinuation notice for this order number.

What should a quotation request for SICK DT35-B15551 include?

Send the nameplate, target reflectivity, required range, quantity and destination so the sensing configuration can be checked.
