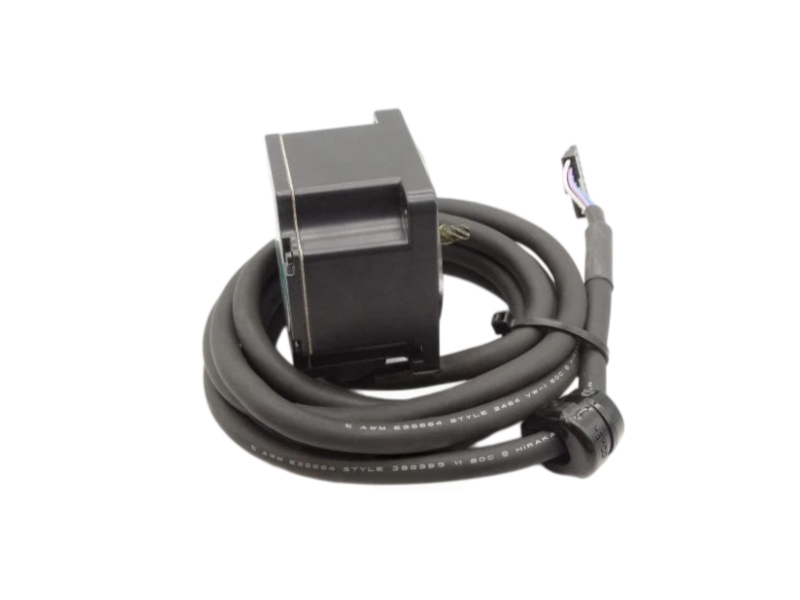

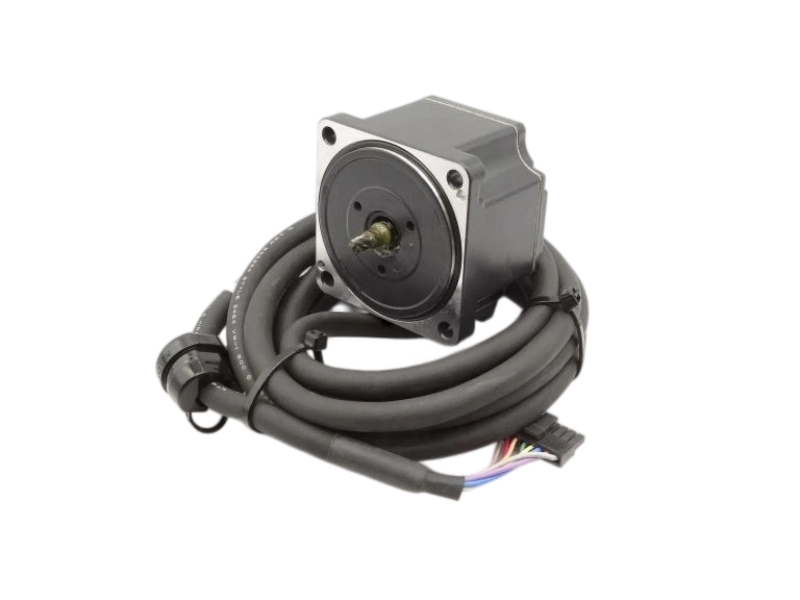

Name: Oriental Motor BLHM230KC-GFS 30 W BLH Series Brushless DC Pinion Shaft Motor
Availability: InStock

PRODUCT INFORMATION

BLHM230KC-GFS Official Motor and System Parameters

Two balanced ledgers separate motor matching data from installation and environmental limits published by Oriental Motor.

MOTOR, SHAFT & DRIVE MATCHING

Product lineVEXTA

Motor typeBrushless DC motor

SeriesBLH Series

Output power30 W (1/25 HP)

Power platform24 VDC

Frame size60 mm square

Shaft typeGFS pinion shaft

Gearhead requirementGFS2G series, sold separately

Supported gear ratios5, 10, 15, 20, 30, 50, 100, 200

Electromagnetic brakeNot equipped

Analog driverBLH2D30-K

ENVIRONMENT, PROTECTION & COMPLIANCE

RS-485 driverBLH2D30-KR

Maximum motor extension5 m

Operating temperature0 to 50°C

Operating humidity85% RH max., non-condensing

Operating altitude1000 m max.

Storage and transport temperature-20 to 70°C

Storage and transport altitude3000 m max.

Motor protectionIP65 except mounting surface and connectors

Vibration test10 to 55 Hz, 0.15 mm, three axes

Safety standardsUL, CSA and EN

RoHS complianceYes

PRODUCT INFORMATION

How BLHM230KC-GFS Converts a 24 VDC Command into Geared Motion

Driver commands, electronic commutation, pinion transfer and the selected gearhead form one coordinated motion path.

01Driver command

02Electronic commutation

03Pinion transfer

04Geared machine motion

Accept the speed reference

The selected BLH driver receives the machine command and manages motor operation for the required task.

Create brushless rotation

Electronic commutation produces controlled rotary motion without the maintenance demands of mechanical brushes.

Transfer torque through the pinion

The dedicated pinion shaft couples directly to the matching GFS gearhead input stage.

Set machine speed by ratio

The chosen gear ratio converts motor motion into the output speed and torque needed by the mechanism.

Support compact equipment

The slim motor profile suits conveyors, indexers and compact handling axes where installation space is limited.

Keep service matching clear

Separate motor, driver, gearhead and cable references let maintenance teams verify each replaceable part before purchase.

PRODUCT INFORMATION

Oriental Motor BLHM230KC-GFS Buyer FAQ

Clear purchasing guidance for informed sourcing decisions.

Which gearhead must be selected for Oriental Motor BLHM230KC-GFS?

BLHM230KC-GFS uses the GFS2G gearhead family. Select the required official ratio and confirm the output-shaft arrangement because the gearhead is ordered separately.

Which driver versions operate Oriental Motor BLHM230KC-GFS?

Oriental Motor lists BLH2D30-K for analog control, BLH2D30-KD for digital control and BLH2D30-KR for RS-485 control. Match the driver to the machine interface.

Can Oriental Motor BLHM230KC-GFS use a long motor extension cable?

The official BLH instructions allow a total motor-to-driver extension of up to 5 m. Confirm the approved cable set and routing before ordering.

Where does the IP65 boundary apply on Oriental Motor BLHM230KC-GFS?

The motor body is rated IP65, excluding the gearhead mounting surface and connector areas. The enclosure design must protect those boundary points.

Does Oriental Motor BLHM230KC-GFS include an electromagnetic brake?

No. BLHM230KC-GFS is the no-brake pinion-shaft motor. Applications that must hold a vertical load need a separately engineered holding solution.

What information should accompany an Oriental Motor BLHM230KC-GFS quotation request?

Send the full motor nameplate, required GFS2G ratio, driver type, cable length, mounting orientation, quantity and destination so the complete system can be checked.
