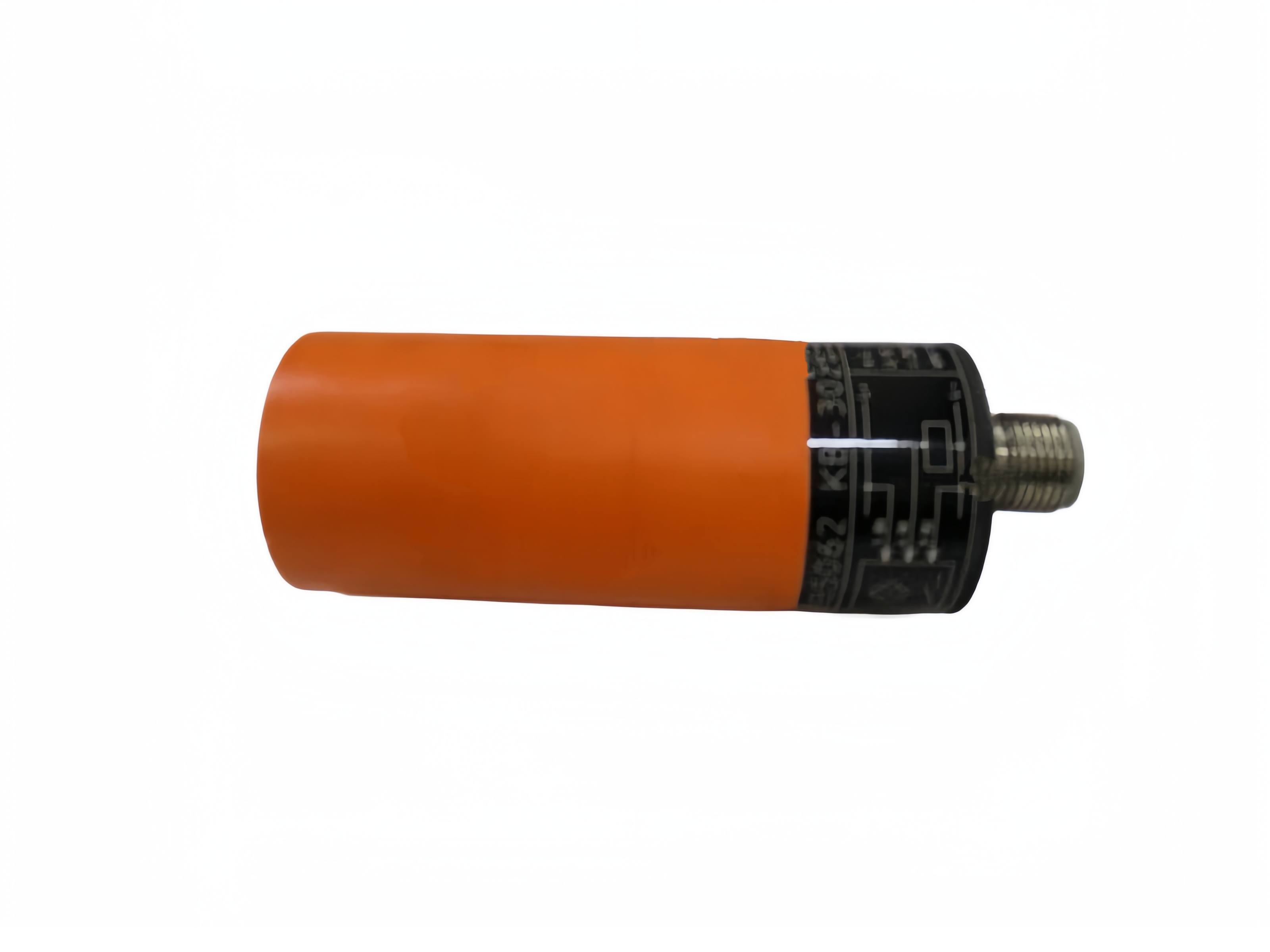

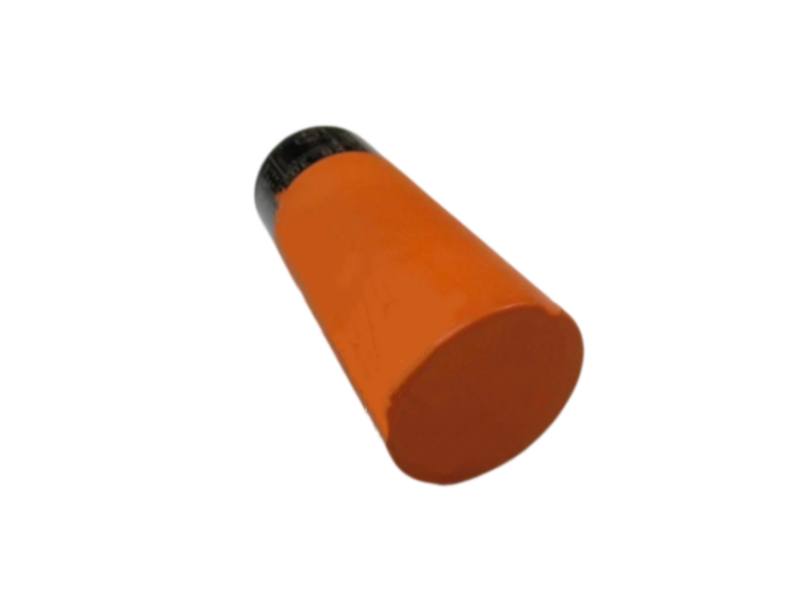

Name: ifm KB5062 20 mm Capacitive Proximity Sensor
Availability: InStock

ifm KB5062 20 mm Capacitive Proximity Sensor

NON-CONTACT MATERIAL DETECTION20 MM RANGE

ifm KB5062 is an adjustable capacitive proximity sensor with a PNP normally open output. Its non-flush cylindrical housing detects suitable solid or liquid targets without mechanical contact.

MATCH BEFORE ORDERINGConfirm target material, mounting clearance, achievable sensing distance, PNP input logic and the mating M12 cable before ordering.

OUTPUTPNP normally open

SWITCHING RATE40 Hz

HOUSINGØ34 mm PBT

Brand New Original One Year Warranty

INQUIRE NOW

OFFICIAL SENSOR DATA

KB5062 sensing and electrical parameters

Detection behavior and output-circuit limits are separated from housing, connection and environmental data.

SENSING & OUTPUT

Electrical designPNP

Output functionNormally open

Nominal sensing range20 mm

Sensing range adjustmentPotentiometer

Correction factorGlass 0.4; water 1; ceramics 0.2; PVC 0.2

Real sensing range20 mm ±10%

Operating distance0 to 16.2 mm

Switching frequency40 Hz

Hysteresis1 to 15%

Sensing-range drift-15 to 15%

POWER & CONSTRUCTION

Operating voltage10 to 36 VDC

Current consumption<13 mA at 24 V

Maximum voltage drop2.5 V

Continuous output current250 mA

Protection classII

Overload protectionYes

Ambient temperature-25 to 70°C

Degree of protectionIP65

DimensionsØ34 × 93 mm

Weight169.5 g

CAPACITIVE DETECTION PATH

How KB5062 turns material presence into a PNP signal

An electric field reacts to the target's dielectric effect, while threshold adjustment and output protection prepare a usable controller signal.

01Establish sensing field

02Target changes capacitance

03Compare adjusted threshold

04Switch PNP output

FUNCTION 01

Detect without contact

The active face responds to a suitable material entering its electric field without a mechanical actuator.

FUNCTION 02

Adapt to the application

Sensitivity adjustment lets commissioning account for target material, wall thickness and mounting conditions.

FUNCTION 03

Serve controller inputs

The positive-switching output provides a discrete signal for a compatible PLC or machine input circuit.

FUNCTION 04

Protect the output stage

Short-circuit, overload and reverse-polarity protection reduce common wiring-fault risks.

FUNCTION 05

Monitor containers

Capacitive sensing can support presence or level decisions where the target changes the field sufficiently.

FUNCTION 06

Provide local indication

The sensor's status indication helps technicians set the threshold and verify switching at the machine.

TARGET VALIDATIONTest the real medium and container at operating temperature, then set stable switching margin before production use.

BUYER GUIDANCE

ifm KB5062 buyer FAQ

The FAQ addresses target behavior, controller logic, mounting, protection and the application details needed for quotation.

Which materials can ifm KB5062 detect reliably?

KB5062 can respond to suitable solid or liquid materials, but range depends on dielectric properties and the installation. Test the actual target before finalizing the setting.

What controller input is required for ifm KB5062?

Use a compatible DC input circuit for a PNP normally open sensor and confirm the supply and load comply with the official electrical limits.

Why must ifm KB5062 be mounted non-flush?

The official mounting type is non-flush, so conductive material around the active face can affect the sensing field and switching stability.

Can ifm KB5062 detect through a container wall?

Capacitive sensing may detect through a non-metallic wall, but wall material, thickness and the product itself change the usable range; perform an application test.

What replacement evidence is useful for ifm KB5062?

Provide the sensor label, mounting photo, target material, container details, supply voltage, controller input type and connector arrangement.

What should an ifm KB5062 inquiry request include?

Request the current official datasheet with the quote and state quantity, destination, mating cable need and whether a sample test is required.
