Description:T8461 digital output modules provide high reliability, precise digital outputs.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | ICS triplex |
| Item number | T8461 |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
PLC Autocontroller | 20 Years in Safety-System Expertise

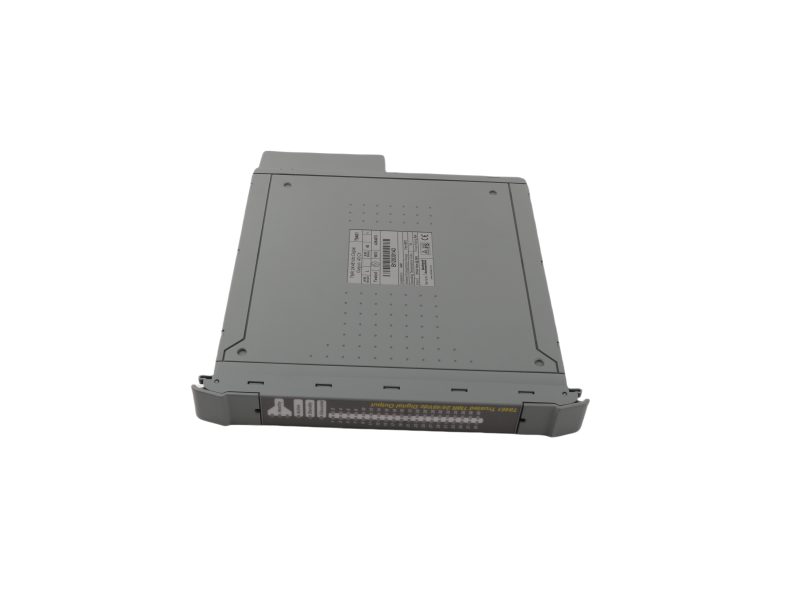

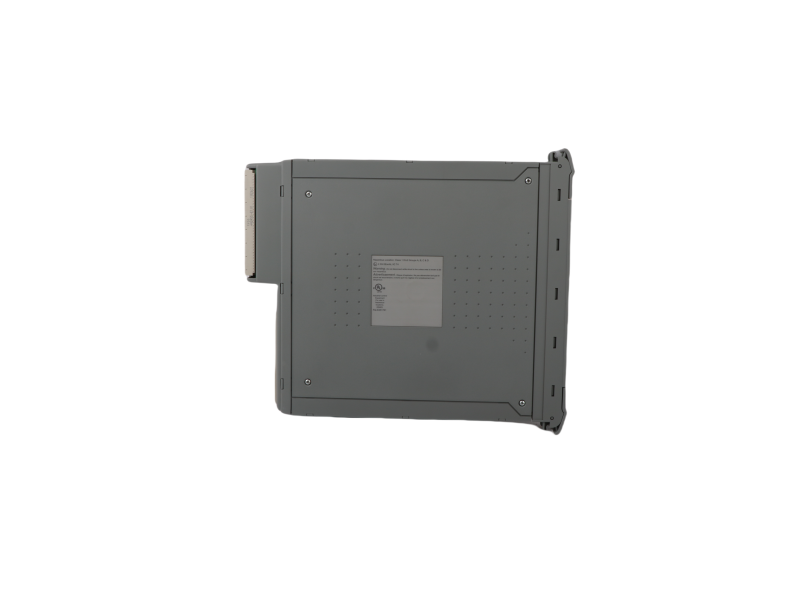

Technical Brief: ICS Triplex T8461 Trusted TMR 40-Channel Digital Output Module
(With Complementary ICS Family Overview)
Purpose & Slot Location
T8461 is the 40-channel, 24/48 V dc triplicated output module for the ICS Trusted® TMR rack. It drives SIL-3/PL e final-elements such as ESD valves, fire dampers, or motor starters without any single point of failure.
Core Specifications
• Channels: 40 fully-isolated outputs
• Voltage Range: 20–32 V dc or 42–56 V dc (jumper-selectable)
• Output Rating: 0.5 A per channel, 2 A per 8-channel group
• Switching Time: < 2 ms ON↔OFF
• Diagnostics: open/short-circuit, over-current, stuck-on/off
• Isolation: 2.5 kV impulse, 250 V working
• Hot-swap: supported via Companion Slot
Ordering Data
• Part Number: T8461 (latest Rev. J)
• Accessories: 40-way screw or spring FTU, keying plugs, Companion Slot kit
Complementary ICS Trusted Products for a Complete SIL-3 Solution
Controller & Rack Infrastructure
• T8100 Trusted Controller Chassis – main 19" rack frame
• T8110B/C Trusted TMR Processor – triple-core safety CPU
• T8151B/C Trusted Communication Interface – dual Ethernet + quad serial, SIL 3
• T8153 Trusted Communication Interface Adapter – cable-front transition
Power & Distribution
• T8220 / T8222 / T8225 Power Supply Modules – 110–240 V ac or 24 V dc input
• T8290 / T8292 Power Distribution Modules – fused 24 V dc rail
I/O Modules (all TMR)
• T8403 40-Ch 24 V dc Digital Input
• T8431 40-Ch Analogue Input (4–20 mA / 0–10 V)
• T8451 40-Ch 24 V dc Digital Output (0.5 A)
• T8480 40-Ch Analogue Output (4–20 mA / 0–10 V)
Expansion & Interface
• T8300 Expander Chassis – up to 14 extra I/O slots
• T8311 Trusted Expander Interface – fibre link to T8300
• T8312-4 / T8312-7 Expander Interface Adaptor – 4-way or 7-way fibre
All items are factory-new, sealed, and supported by PLC Autocontroller with same-day quotation and global overnight delivery.
Ordering & Stock
PLC Autocontroller keeps the T8461 in bonded inventory for same-day shipment.
Contact our experienced team for pricing or more details.
