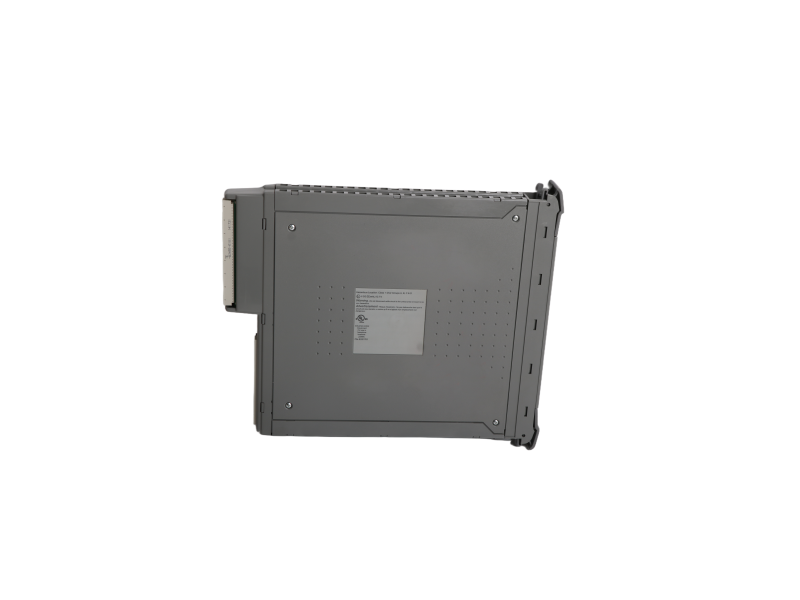

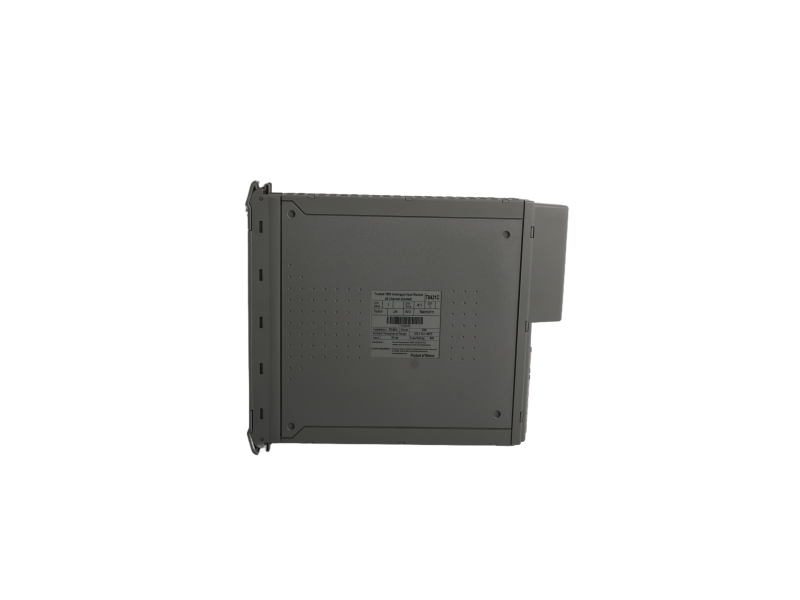

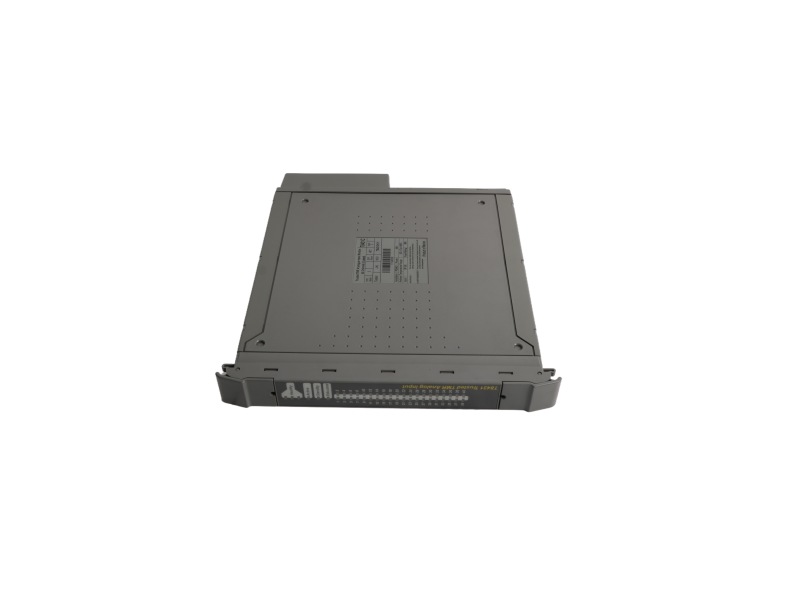

Description:ICS Triplex T8431C is an Analog Input Module for accurate signal measurement.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | ICS triplex |
| Item number | T8431C |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.
– Channel Architecture in One Glance
|
Channel Talent |
Why it Matters |
|
40× TMR inputs, 3-way vote |
Single fault = 0 % data loss |
|
0–22 mA sink range |
Covers legacy 4–20 mA + over-range tests |
|
2500 V impulse isolation |
Surge-proof up to 5 × industrial mains spike |
|
1 ms SOE stamp per change |
Forensic-level trip replay |
|
Cable break & short hunter |
Per-channel line-monitor, no extra dongles |
– “SmartSlot, Zero Downtime”
Hot-replacement without a spare TMR rack: use one Companion slot or a single SmartSlot as a shared parking bay for any Trusted AI module. Module automatically inherits tag-names & thresholds < 5 s after insertion—no re-download from engineering station .
– “Paint-Coat Secret”
Optional factory CCoat variant (same part-number suffix) adds 25 µm polyurethane conformal layer. Salt-spray resistance jumps from 48 h to 1000 h (ASTM B117), making T8431C eligible for offshore wellhead platforms without extra cabinet sealing.
– “LED Language”
Front-panel light guide gives pixel-free visibility even under UV-heavy control rooms:
1. Green steady = Active voter winning
2. Orange blink 1 Hz = Standby voter, healthy
3. Red 2 Hz = Field wiring fault (open/short)
4. Red 4 Hz = Module internal dissent, needs swap
No handheld diagnostic required—status readable from 6 m away.
– “Thermocouple Whisperer”
Hidden gem: each channel can be re-mapped to ±80 mV differential, letting you land J/K/E-type thermocouples directly—no external cold-junction box. On-board ice-point compensation accuracy ±0.5 °C, update 0.5 ms, resolution 3.9 µV .
– “Certification Stack”
TÜV Rheinland IEC 61508 SIL 3 (Type A) + IEC 61131-2 + ABS Marine + CE & UKCA. One module, four industries certified out-of-box: process, power, marine, machinery.
– “Dimensional Freedom”
266 mm H × 31 mm W × 303 mm D = 9 HP width. Slide two side-by-side in a 19″ sub-rack and you still have 1 HP free for a future DO module—no blanking plate needed.
