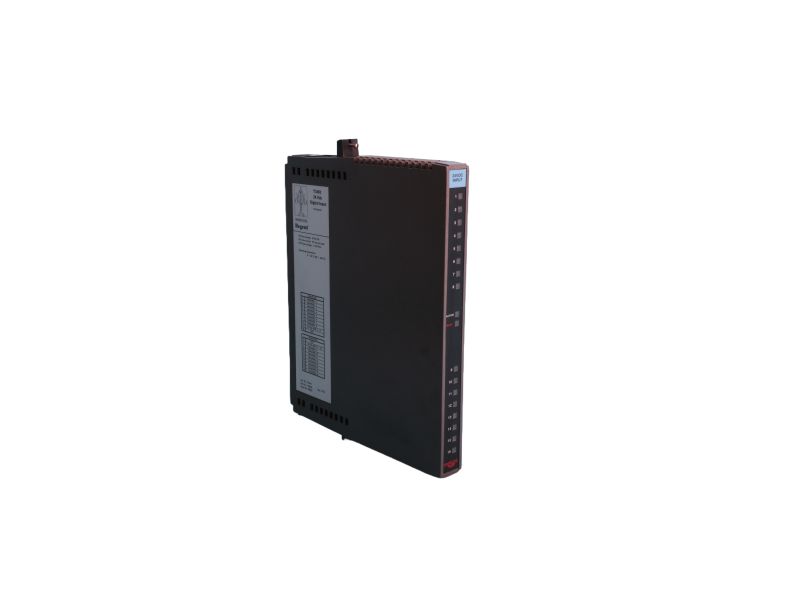

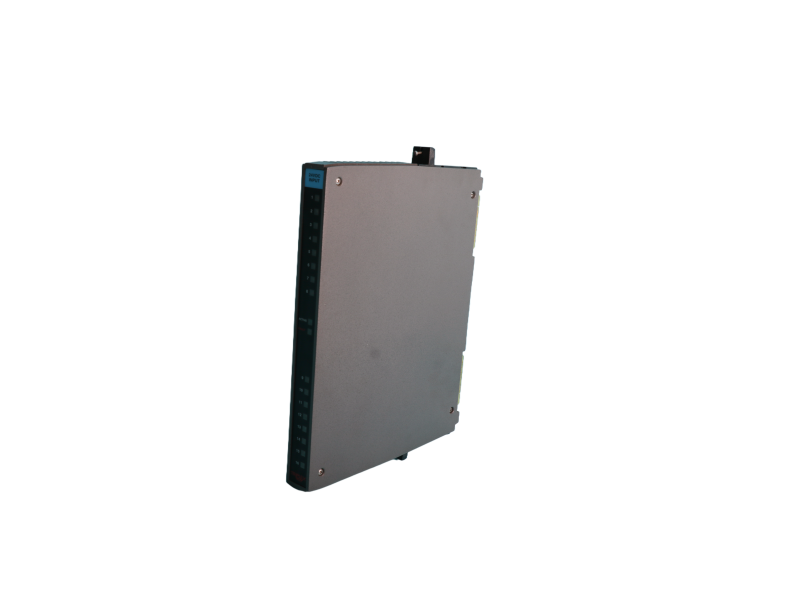

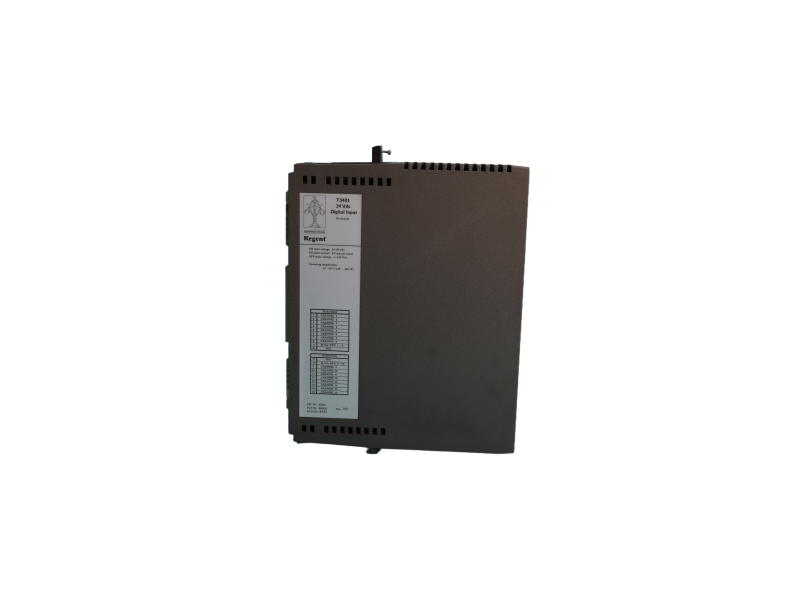

ICS triplex T3401 DC Digital Input Module

Based on over 5000 reviews

Description:ICS Triplex T3401 is a DC Digital Input Module for monitoring discrete signals.

Product condition: New

Packing condition:Factory Packing

100% insured shipping: A guarantee for your purchases


PLC Autocontroller DELIVER PARTS TO WORLD.

  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer ICS triplex
Item number T3401
Country of Origin United States
Lead Time In stock
After-Sales Support 12-months
HS Code / Commodity code 8537101190
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information

1.Executive snapshot
The T3401 is a 24-channel, triple-modular-redundant (TMR) digital input module that plugs straight into any ICS TRIPLEX 3003 or ICS Plus rack. Every I/O point is voted 3-of-3, giving you SIL 3 / PLe without external marshalling. One module = 24 safety devices, 0 single-points-of-failure.


 2.Core specifications (25 °C, nominal 24 Vdc)

Parameter

ICS TRIPLEX T3401

Function

24 DI, TMR, IEC 61508 SIL 3

Input voltage range

16 – 32 Vdc (ON ≥ 14 V, OFF ≤ 5 V)

Input current

3.2 mA @ 24 V per channel

Scan / refresh

1 ms (all 24 ch.)

Isolation

250 Vrms channel-to-bus, 1500 Vrms channel-to-ground

Power draw

4.2 W typical, 6.0 W max

Connector

High-density spring-cage, pluggable

MTBF (Telcordia)

1 350 000 h

Temperature

–40 … +70 °C operational

Humidity

5 … 95 % RH non-condensing

Certifications

CE, UL, cUL, ATEX, IECEx, ABS, DNV




3.Mechanical & rack fit

Item

Value

Width

1 slot (30 mm)

Weight

0.42 kg

Hot-swap

Yes – insertion under power

Compatible racks

3003, ICS Plus, T9300 series

Max modules per rack

64 (1536 safety DI)




Why engineers pick T3401

1. Triple voters on-chip – no external redundancy wiring

2. Built-in line-monitoring for NAMUR, dry contacts or proximity switches

3. Automatic discrepancy alarm < 5 ms

4. Firmware flashable online via TriStation 1131 v4.9+

5. May be mixed with T3402 (SOE) or T3431 (pulse-input) in same rack
