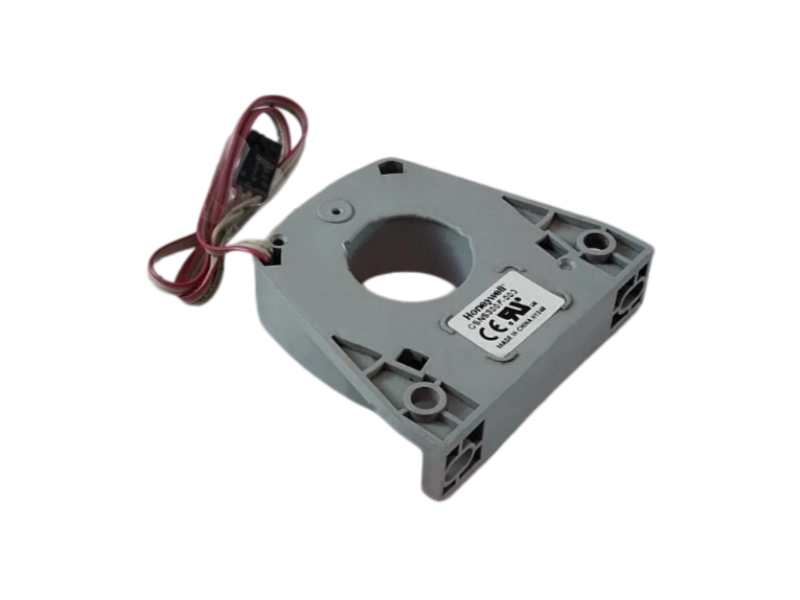

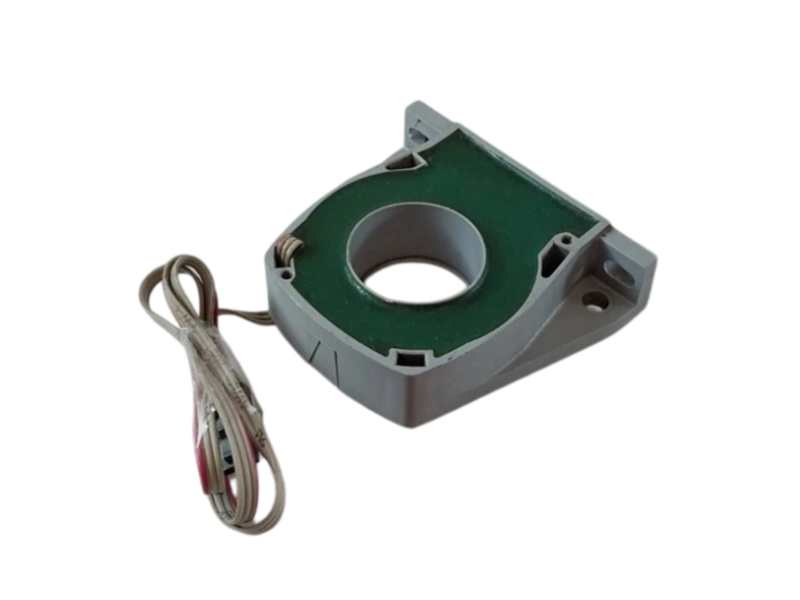

Honeywell CSNS300F-003 300 A Closed-Loop Current Sensor

HONEYWELL / CSNS CURRENT SENSING300 A SENSOR
NULL-BALANCE TRANSDUCER

CSNS300F-003

Honeywell CSNS300F-003 is a 300 A closed-loop null-balance current sensor from the CSNS Series for measuring AC, DC and impulse currents with fast response.

BEFORE INSTALLATIONConfirm the exact -003 drawing, conductor path, supply rails, output scaling, burden resistor and polarity before circuit replacement.
SELECTION CHECKVERIFY COMPLETE CONFIGURATION
Brand New OriginalFast DeliveryWorldwide Shipping
INQUIRE NOW
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer Honeywell
Item number CSNS300F-003
Country of Origin USA
Lead Time 2-3 DAYS
After-Sales Support One Year Warranty
HS Code / Commodity code 903033
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
CONTROL DOSSIER

CSNS300F-003 Measurement, Output and Installation Data

Official Honeywell technical data for the exact CSNS300F-003 configuration.

SENSOR IDENTITYUse the exact -003 drawing

Confirm aperture, supply rails, output ratio, pinout and conductor direction.

MEASUREMENT CHAINCalibrate the complete current path

Primary conductor orientation
Bipolar sensor supply
Burden resistor value
Acquisition range and scaling

CURRENT MEASUREMENT
SERIES SENSING RANGES±320 A and ±600 A configurations
RESPONSE TIME<0.5 µs
SERIES ACCURACY±0.5%
OUTPUT FORMCurrent output
VOLTAGE CONVERSIONExternal burden resistor
PRIMARY CONDUCTORPass-through measurement path
SECONDARY TURNS2000 turns, series reference
SUPPLY RAILS±12 to ±18 VDC, series reference
OPERATING TEMPERATURE-40 to 85°C, series reference
MOUNTINGPanel mounting
CONNECTION FAMILYFlying-lead F version
SIGNAL & INSTALLATION
PRODUCT DESCRIPTION300 A null-balance current sensor
FLUX CONDITIONCore flux regulated toward zero
TRANSFER RELATIONSHIPPrimary current divided by secondary turns
SIGNAL POLARITYDepends on conductor direction and pinout
BURDEN SELECTIONSized from output current and interface voltage
ISOLATION FUNCTIONGalvanic current-measurement path
FREQUENCY BEHAVIORSuitable for fast changing current waveforms
INSTALLATION DRAWINGUse model-specific Honeywell drawing
CONDUCTOR APERTUREVerify against -003 drawing
CONNECTOR PINOUTVerify against -003 drawing
CALIBRATIONSystem burden and acquisition path dependent
02
CONTROL DOSSIER

CSNS300F-003 Converts Primary Current Into a Control Signal

A selection-focused view of function, integration boundaries and practical application roles.

USE 01

Measure DC bus current

Monitor bidirectional direct current while preserving galvanic separation from the control circuit.

USE 02

Capture AC waveforms

Use the closed-loop response for power-conversion and drive-current measurements.

USE 03

Observe current impulses

Acquire fast transients where the sensor and downstream electronics meet the required bandwidth.

USE 04

Feed protection electronics

Scale the output through the burden network for current-limit or fault-detection circuitry.

USE 05

Support energy conversion control

Apply current feedback in inverter, power-supply or electrification control loops.

USE 06

Replace a panel-mounted transducer

Match aperture, mounting, pinout, supply rails, polarity and scaling before substitution.

03
CONTROL DOSSIER

Common buyer questions about CSNS300F-003

Practical purchasing guidance for clearer, more confident decisions.

BUYER CHECKLISTSend the installed configuration

Complete label and revision
Base and power module
Required interfaces
Automation Studio version

01BUYER QUESTION

What does the null-balance method do inside Honeywell CSNS300F-003?

The feedback system drives the magnetic flux in the core toward zero. The balancing secondary current becomes an image of the primary conductor current divided by the secondary-turn ratio.

02BUYER QUESTION

Can Honeywell CSNS300F-003 measure AC, DC and impulse current?

Yes. Honeywell lists AC, DC and impulse current as supported sensed-current types for the CSNS closed-loop family, with a response time below 0.5 microsecond.

03BUYER QUESTION

How is the output from Honeywell CSNS300F-003 converted into a voltage?

Pass the sensor's current output through a burden resistor selected for the required voltage span, sensor range and acquisition input. The resistor value and tolerance affect the final scale and accuracy.

04BUYER QUESTION

Which sensing range should be used when integrating Honeywell CSNS300F-003?

The exact -003 drawing and range document must be checked before design release. Honeywell lists 300 A rated CSNS variants and family sensing ranges of ±320 A or ±600 A, but the suffix controls the exact configuration.

05BUYER QUESTION

Can Honeywell CSNS300F-003 replace another 300 A current sensor without recalibration?

Not automatically. Compare aperture, supply rails, current range, output ratio, pinout, conductor direction, mounting and burden resistor, then recalibrate the downstream measurement chain.

06BUYER QUESTION

What files and circuit details are needed to quote Honeywell CSNS300F-003?

Send the full label, model drawing or existing pinout, primary conductor size and direction, supply rails, burden value, acquisition range, quantity, condition requirement and destination; use the Honeywell CSNS range guide for review.
