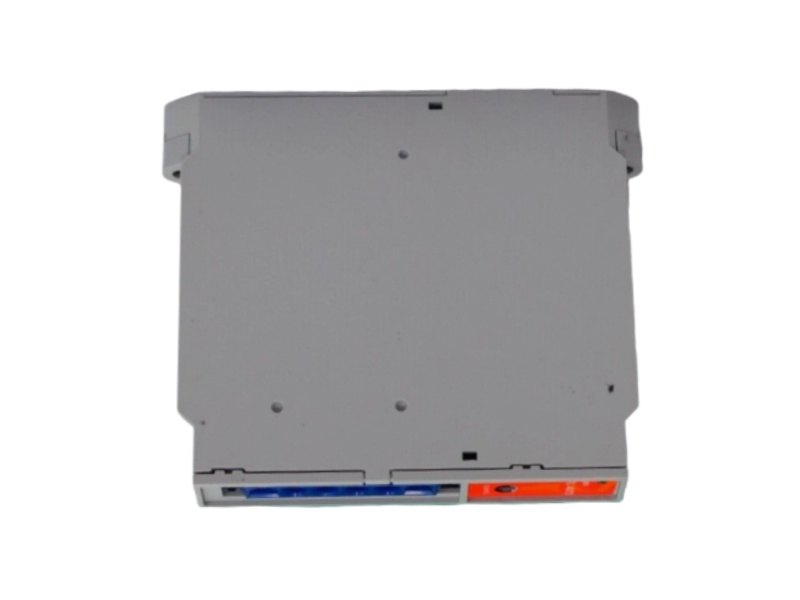

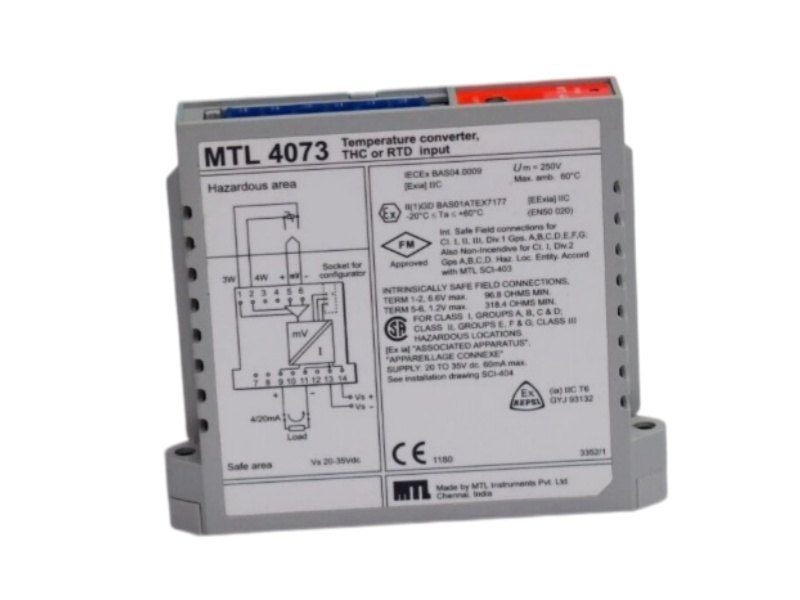

Eaton MTL4073 Temperature Converter

SIEMENS · 3TX7 · INTERFACE RELAY Siemens 3TX7003-1CB00 is a legacy 24 V AC/DC interface relay with different Siemens transition paths for AC and DC service. Confirm the actual coil supply, socket, contacts, wiring and approval requirements before replacement. ORDER NUMBER3TX7003-1CB00 COIL DESIGNATION24 V AC/DC AC PATHLZS:RT4D4R24 DC PATHLZS:RT4D4L24 Order check: identify whether Siemens 3TX7003-1CB00 is operating on AC or DC; then verify the correct LZS transition model and socket.◆ One Year Warranty   ◆ Fast Delivery   ◆ Worldwide Shipping

GRUNDFOS · LEAKAGE MONITORING · AL05 EX Grundfos ALR 20/A Ex is the leakage-sensor relay specified for use only with AL05 Ex. Install the non-Ex relay outside the hazardous area in a minimum-IP54 cabinet and verify electrical ratings, TS 35 mounting and clearance. TYPE DESIGNATIONALR 20/A Ex MATCHED SENSORAL05 Ex only INSTALLATIONOutside hazardous area MAX AMBIENT40 °C Order check: match ALR 20/A Ex with AL05 Ex; verify relay ratings, cabinet IP54 protection, TS 35 mounting and hazardous-area separation.◆ One Year Warranty   ◆ Fast Delivery   ◆ Worldwide Shipping

IFM / VS3000 / INDUSTRIAL FLOW CONTROL ifm SN0150 is a single-channel control monitor for flow sensors with a 90...240 V AC supply, relay outputs, and published flow, temperature and wire-break monitoring functions. Confirm the connected sensor, medium selection, terminal wiring and setpoints before replacement. CONTROL PROFILE 90...240 V AC Relay output · 4 A contact rating Order numberSN0150 Product familyVS3000 MonitoringFlow · Temperature MountingTH35 DIN rail Order check: match SN0150 exactly; verify the AC supply, flow-sensor wiring, liquid/gas selection, relay load and DIN-rail installation. ONE YEAR WARRANTY  —  FAST DELIVERY  —  WORLDWIDE SHIPPING

ABB / Measurement & Analytics / Temperature TTR200 HART Temperature Transmitter The ABB TTR200 is a 17.5 mm rail-mount universal temperature transmitter for RTD, thermocouple, resistance and millivolt inputs with a 4-20 mA HART output. For selection, confirm the sensor type and wiring, measuring range, HART mode, installation environment, safety requirement and any explosion-protection approval needed for the application. ModelTTR200 Mounting35 mm DIN Rail InputRTD / TC / Ohm / mV Output4-20 mA HART ProtectionIP20 Lead Time2-3 DAYS Order check: provide the sensor type, connection method, measuring range, hazardous-area requirement, quantity and destination. ✓ Top Quality ⚡ Fast Delivery ◎ 24/7 Service

Siemens / SIRIUS / 3RW40 3RW4075-6BB44 SIRIUS Soft Starter The Siemens 3RW4075-6BB44 is a discontinued SIRIUS 3RW40 soft starter, size S12, rated at 356 A with 200-460 V AC operating voltage and 230 V AC control supply. The preferred successor is 3RW5075-6AB14. Verify motor current, 200 kW rating conditions, line voltage, control voltage, terminals, dimensions and wiring before replacement. Order Number3RW4075-6BB44 SeriesSIRIUS 3RW40 SizeS12 Rated Current356 A LifecycleDiscontinued Lead Time2-3 DAYS Order check: send the soft-starter label, motor nameplate, mains and control voltages, wiring details, quantity and destination. ✓ Integrity Supply ⚡ Fast Delivery ◎ Worldwide Shipping

Knick / VariTrans / Signal Conditioning B 13000 F1 VariTrans Isolation Amplifier The Knick B 13000 F1 is a VariTrans standard-signal isolation amplifier with auxiliary power for DIN-rail installation. Selectable 0-20 mA, 4-20 mA and 0-10 V input/output values are available with a 230 V AC auxiliary supply. Confirm both selector settings and terminal wiring before replacement. ModelB 13000 F1 FamilyVariTrans FunctionSignal Isolation Input0/4-20 mA or 0-10 V Auxiliary Power230 V AC Lead Time2-3 DAYS Order check: send the complete label, input and output ranges, auxiliary voltage, terminal wiring, quantity and destination. ✓ One Year Warranty ⚡ Best Price ◎ Fast Delivery

Emerson / TopWorx / TV-Series TVF-M20GNPM Valve Controller The TopWorx TVF-M20GNPM is a configured TVF-family compact direct-mount valve controller with a highly visible position display. Confirm the complete label, sensor option, conduit entry, electrical ratings, solenoid arrangement and actuator mounting before ordering this abbreviated configuration code. ModelTVF-M20GNPM FamilyTopWorx TVF DeviceValve Controller MountingCompact Direct Mount DisplayVisible Position Indicator Lead Time2-3 DAYS Order check: send the complete TopWorx label, sensor and solenoid details, conduit entry, actuator, quantity and destination. ✓ Integrity Supply ⚡ Fast Delivery ◎ Worldwide Shipping

Revalco / Protection Relays / Earth Leakage RDT300 Type A Earth Leakage Relay The Revalco RDT300 is a three-module Type A relay with selectable residual-current and trip-delay settings and a changeover output contact. The supplied unit is marked for 230 V AC power. Confirm the exact nameplate designation, toroidal transformer, current threshold, delay and terminal wiring before replacement. ModelRDT300 DeviceType A Earth Leakage Relay Current Range30 mA to 30 A DelayInstantaneous to 10 s Supply230 V AC Lead Time2-3 DAYS Order check: send all side labels, transformer model, selected current and delay, power supply, terminal wiring, quantity and destination. ✓ Top Quality ⚡ Fast Delivery ◎ 24/7 Service
