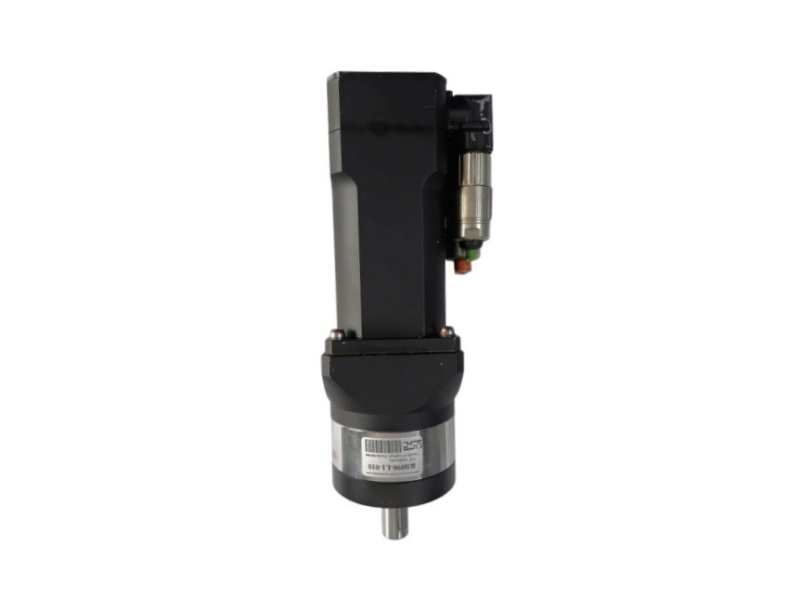

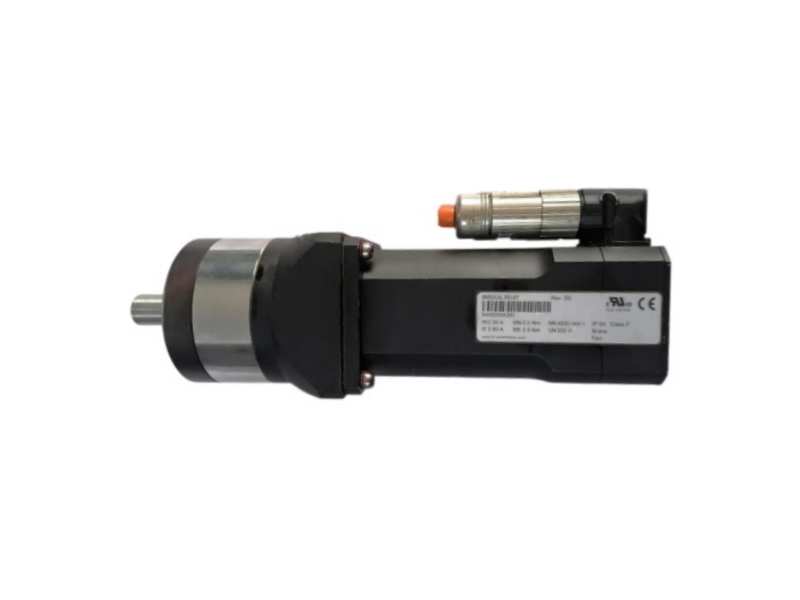

B&R 8MSA3L.R0-67 8MS Synchronous Servo Motor

B&R 8MS / SYNCHRONOUS MOTOR8MSA3L.R0-67
SIZE 3 LONG MOTOR

B&R 8MSA3L.R0-67 is a legacy size-3 long synchronous servo motor for ACOPOS systems, delivering responsive axis control, precise positioning and coordinated machine motion.

2.5 NmSTALL TORQUE
10 NmPEAK TORQUE
12,000MAX RPM
● Integrity Supply● One Year Warranty● Fast Delivery
PRODUCT ENQUIRYMatch the winding, feedback and shaft options.
Inquire Now →WhatsApp +86 18106909650
LEAD TIME2-3 DAYS
Inquire Now
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer B&R Industrial Automation
Item number 8MSA3L.R0-67
Country of Origin Austria
Lead Time 2-3 DAYS
After-Sales Support One Year Warranty
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
OFFICIAL MODULE DATA

8MSA3L motor-family performance data

Official B&R size-3 long-motor values; the legacy configuration suffix must be verified from the nameplate.

Order code8MSA3L.R0-67
Rated power by speed variant0.68 / 0.94 / 1.13 kW
Torque constant by speed variant1.39 / 0.96 / 0.82 Nm/A
Motor familyB&R 8MSA
Rated current by speed variant1.62 / 2.20 / 2.30 A
Recommended cable conductor1.5 mm²
Frame group8MSA3
Stall torque2.5 Nm
Brake inertia0.18 kgcm²
Length codeL
Stall current by speed variant1.80 / 2.61 / 3.02 A
Brake weight0.3 kg
Motor typeThree-phase synchronous servo motor
Peak torque10 Nm
Brake holding torque option4 Nm
Cooling principleSelf-cooling
Peak current by speed variant7.7 / 11.2 / 13 A
Configuration identifierR0-67; verify exact feedback, brake and shaft coding on label
Documented rated-speed variants3000 / 4500 / 6000 rpm
Maximum rotational acceleration83,333 rad/s² without brake
Maximum speed12,000 rpm

01

CAPTURE

Photograph the full motor label and record the complete suffix, cable set and installed orientation.

IDENTITY
02

MEASURE

Confirm shaft, flange, brake and mechanical load details at the existing machine axis.

MECHANICS
03

PAIR

Match the actual winding and feedback configuration to the ACOPOS drive and machine project.

SERVO LOOP
04

COMMISSION

Check phase sequence, feedback polarity, brake release and controlled motion before production.

AXIS TEST
PROCUREMENT DECISIONS

8MSA3L.R0-67 buyer questions

03
01

How can the exact speed winding of B&R 8MSA3L.R0-67 be confirmed?

Use the complete nameplate and motor data because the official 8MSA3L sheet lists several speed variants; do not select one from the frame code alone.

02

What torque information is common to the B&R 8MSA3L.R0-67 motor family?

The official size-3 data identifies the shared stall and peak torque levels for the long motor, while rated values depend on the winding variant.

03

How should an ACOPOS drive be selected for B&R 8MSA3L.R0-67?

Base the choice on the confirmed winding, stall current, required acceleration torque, cable design and machine duty; B&R notes that high acceleration demand may require the next drive size.

04

Why must brake and feedback details be verified for B&R 8MSA3L.R0-67?

The legacy suffix represents configuration choices that affect cable pinout, control behavior and interchangeability, so the label and connectors must be matched.

05

Which mechanical checks are essential before replacing B&R 8MSA3L.R0-67?

Compare flange, centering, shaft geometry, motor length, brake arrangement, connector orientation and mounting clearance with the installed axis.

06

What should be sent when requesting the B&R 8MSA3L.R0-67 manual and quotation?

Provide readable label and connector photos, drive model, cable codes, required quantity, condition, destination and application duty so the exact legacy configuration can be checked.
