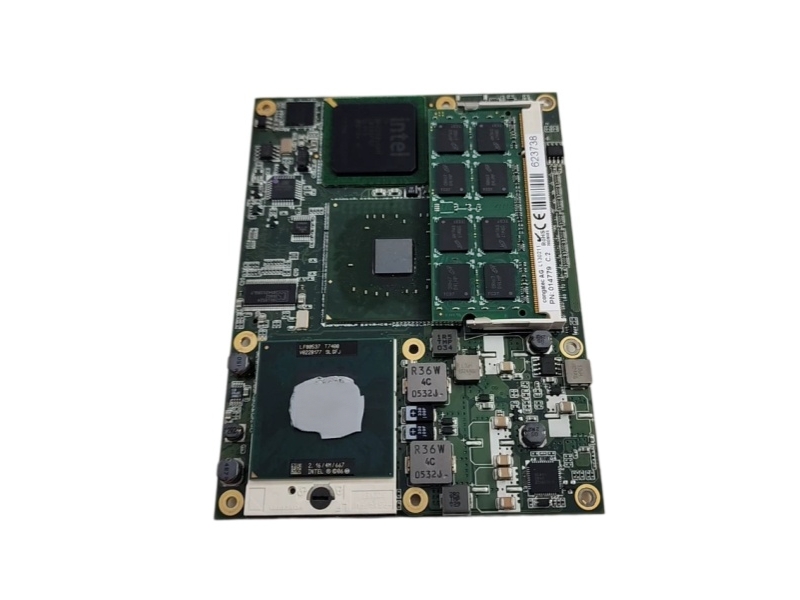

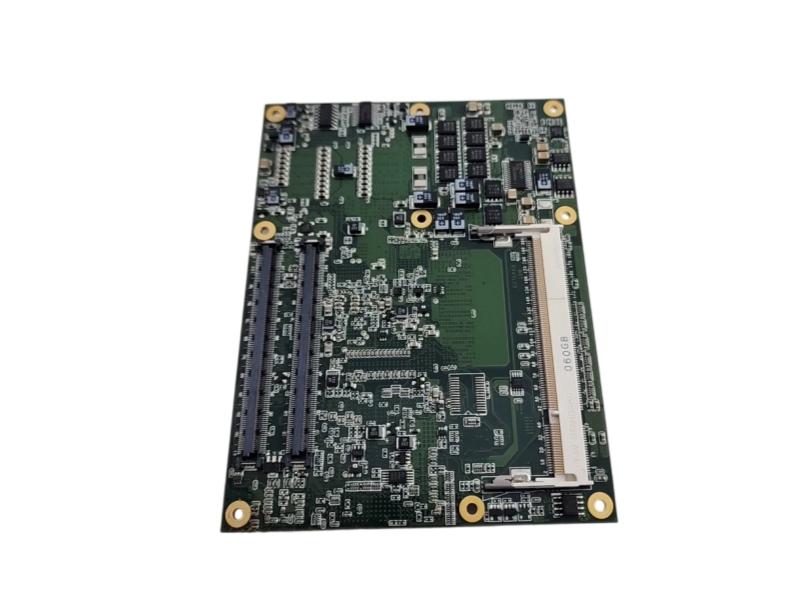

B&R 5PC800.B945-04 Intel Core 2 Duo CPU Board

B&R / AUTOMATION PC 800945GME CPU BOARD
INDUSTRIAL PC COMPUTE CORE

5PC800.B945-04

B&R 5PC800.B945-04 is an industrial PC CPU board with a 2.16 GHz Core 2 Duo T7400, DDR2 memory and integrated GMA 950 graphics.

BEFORE INSTALLATIONConfirm the host APC810, APC820 or PPC800 platform, BIOS, installed memory, display routing and storage configuration.
PRODUCT STATUSOfficial record available
SELECTION CONTROLHOST + RAM CHECK
One Year WarrantyIntegrity SupplyWorldwide Shipping
INQUIRE NOW
  • Worldwide delivery
  • Delivery from stock
  • In stock really means in stock
  • No account required
  • Shipped from the China
Product Specifications
Manufacturer B&R
Item number 5PC800.B945-04
Country of Origin Austria
Lead Time 2-3 DAYS
After-Sales Support For after-sales support, please contact May.
HS Code / Commodity code Please confirm the destination before shipping.
FAQ

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Yes,we offer one year warranty for all new products.

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

Normally 3-5 working days,some remote areas 5-7 days more.

Product information
01
FIELD JOURNAL

5PC800.B945-04 Processor and Platform Parameters

Official B&R processor, chipset, memory, graphics, storage, firmware and host-platform details for the exact CPU board.

PROCESSOR, CHIPSET & MEMORY
PROCESSORT7400
ARCHITECTURE65 nm
L1 CACHE32 kB
L2 CACHE4 MB
FRONT-SIDE BUS667 MHz
INTEL 64Supported
VIRTUALIZATIONIntel VT-x supported
SPEEDSTEPEnhanced Intel SpeedStep supported
CHIPSETIntel 945GME
I/O CONTROLLERIntel 82801 GHM ICH7M-DH
MEMORY SLOTS2 × DDR2 SO-DIMM
GRAPHICS, STORAGE & PLATFORM INTEGRATION
MAXIMUM MEMORY3 GB
GRAPHICS CONTROLLERIntel GMA 950
GRAPHICS MEMORYUp to 224 MB
COLOR DEPTHUp to 32-bit
DVI CAPABILITY2 × SDVO, up to 1920 x 1080
RGB CAPABILITYUp to 2048 x 1536 at 75 Hz
BOOT FIRMWAREEmbedded AMI BIOS
MASS STORAGE INTERFACES2 × SATA, 1 × IDE
POWER MANAGEMENTACPI 2.0 with S3
ETHERNET CONTROLLERRealtek RTL8111B
MANDATORY MEMORY OPTIONSPC2-5300 B&R SO-DIMM
02
FIELD JOURNAL

How 5PC800.B945-04 Restores an Automation PC 800 Platform

A service route from host identification and data backup to memory transfer, display validation and controlled restart.

USE 01

Recover an industrial PC controller

Replace a failed compute board after preserving the machine image, license files and peripheral configuration.

USE 02

Run dual-core machine software

Use the T7400 platform for the operating system, visualization and automation workloads supported by the original installation.

USE 03

Drive integrated or external displays

Route graphics through the host system's implemented DVI or RGB interface and validate the required resolution.

USE 04

Retain legacy mass storage

Reconnect the original SATA or IDE storage path only after checking connector, image and boot-order compatibility.

USE 05

Service B&R Panel PC 800 hardware

Use the appropriate host manual to access, replace and test the processor board inside a compatible panel PC.

USE 06

Maintain a controlled spare image

Keep a documented CPU-board, memory and BIOS combination for recovery of identical deployed machines.

03
FIELD JOURNAL

Common buyer questions about 5PC800.B945-04

Practical purchasing guidance for clearer, more confident decisions.

01BUYER QUESTION

Which host systems officially document B&R 5PC800.B945-04?

B&R links the CPU board to the Automation PC 810, Automation PC 820 and Panel PC 800 manuals. Confirm the exact host assembly and connector arrangement before replacement.

02BUYER QUESTION

Why must the SO-DIMM modules be checked when ordering B&R 5PC800.B945-04?

The CPU board has two DDR2 sockets and B&R lists specific PC2-5300 memory modules as mandatory accessories. Record the installed part numbers and total capacity.

03BUYER QUESTION

Which display capabilities can B&R 5PC800.B945-04 support?

The official data lists Intel GMA 950 graphics, two SDVO paths for DVI and an RGB path. The usable connector and resolution depend on the host platform's implemented display hardware.

04BUYER QUESTION

What should be backed up before exchanging B&R 5PC800.B945-04?

Preserve the storage image, licenses, BIOS settings, boot order, network configuration, machine application and connected-peripheral records before removing the board.

05BUYER QUESTION

How should a BIOS update be handled on B&R 5PC800.B945-04?

Use only the B&R BIOS package for the 945GME board and follow the host manual. Confirm current version, stable power and recovery procedure before flashing.

06BUYER QUESTION

How should official host documentation and current sourcing data be combined for a B&R 5PC800.B945-04 quotation?

Use the matching B&R Automation PC 810, Automation PC 820 or Panel PC 800 manual and confirm supply for the exact board label. Provide host label, BIOS screen, SO-DIMM labels, storage connections, condition, quantity and destination.
