B&R 5AC901.I485-00 RS232 RS422 RS485 Interface Option

LENZE / CAN SYSTEM BUSCAN REPEATER TWO-SEGMENT ISOLATION EMF2176IB Lenze EMF2176IB is a DIN-rail CAN repeater that electrically separates two CAN segments and can also provide a service access point during operation. ORDERING NOTEConfirm the hardware revision, isolation requirement, identical CAN baud rates on both segments, bus load, termination, node count, terminal wiring, shield grounding and available panel space before installing the repeater. REPEATER SNAPSHOT NETWORKCAN1 / CAN2 BAUD RATEUp to 500 kbit/s SUPPLY24 VDC  Brand New Original Fast Delivery Worldwide Shipping INQUIRE NOW

INFINEON · ECONOBRIDGE POWER MODULE PROFILE / 104N16ACTIVE & PREFERRED RECTIFIER + BRAKE CHOPPER DDB6U104N16RR Infineon DDB6U104N16RR is an EconoBRIDGE power module combining a diode bridge, brake chopper and NTC in a compact isolated-base package. 1600 V CLASS104 A RMS550 A SURGE POWER NOTEThermal interface and chopper design must match the converter AC INPUTDIODE BRIDGEDC LINK VERIFY BEFORE ORDERConfirm OPN, package, thermal design and chopper circuit Brand New OriginalOne Year WarrantyFast DeliveryINQUIRE NOW

SIEMENS · SITOP POWER24 V DC · 40 A MODULAR POWER SUPPLY 6EP1437-3BA00 Siemens 6EP1437-3BA00 is a SITOP modular regulated supply converting 3-phase 400–500 V AC to 24 V DC at 40 A for automation systems. 960 W3-PHASE Brand New OriginalOne Year WarrantyFast Delivery DC POWERRegulated 24 V supply for automation loads 400–500V AC40 A90% EFF. ORDER CHECK3-phase 400–500 V AC input REQUEST A QUOTEInquire Nowab@mooreplc.com  ↗

  HONEYWELL · CSNS CURRENT SENSING CLOSED LOOP · 300 A NULL-BALANCE CURRENT FEEDBACK CSNS300F-001 Honeywell CSNS300F-001 is a CSNS-series closed-loop current sensor for accurate measurement of AC, DC and impulse currents in power-control applications. INSTALLATION MATCH Confirm the complete suffix, primary conductor arrangement, supply, output connection and installed mechanical format from the nameplate before exchange. APPLICATION SNAPSHOT Fast closed-loop sensing for AC, DC and impulse current RATED FAMILY300 A class TECHNOLOGYClosed-loop Hall PRODUCT STATUSOfficial Honeywell listing SELECTION CONTROLMatch range + connection Brand New OriginalIntegrity SupplyFast Delivery INQUIRE NOW

  B&R · AUTOMATION PC 810 CORE 2 DUO · GM45 INDUSTRIAL PC PROCESSOR BOARD 5PC800.BM45-01 B&R 5PC800.BM45-01 is an Automation PC CPU board with an Intel Core 2 Duo P8400 processor, GM45 chipset and dual DDR3 SO-DIMM sockets. INSTALLATION MATCH Verify the host APC810 or PPC800 configuration, mandatory B&R memory module, BIOS settings and storage interfaces before board replacement. APPLICATION SNAPSHOT Dual-core GM45 CPU board for APC810 and PPC800 systems PROCESSORCore 2 Duo P8400 MEMORYDDR3 · up to 8 GB PRODUCT STATUSOfficial B&R record SELECTION CONTROLMatch platform + memory Top QualityOne Year WarrantyFast Delivery INQUIRE NOW

  B&R · AUTOMATION PC GRAPHICS AP LINK · SDL / DVI SECOND GRAPHICS LINE 5AC801.SDL0-00 B&R 5AC801.SDL0-00 is an AP Link graphics adapter that creates a second graphics line with SDL and DVI signaling for supported Automation PC systems. INSTALLATION MATCH Verify the CPU board, host slot, display interface and required AP Link or DVI connection; RGB signaling is not supported by this adapter. APPLICATION SNAPSHOT AP Link adapter for SDL and DVI display signaling INTERFACESDL / DVI CONNECTORFemale DVI-D PRODUCT STATUSOfficial B&R record SELECTION CONTROLMatch CPU board + display Brand New OriginalBest PriceWorldwide Shipping INQUIRE NOW

IFM / CAPACITIVENON-FLUSH PROXIMITY SENSOR KB5062   Adjustable PNP sensor for object or level detection MATERIAL TEST ADVISEDPNP INPUT REQUIREDM12 CABLE MATCH NON-CONTACT MATERIAL DETECTION20 MM RANGE ifm KB5062 is an adjustable capacitive proximity sensor with a PNP normally open output. Its non-flush cylindrical housing detects suitable solid or liquid targets without mechanical contact. MATCH BEFORE ORDERINGConfirm target material, mounting clearance, achievable sensing distance, PNP input logic and the mating M12 cable before ordering. OUTPUTPNP normally open SWITCHING RATE40 Hz HOUSINGØ34 mm PBT  Brand New Original One Year Warranty INQUIRE NOW

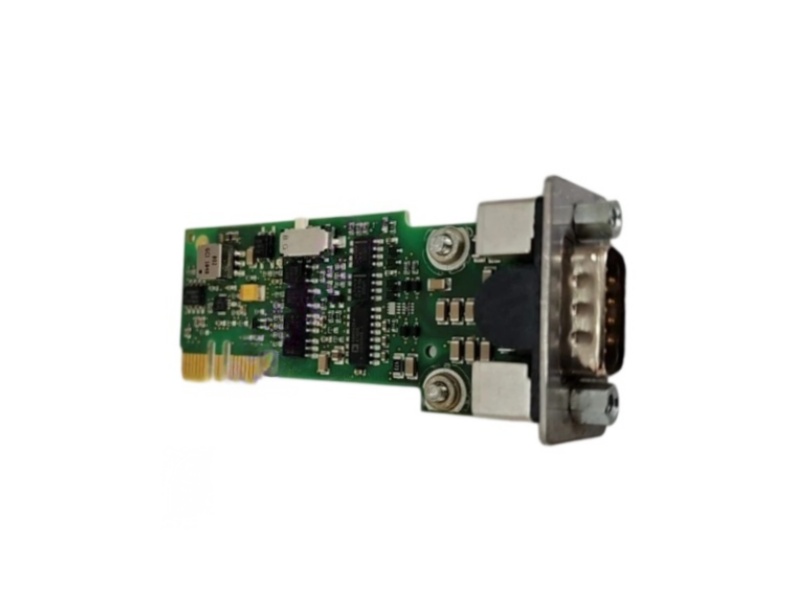

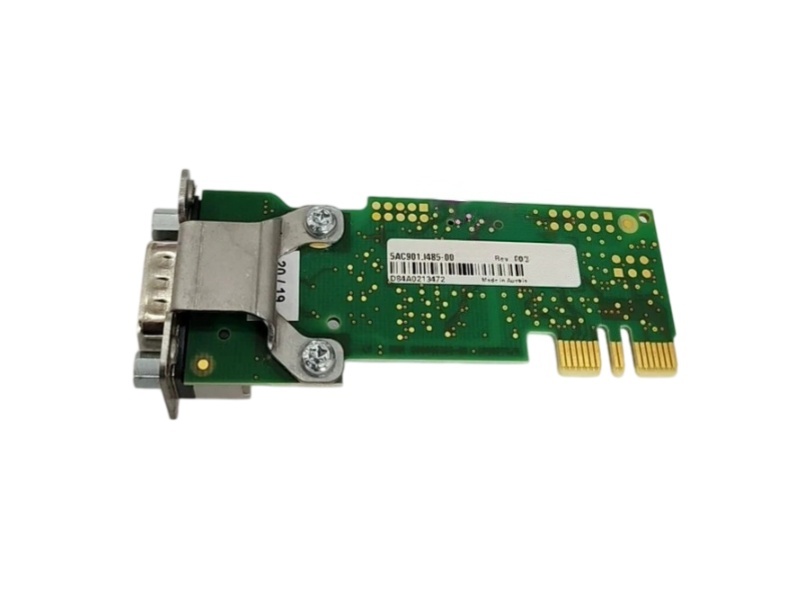

  B&R · INDUSTRIAL PC INTERFACERS232 / RS422 / RS485 GALVANICALLY ISOLATED SERIAL OPTION 5AC901.I485-00 B&R 5AC901.I485-00 is a galvanically isolated RS232, RS422 and RS485 interface option with automatic operating-mode selection for supported Automation PC and Panel PC systems. INTERFACE3 serial standards CONNECTOR9-pin DSUB male MAX. RATE115 kbit/s SERIAL ROUTEOne port with connection-selected operating mode HOSTCOM Electrical connection selects RS232, RS422 or RS485 SELECTION NOTEConfirm computer family, IF option slot and Automation Studio support Brand New OriginalFast DeliveryWorldwide ShippingINQUIRE NOW
