B&R 5AC801.SDL0-00 Automation PC AP Link Graphics Adapter

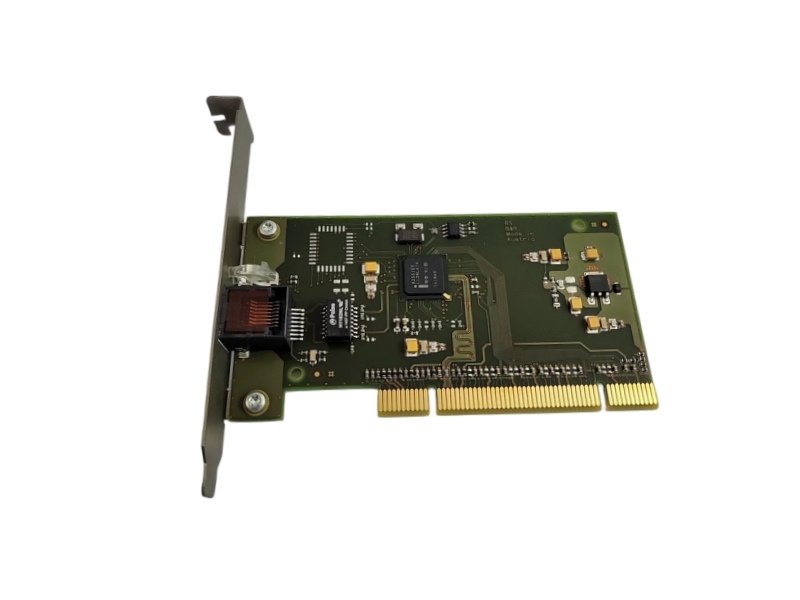

B&R / INDUSTRIAL PC ACCESSORYUNIVERSAL PCI ETHERNET PCI NETWORK INTERFACE CARD 5ACPCI.ETH1-01 B&R 5ACPCI.ETH1-01 is a universal 3.3 V and 5 V half-size PCI card that adds one shielded 10/100 Mbit/s Ethernet interface to a compatible industrial PC. CONFIRM THE HOST PCI SLOTVerify the computer model, PCI voltage support, slot clearance, network role, cable category and existing operating-system image before ordering. SUPPLY STATUSOfficial product record REPLACEMENTNo direct successor published OFFICIAL CONFIGURATIONSingle-port industrial Ethernet PCI card INTERFACE10/100 Mbit/s Ethernet CARD FORMATHalf-size PCI SLOT VOLTAGE3.3 V and 5 V CONNECTORShielded RJ45 Brand New Original Top Quality Worldwide Shipping REQUEST A 5ACPCI.ETH1-01 QUOTE

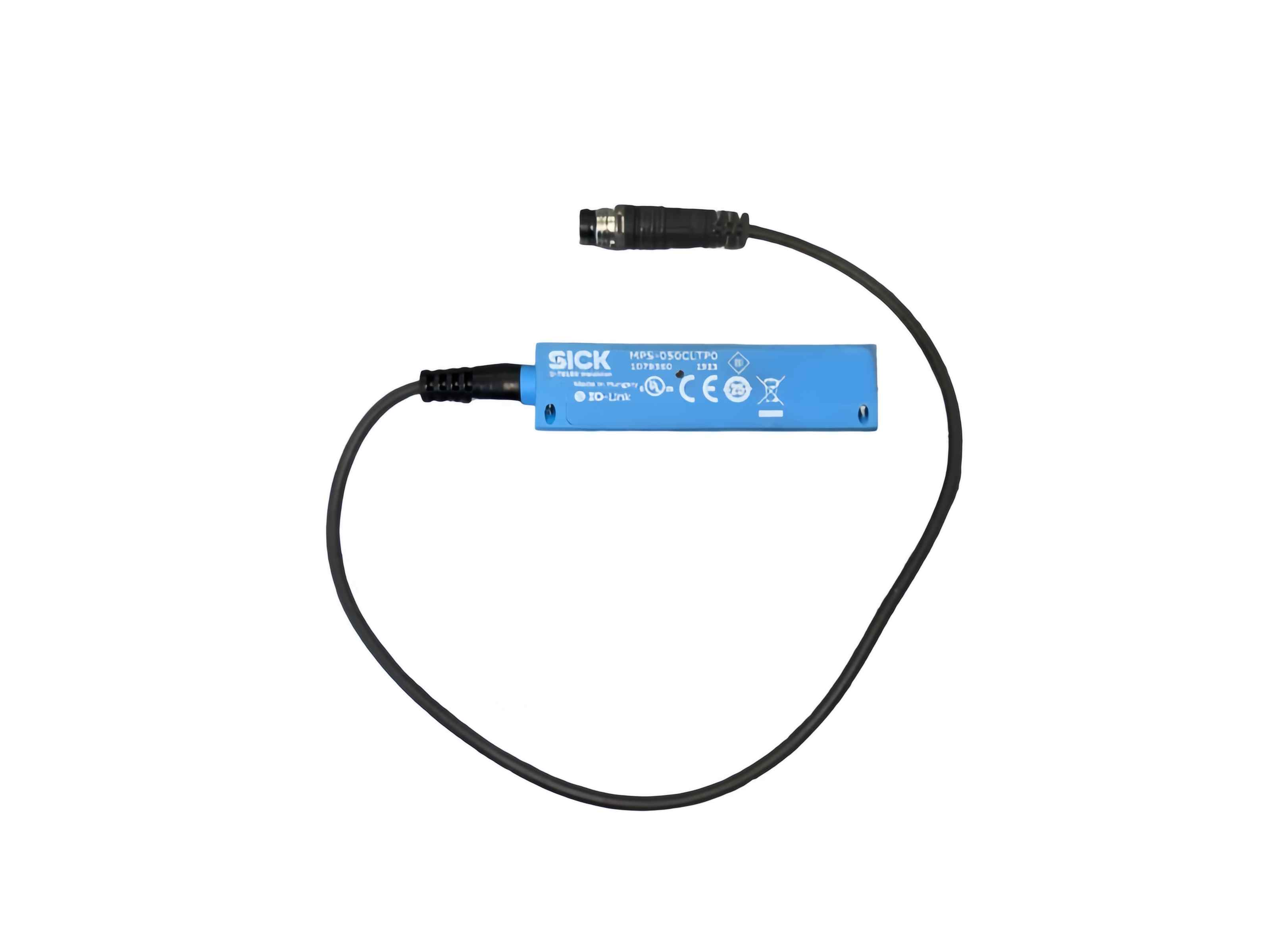

SICK / MPS-C50 MM IO-LINK SENSOR MAGNETIC CYLINDER POSITION SENSOR MPS-050CLTP0 SICK MPS-050CLTP0 is a 50 mm MPS-C magnetic cylinder position sensor with analog voltage/current output, four switching points and IO-Link V1.1. MATCH SLOT, RANGE AND OUTPUT WIRINGConfirm the C-slot or adapter, measuring range, M8 pinout, analog-output selection, switching logic and IO-Link master before ordering. SUPPLY STATUSOfficial SICK datasheet REPLACEMENTNo direct successor published OFFICIAL CONFIGURATIONMPS-C analog and IO-Link sensor MEASURING RANGE50 mm ±1 mm OUTPUTS0-10 V / 4-20 mA DIGITAL LINKIO-Link V1.1 MOUNTINGC-slot with adapters Brand New Original Fast Delivery Top Quality REQUEST A MPS-050CLTP0 QUOTE

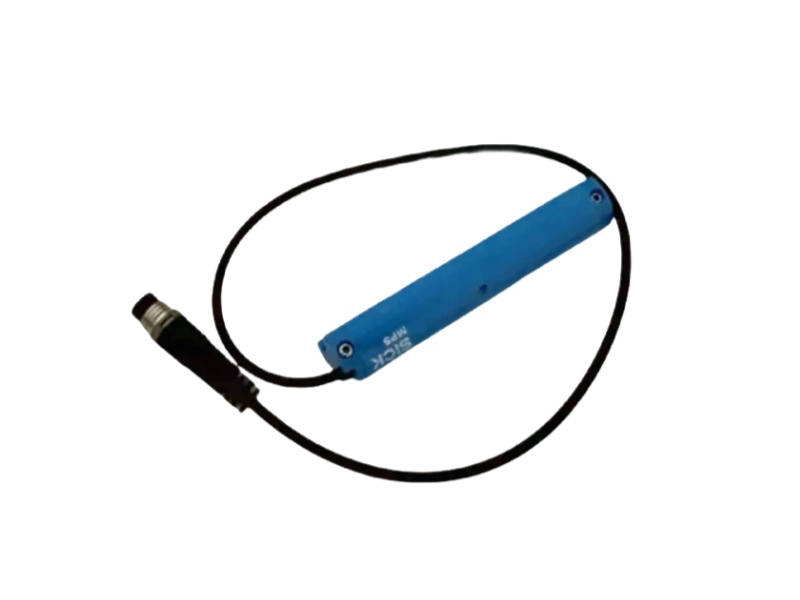

SICK / MPS-T64 MM ANALOG SENSOR MAGNETIC CYLINDER POSITION SENSOR MPS-064TSNP0 SICK MPS-064TSNP0 is a 64 mm MPS-T magnetic cylinder position sensor with 0-10 V and 4-20 mA analog outputs for T-slot and adapter-based installations. MATCH T-SLOT, RANGE AND ANALOG INPUTConfirm the cylinder profile, adapter, measuring length, active wired output, M8 pinout, controller input and mounting position before ordering. SUPPLY STATUSOfficial SICK datasheet REPLACEMENTNo direct successor published OFFICIAL CONFIGURATIONMPS-T continuous analog sensor MEASURING RANGE64 mm ±1 mm ANALOG OUTPUT0-10 V / 4-20 mA MOUNTINGT-slot with adapters PROTECTIONIP67 Brand New Original Integrity Supply Fast Delivery REQUEST A MPS-064TSNP0 QUOTE

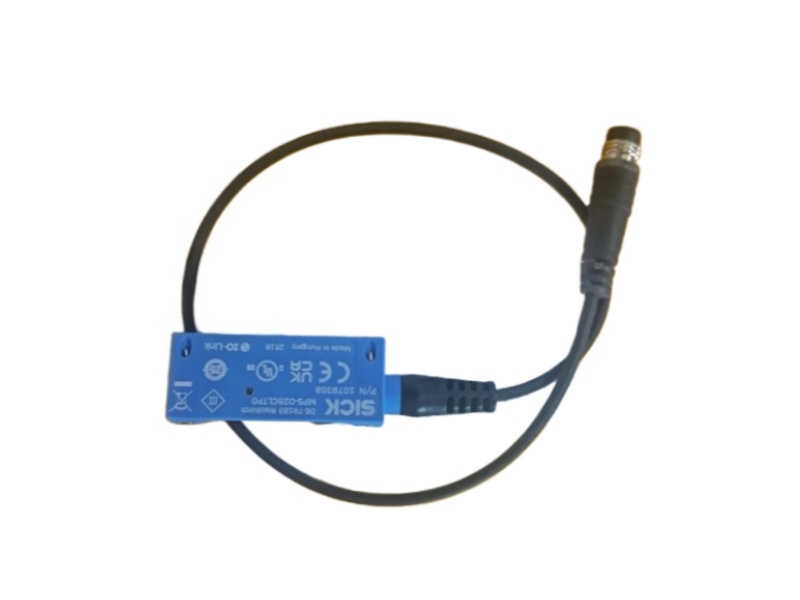

  SICK · MPS-C POSITION SENSING 25 MM · IO-LINK CONTINUOUS CYLINDER POSITION MPS-025CLTP0 SICK MPS-025CLTP0 is an MPS-C magnetic cylinder position sensor with a 25 mm measuring range, analog output, switching functions and IO-Link communication. INSTALLATION MATCH Verify C-slot geometry, magnet travel, cable orientation, analog mode, IO-Link master and teach settings before replacement. APPLICATION SNAPSHOT Analog and digital position feedback for C-slot cylinders MEASURING RANGE25 mm ±1 mm PART NUMBER1079358 PRODUCT STATUSOfficial SICK data sheet SELECTION CONTROLMatch slot + output mode Top QualityOne Year WarrantyWorldwide Shipping INQUIRE NOW

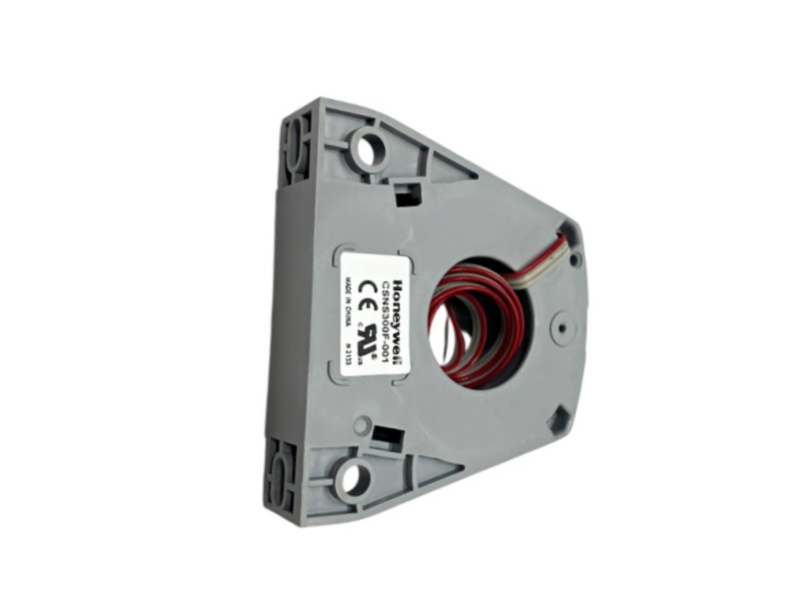

  HONEYWELL · CSNS CURRENT SENSING CLOSED LOOP · 300 A NULL-BALANCE CURRENT FEEDBACK CSNS300F-001 Honeywell CSNS300F-001 is a CSNS-series closed-loop current sensor for accurate measurement of AC, DC and impulse currents in power-control applications. INSTALLATION MATCH Confirm the complete suffix, primary conductor arrangement, supply, output connection and installed mechanical format from the nameplate before exchange. APPLICATION SNAPSHOT Fast closed-loop sensing for AC, DC and impulse current RATED FAMILY300 A class TECHNOLOGYClosed-loop Hall PRODUCT STATUSOfficial Honeywell listing SELECTION CONTROLMatch range + connection Brand New OriginalIntegrity SupplyFast Delivery INQUIRE NOW

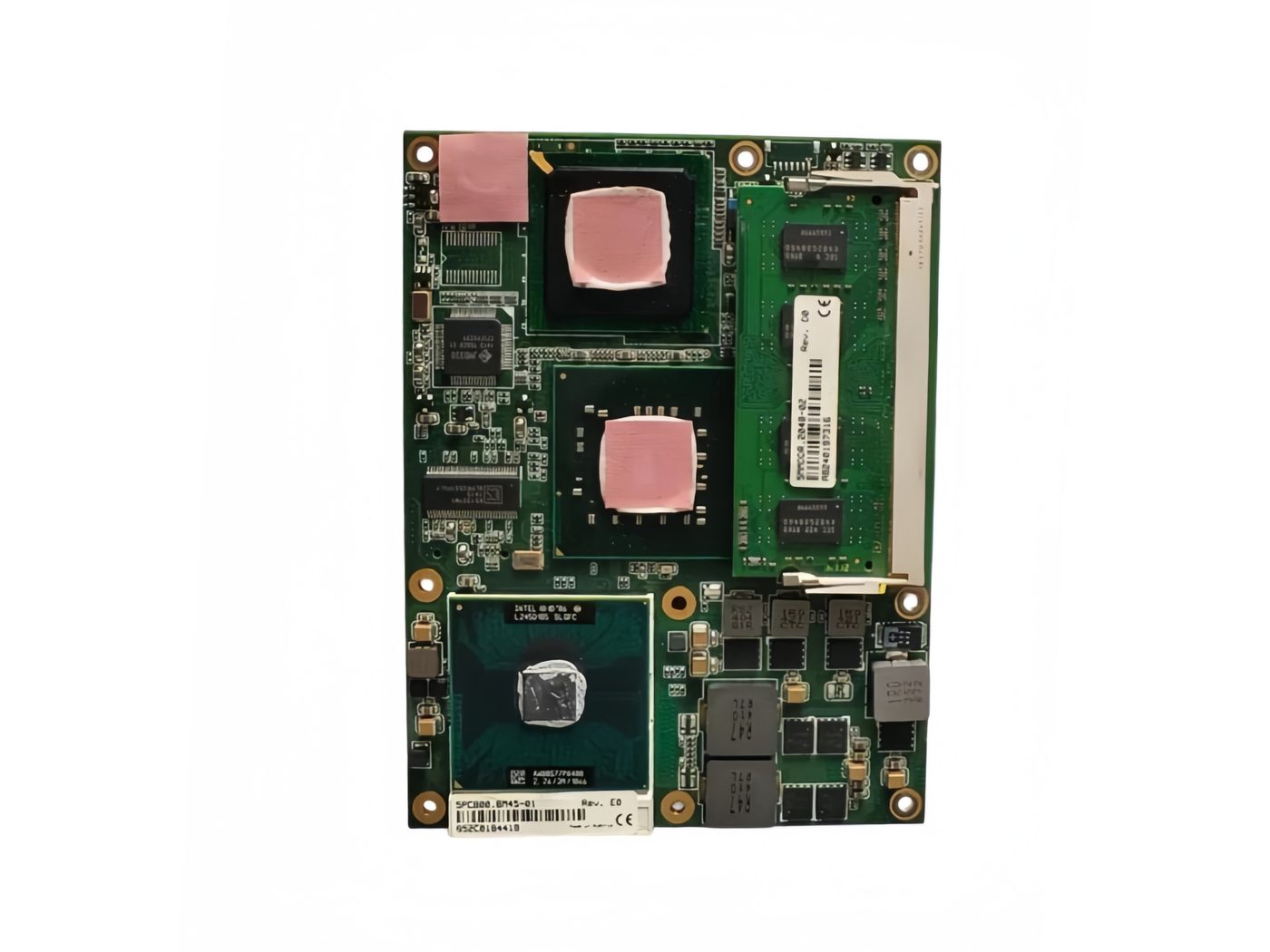

  B&R · AUTOMATION PC 810 CORE 2 DUO · GM45 INDUSTRIAL PC PROCESSOR BOARD 5PC800.BM45-01 B&R 5PC800.BM45-01 is an Automation PC CPU board with an Intel Core 2 Duo P8400 processor, GM45 chipset and dual DDR3 SO-DIMM sockets. INSTALLATION MATCH Verify the host APC810 or PPC800 configuration, mandatory B&R memory module, BIOS settings and storage interfaces before board replacement. APPLICATION SNAPSHOT Dual-core GM45 CPU board for APC810 and PPC800 systems PROCESSORCore 2 Duo P8400 MEMORYDDR3 · up to 8 GB PRODUCT STATUSOfficial B&R record SELECTION CONTROLMatch platform + memory Top QualityOne Year WarrantyFast Delivery INQUIRE NOW

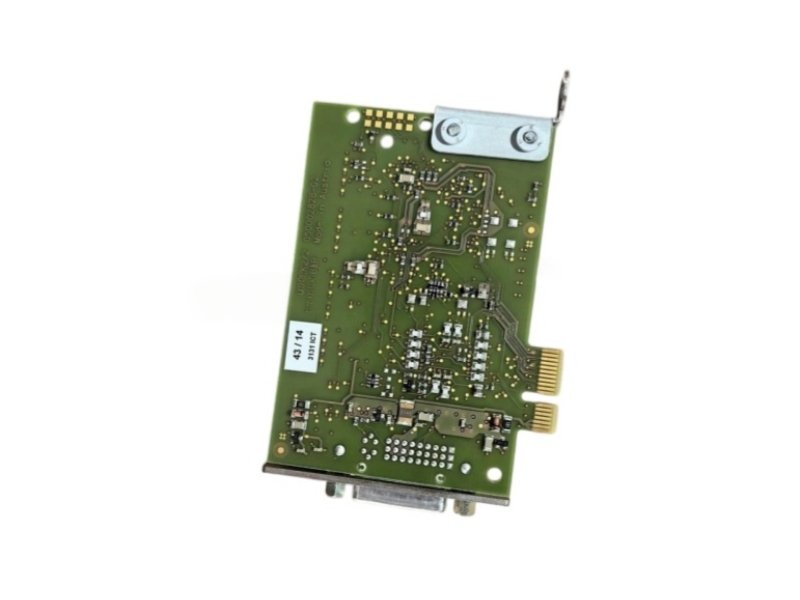

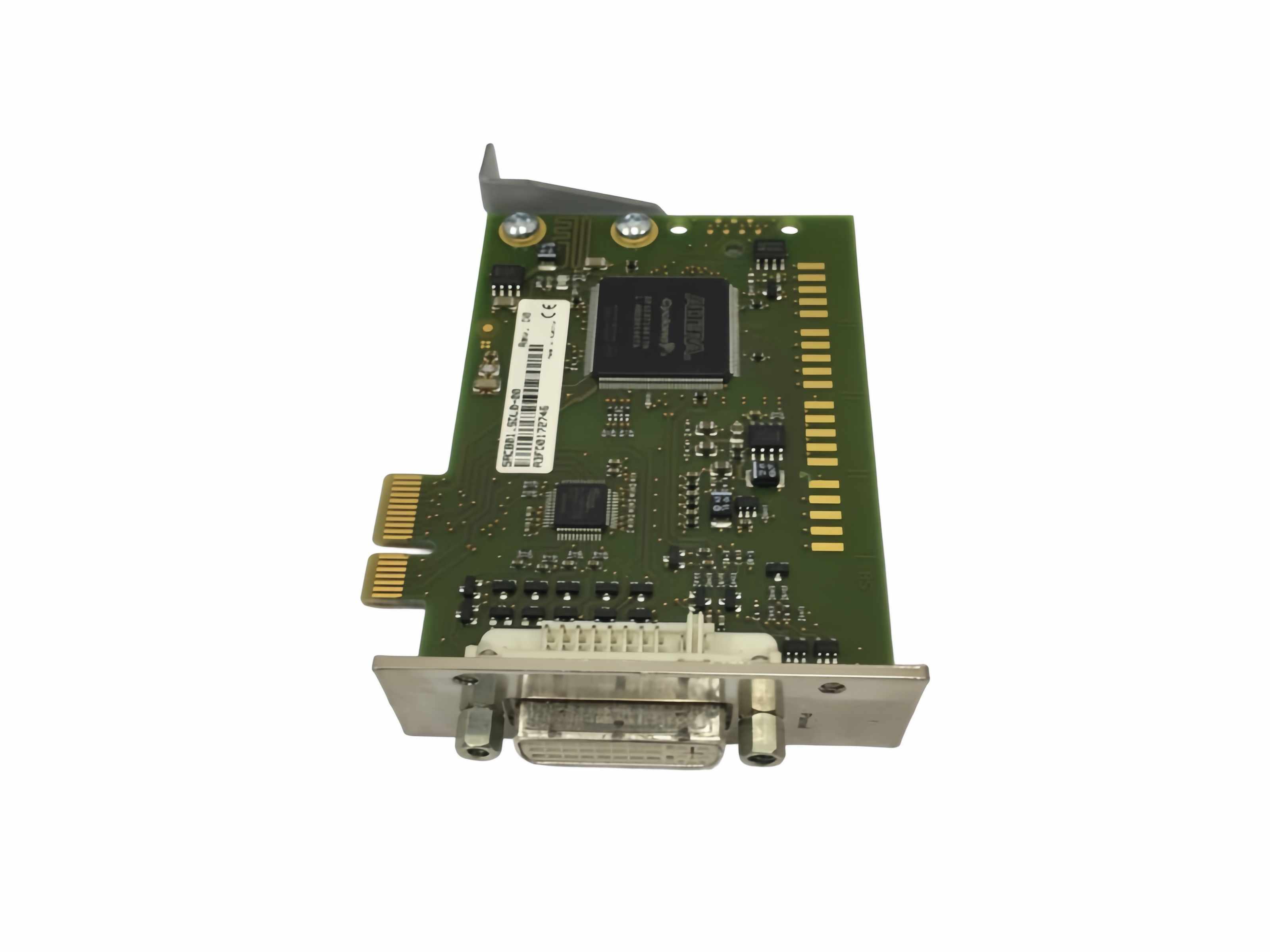

  B&R · AUTOMATION PC GRAPHICS AP LINK · SDL / DVI SECOND GRAPHICS LINE 5AC801.SDL0-00 B&R 5AC801.SDL0-00 is an AP Link graphics adapter that creates a second graphics line with SDL and DVI signaling for supported Automation PC systems. INSTALLATION MATCH Verify the CPU board, host slot, display interface and required AP Link or DVI connection; RGB signaling is not supported by this adapter. APPLICATION SNAPSHOT AP Link adapter for SDL and DVI display signaling INTERFACESDL / DVI CONNECTORFemale DVI-D PRODUCT STATUSOfficial B&R record SELECTION CONTROLMatch CPU board + display Brand New OriginalBest PriceWorldwide Shipping INQUIRE NOW

IFM / CAPACITIVENON-FLUSH PROXIMITY SENSOR KB5062   Adjustable PNP sensor for object or level detection MATERIAL TEST ADVISEDPNP INPUT REQUIREDM12 CABLE MATCH NON-CONTACT MATERIAL DETECTION20 MM RANGE ifm KB5062 is an adjustable capacitive proximity sensor with a PNP normally open output. Its non-flush cylindrical housing detects suitable solid or liquid targets without mechanical contact. MATCH BEFORE ORDERINGConfirm target material, mounting clearance, achievable sensing distance, PNP input logic and the mating M12 cable before ordering. OUTPUTPNP normally open SWITCHING RATE40 Hz HOUSINGØ34 mm PBT  Brand New Original One Year Warranty INQUIRE NOW
