Description:The 2094-BM03-S is the highest-current-density 50 mm Axis Module in the Kinetix 6000 line.
Product condition: New
Packing condition:Factory Packing
100% insured shipping: A guarantee for your purchases
PLC Autocontroller DELIVER PARTS TO WORLD.
| Manufacturer | Allen-Bradley |
| Item number | 2094-BM03-S |
| Country of Origin | United States |
| Lead Time | In stock |
| After-Sales Support | 12-months |
| HS Code / Commodity code | 8537101190 |
Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.
Yes,we offer one year warranty for all new products.
Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.
Normally 3-5 working days,some remote areas 5-7 days more.

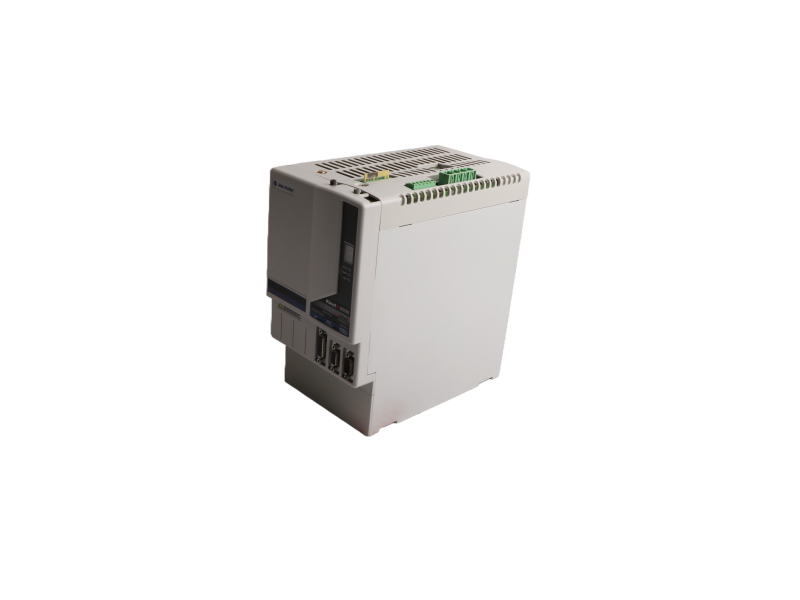

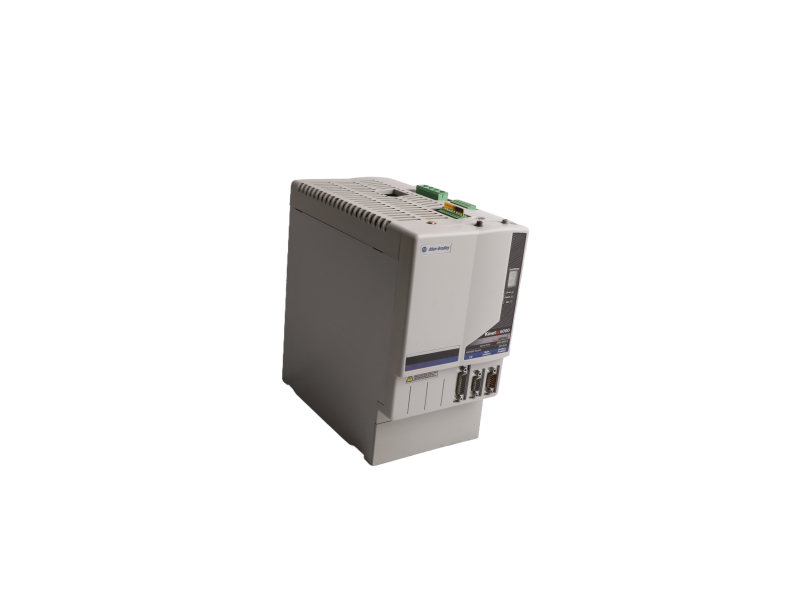

Allen-Bradley 2094-BM03-S Kinetix 6000 Axis Module
30 A book-slice for high-dynamic, multi-axis lines
May | ab@mooreplc.com | +86-18106909650 | WeChat: dcsfcs
The BM03-S is the highest-current-density 50 mm Axis Module in the Kinetix 6000 line.
Rated 15 A continuous / 30 A peak, it drives 7.5 kW-class servo motors without widening the cabinet—ideal for:
High-speed index tables (≤ 120 rpm change-over)
High-inertia conveyor rollers
Spindle orientation or tapping units
DC-bus: 650-750 V (shared with IAM)
Continuous output: 15 A rms @ 45 °C
Peak output: 30 A (2 s, 200 %)
PWM frequency: 8 kHz std. (4 kHz high-torque option)
STO: SIL 3 / PLe, embedded in rail
Feedback: auto-detect Hiperface, incremental, resolver
Peak-Enhance firmware – 30 A for 2 s eliminates the need to oversize the power supply for rapid acceleration.
DC-bus energy recycling – braking power is instantly reused by adjacent axes, cutting external resistor sizing by 30-50 %.
Optimized thermal design – aluminum baseplate couples to the rail; no additional fan required up to 50 °C.
|
Type |
Part Number |
Cont. A |
Peak A |
Features |
Upgrade Note |
|
Low current |
2094-BM01-S |
4.5 |
9 |
≤ 2.2 kW |
Drop-in replacement, no parameter change |
|
Mid current |
2094-BM02-S |
10.3 |
15 |
2.2-5 kW |
45 % current boost, same mechanical width |
|
High current |
2094-BM03-S |
15 |
30 |
5-7.5 kW |
Double peak, ideal for high inertia |
|
Higher power |
2094-BM05-S |
25 |
49 |
11 kW |
Requires 75 mm width & longer rail |
|
230 V system |
2094-AM03-S |
15 |
30 |
3-5 kW 200 V |
Same mechanics, different voltage class |
All B/C series support Peak-Enhance—activate 250 % peak with one click in Logix Designer.
20 years of Allen-Bradley motion know-how — packing 30 A into a 50 mm slice.
