Allen-Bradley 2094-BC04-M03-S Kinetix 6000 Multi-Axis Servo Drive

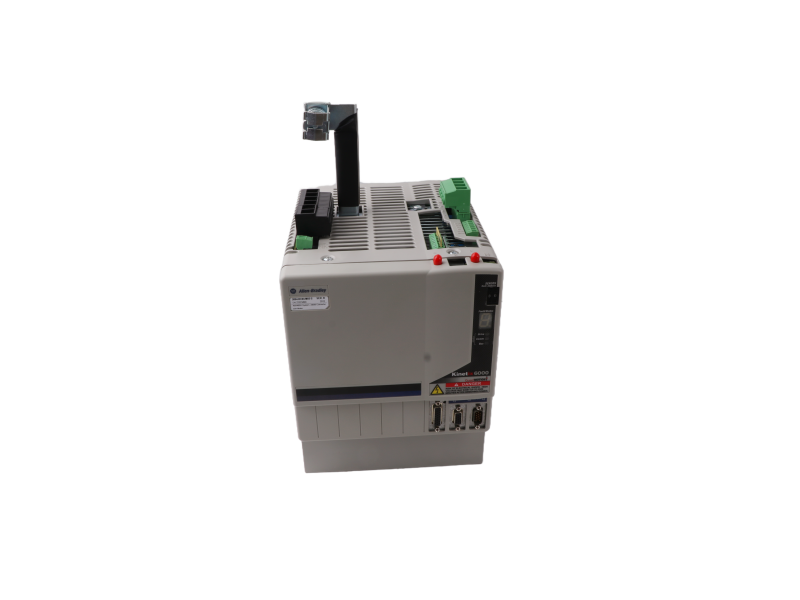

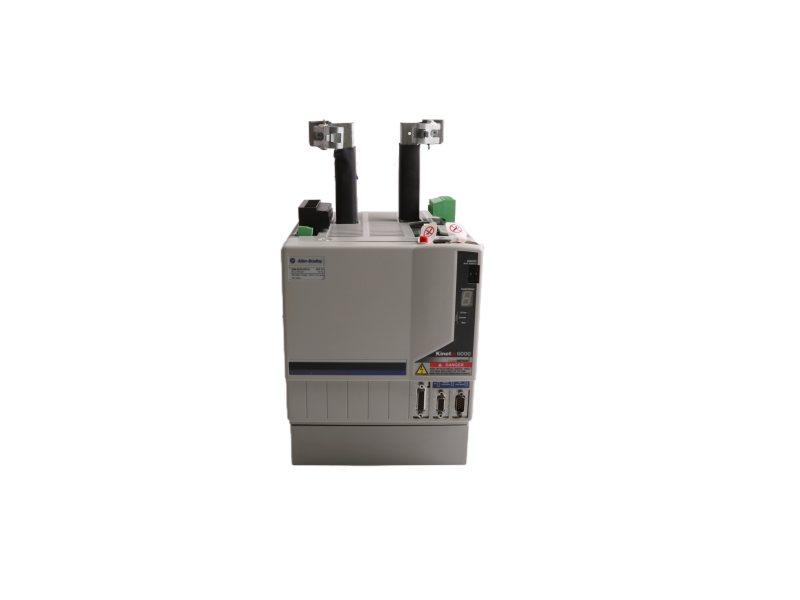

Name: Allen-Bradley 2094-BC04-M03-S Kinetix 6000 Multi-Axis Servo Drive
Availability: InStock

Based on over 5000 reviews

Description:The 2094-BC04-M03-S is a 400 V-class Kinetix 6000 Integrated Axis Module (IAM).

Product condition: New

Packing condition:Factory Packing

100% insured shipping: A guarantee for your purchases

PLC Autocontroller DELIVER PARTS TO WORLD.

Inquire Now

Worldwide delivery
Delivery from stock
In stock really means in stock
No account required
Shipped from the China

Product Specifications

Manufacturer	Allen-Bradley
Item number	2094-BC04-M03-S
Country of Origin	United States
Lead Time	In stock
After-Sales Support	12-months
HS Code / Commodity code	8537101190

FAQ

How long is my quote valid for?

Quotes are valid for 30 days from the day the quote is received unless stated otherwise at the time of quotation.

Is there any warranty?

Yes,we offer one year warranty for all new products.

Do you offer global delivery?

Yes. We worked with FEDEX/DHL/TNT/UPS/ allowing us to provide swift global delivery of parts to any corner of the world.

How many days will it take for my part to arrive?

Normally 3-5 working days,some remote areas 5-7 days more.

Product information

Allen-Bradley 2094-BC04-M03-S Kinetix 6000 Multi-Axis Servo Drive – Compact & Efficient Motion Solution
Released by Sales Manager May | 20 years of automation distribution experience
E-mail: ab@mooreplc.com | Phone/WhatsApp: +86-18106909650 | WeChat: dcsfcs

1. Product Snapshot

The 2094-BC04-M03-S is a 400 V-class Kinetix 6000 Integrated Axis Module (IAM) that integrates a 28 kW three-phase rectifier and a 30 A peak inverter in a slim 100 mm book-style chassis.

It serves as the “front end” of a multi-axis SERCOS servo system: one shared DC-bus can feed up to eight additional Axis Modules (AM), letting you build an entire machine without extra transformers or contactors.

2. Key Electrical Data

Item	Value
Input voltage	324…528 V rms 3-ph, 47–63 Hz
Continuous power	28 kW
DC-bus output	650…750 V DC nominal
Inverter output	15 A cont. / 30 A peak (2 s) @ 460 V
Overload	200 % with Peak-Enhance firmware
Built-in shunt	200 W cont. / 18 kW peak
Control supply	24 V DC ±10 %, 1 A
Communication	SERCOS fibre ring, 4 or 8 Mbps

3. Mechanical & Environmental Specifications

Item	Specification
Width	100 mm (4 in.)
Depth	275 mm (10.8 in.)
Vibration	5 g, 10…500 Hz
Operating temp	0…50 °C (derate above 45 °C)
Certifications	UL, c-UL, CE, RCM, TÜV STO SIL3/PL-e

4. Typical 4-Axis System Bill of Materials

Qty	Part Number	Description
1	2094-BC04-M03-S	Integrated Axis Module (IAM)
3	2094-BM03-S	Axis Module (AM), 30 A peak
1	2094-PR8	8-slot power rail
1*	2094-BSP2	External shunt resistor (*if needed)
1	1756-L8x + 1756-M08SE	Controller & SERCOS module

5. Competitive Advantages – Why Engineers Still Choose Kinetix 6000

· Shared DC-bus recycles braking energy to neighbouring axes; no line-regen required on most machines.

· Peak-Enhance firmware delivers 200 % torque for 2 s without oversizing the supply—ideal for indexers and fast quill moves.

· Uniform 100 mm width covers 4 A…49 A modules; one spare fits all, keeping panels clean.

· Full Studio 5000 integration: one-click auto-tune, load observer, single-tag access to torque, velocity and position loops.

6. Price & Availability

Stocked in Xiamen with a 12-month warranty.
Need it tomorrow? Confirm PO & payment before 4 p.m. China time and we ship DHL the same day.

For quotations,contact May:
E-mail: ab@mooreplc.com | WhatsApp: +86-18106909650 | WeChat: dcsfcs

Let our 20 years of Allen-Bradley motion experience shorten your commissioning calendar.
